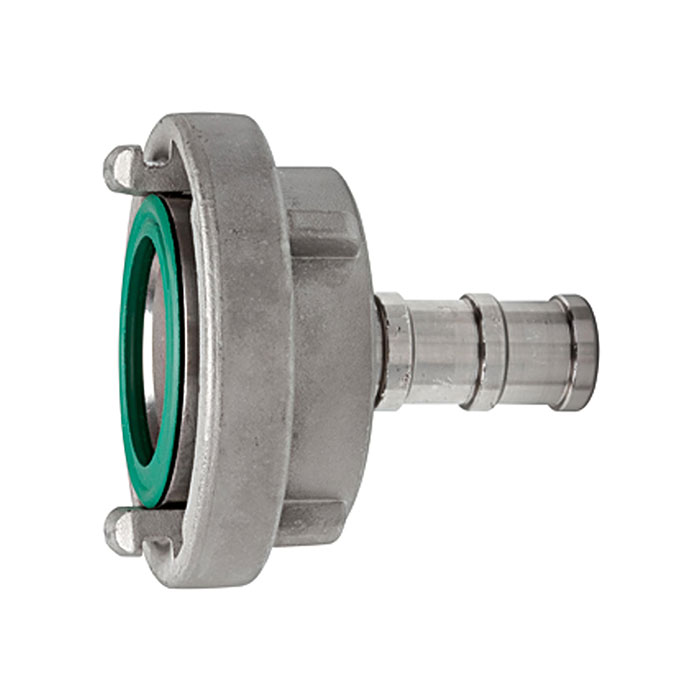

RIEGLER Storz coupling, Hose supports, rotating, Storz size 65, I.D. 38
Type number: 3401.8138
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Storz-Kupplung, Schlauchstutzen, drehbar, ES V4A, Storz-Größe 65, LW 38, Betriebsdruck max. 16 bar, Betriebstemp. -15°C bis 200°C
| Sealing material | FKM |
| Max. operating pressure | 16 bar |
| Material | Stainless steel V4A |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 200 °C |
| Length | 90 mm |
| Storz size | 65 |
| Bend spacing | 81 mm |
| Hose LW | 38 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
