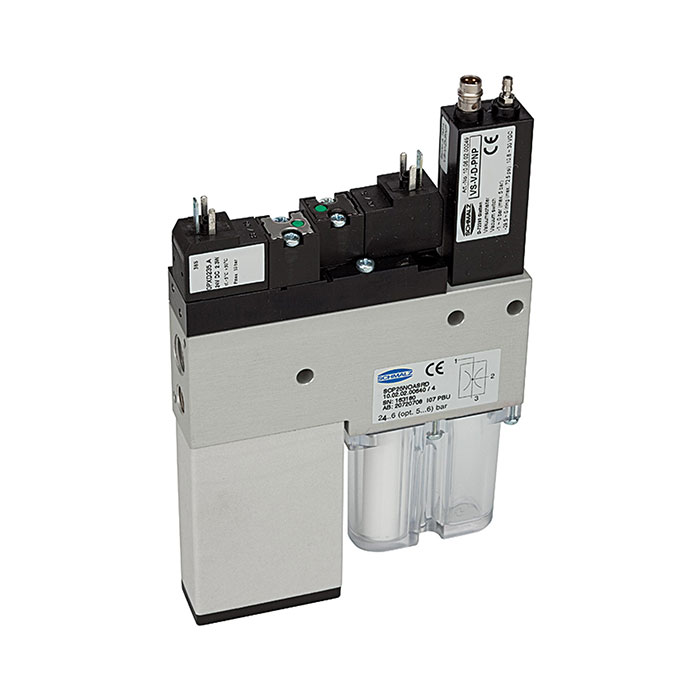

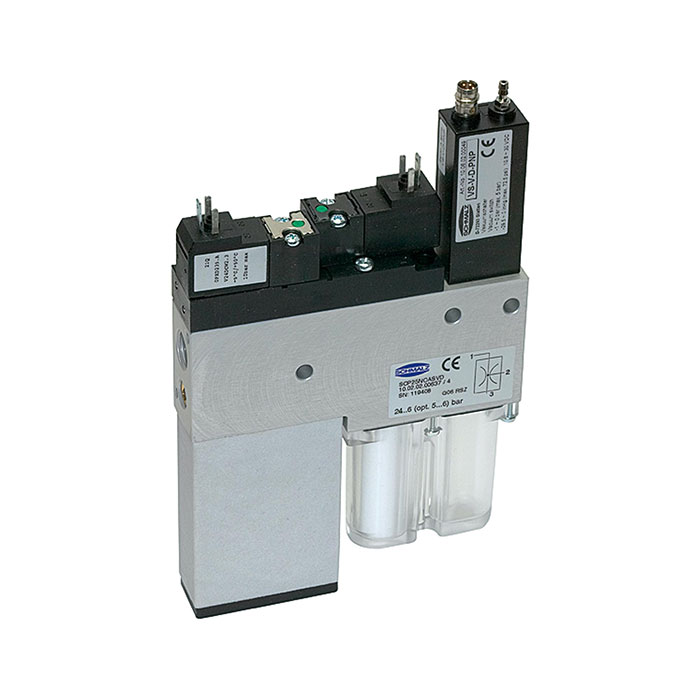

RIEGLER Compact ejector »CP« Air block control, Nozzle size 1.5 mm
Type number: CP 151
EAN: 4047322201704
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Compact ejector "CP" digital vacuum switch, air-saving control, nozzle size 1.5 mm, NC, compressed air/vacuum connection G 1/8 IG
| Max. operating pressure | 5 bar |
| Base body | Anodized aluminum |
| Integrated | NC blow-off valve, filter, silencer, non-return valve |
| Height | 164 mm |
| Width | 20 mm |
| Length | 72 mm |
| Nozzle size | 1.5 mm |
| Compressed air connection | G 1/8 FEMALE THREAD |
| Vacuum connection | G 1/8 FEMALE THREAD |
| Rest position suction valve | NC |
| Suction capacity max. | 65 l/min |
| Air consumption suction | 117 l/min |
| Weight | 275 g |
| Class name | MAX |
