RIEGLER Compact ejector »CP« Air block control, Nozzle size 2 mm
Type number: CP 202
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Compact ejector "CP" Air-saving control for vacuum technology, max. 6 bar - Type CP 202
The RIEGLER compact ejector "CP" air-saving control, nozzle size 2.0 mm, NO generates or uses vacuum for handling and automation tasks. The operating pressure range is 5 bar to 6 bar. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Operating pressure min. | 5 bar |
| Max. operating pressure | 6 bar |
| Base body | Anodized aluminum |
| Integrated | NC blow-off valve, filter, silencer, non-return valve |
| Height | 168 mm |
| Width | 22 mm |
| Length | 113 mm |
| Nozzle size | 2 mm |
| Compressed air connection | G 1/4 FEMALE THREAD |
| Vacuum connection | G 3/8 IG |
| Rest position suction valve | NO |
| Suction capacity max. | 116 l/min |
| Air consumption suction | 190 l/min |
| Weight | 465 g |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

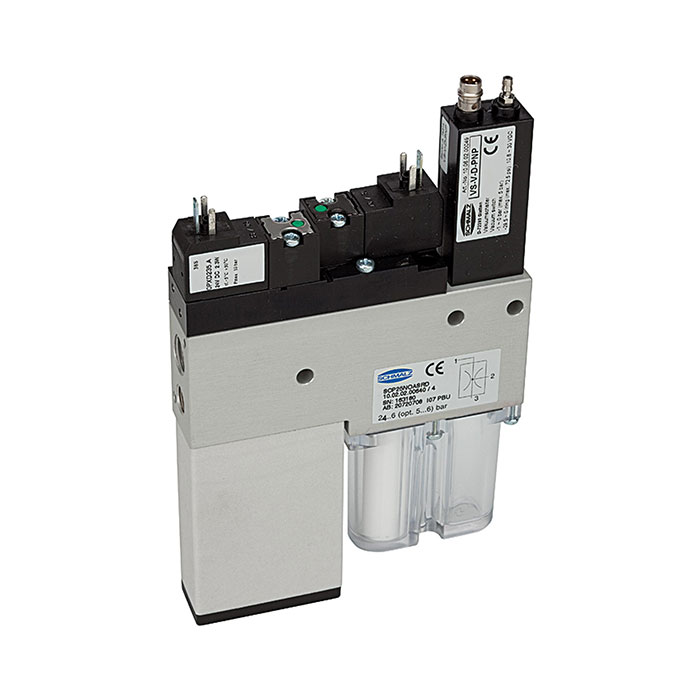

![[108403] RIEGLER Compact ejector »CP« Air block control, Nozzle size 1.5 mm](/web/image/product.template/192300/image_128/%5B108403%5D%20RIEGLER%20Compact%20ejector%20%C2%BBCP%C2%AB%20Air%20block%20control%2C%20Nozzle%20size%201.5%20mm?unique=ce28d14)
|
Type number: CP 151 |
1,207.53 € | |

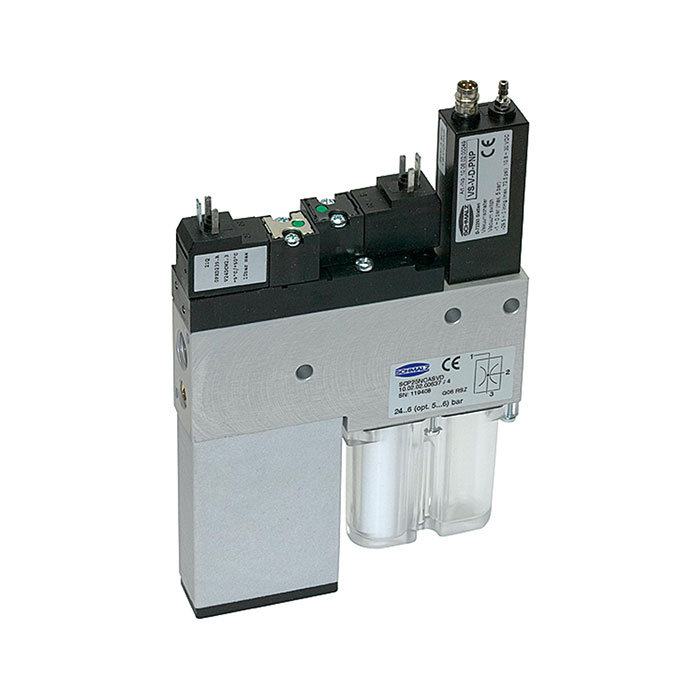

![[108404] RIEGLER Compact ejector »CP« Air block control, Nozzle size 1.5 mm](/web/image/product.template/192301/image_128/%5B108404%5D%20RIEGLER%20Compact%20ejector%20%C2%BBCP%C2%AB%20Air%20block%20control%2C%20Nozzle%20size%201.5%20mm?unique=f754495)
|
Type number: CP 152 |
1,207.53 € | |
![[108408] RIEGLER Compact ejector »CP« Air block control, Nozzle size 2.5 mm](/web/image/product.template/192305/image_128/%5B108408%5D%20RIEGLER%20Compact%20ejector%20%C2%BBCP%C2%AB%20Air%20block%20control%2C%20Nozzle%20size%202.5%20mm?unique=5a8cb61)
|
Type number: CP 252 |
1,317.32 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

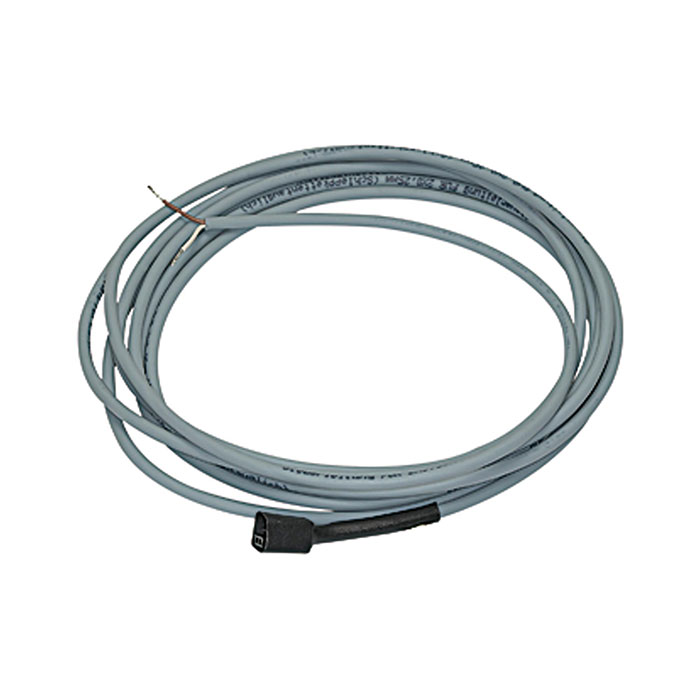

![[108415] RIEGLER Connection plug for solenoid valve for »Mini pump«,»Compact Pump«](/web/image/product.template/192312/image_128/%5B108415%5D%20RIEGLER%20Connection%20plug%20for%20solenoid%20valve%20for%20%C2%BBMini%20pump%C2%AB%2C%C2%BBCompact%20Pump%C2%AB?unique=a6c117b)
|
Type number: ASK 5001 |
34.71 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

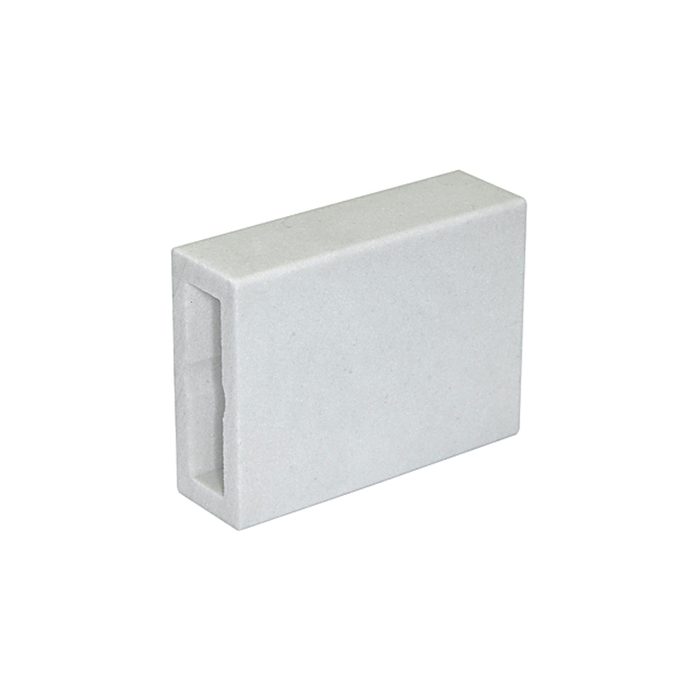

![[108417] RIEGLER Replacement silencer for compact ejector type »Compact pump«](/web/image/product.template/192314/image_128/%5B108417%5D%20RIEGLER%20Replacement%20silencer%20for%20compact%20ejector%20type%20%C2%BBCompact%20pump%C2%AB?unique=3a67b45)
|
Type number: ASK 651 |
28.56 € | |
