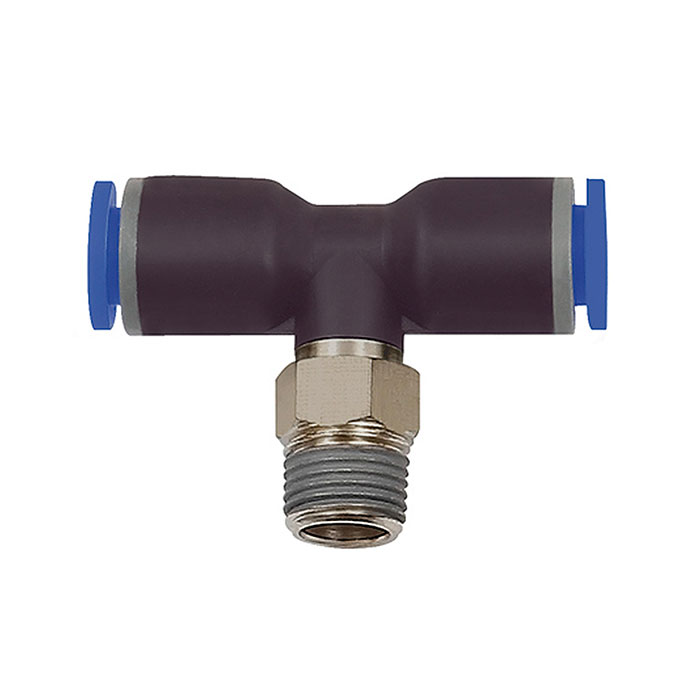

RIEGLER Push-in T-fitting »Blue Series«, rotating, R 1/2 o.
Type number: 132.012-16
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
T-Steckverschraubung »Blaue Serie«, drehbar, R 1/2 a., für Schlauch-Außen-Ø 16 mm, pmax kurzzeitig 15 bar, Kunststoff/MS vern.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/2 |
| SW | 21 mm |
| for hose outer Ø | 16 mm |
| L1 | 69 mm |
| L2 | 39.2 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109506] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 1/2 o.](/web/image/product.template/178432/image_128/%5B109506%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-2%20o.?unique=4b14add)
|
Type number: 132.012-10 |
4.49 € | |
![[109505] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 1/2 o.](/web/image/product.template/178431/image_128/%5B109505%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-2%20o.?unique=6a820c0)
|
Type number: 132.012-8 |
2.69 € | |
![[109504] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 1/2 o.](/web/image/product.template/178430/image_128/%5B109504%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-2%20o.?unique=61ec5a0)
|
Type number: 132.012-6 |
2.69 € | |
![[135649] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 1/2 o.](/web/image/product.template/206093/image_128/%5B135649%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-2%20o.?unique=5b65593)
|
Type number: 132.012-14 |
5.07 € | |
![[109507] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 1/2 o.](/web/image/product.template/178433/image_128/%5B109507%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-2%20o.?unique=9b9679d)
|
Type number: 132.012-12 |
5.15 € | |
![[109496] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 1/4 o.](/web/image/product.template/178422/image_128/%5B109496%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-4%20o.?unique=baaf703)
|
Type number: 132.014-8 |
2.52 € | |
![[109497] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 1/4 o.](/web/image/product.template/178423/image_128/%5B109497%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-4%20o.?unique=03d6a95)
|
Type number: 132.014-10 |
3.19 € | |
![[109498] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 1/4 o.](/web/image/product.template/178424/image_128/%5B109498%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-4%20o.?unique=ff5d4cc)
|
Type number: 132.014-12 |
4.13 € | |
![[109494] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 1/4 o.](/web/image/product.template/178420/image_128/%5B109494%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-4%20o.?unique=13d9790)
|
Type number: 132.014-4 |
1.55 € | |
![[109495] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 1/4 o.](/web/image/product.template/178421/image_128/%5B109495%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-4%20o.?unique=688b30e)
|
Type number: 132.014-6 |
2.17 € | |
![[109491] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 1/8 o.](/web/image/product.template/178417/image_128/%5B109491%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-8%20o.?unique=7ade5ec)
|
Type number: 132.018-4 |
1.74 € | |
![[109492] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 1/8 o.](/web/image/product.template/178418/image_128/%5B109492%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-8%20o.?unique=33edd98)
|
Type number: 132.018-6 |
2.00 € | |
![[109493] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 1/8 o.](/web/image/product.template/178419/image_128/%5B109493%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-8%20o.?unique=3d36647)
|
Type number: 132.018-8 |
2.55 € | |
![[109503] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 3/8 o.](/web/image/product.template/178429/image_128/%5B109503%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%203-8%20o.?unique=670af29)
|
Type number: 132.038-16 |
4.84 € | |
![[109502] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 3/8 o.](/web/image/product.template/178428/image_128/%5B109502%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%203-8%20o.?unique=7e7dc6f)
|
Type number: 132.038-12 |
4.13 € | |
![[109501] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 3/8 o.](/web/image/product.template/178427/image_128/%5B109501%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%203-8%20o.?unique=88f82b0)
|
Type number: 132.038-10 |
3.42 € | |
![[109500] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 3/8 o.](/web/image/product.template/178426/image_128/%5B109500%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%203-8%20o.?unique=3f65a75)
|
Type number: 132.038-8 |
2.64 € | |
![[135648] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 3/8 o.](/web/image/product.template/206092/image_128/%5B135648%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%203-8%20o.?unique=c9dd262)
|
Type number: 132.038-14 |
4.55 € | |
![[109499] RIEGLER Push-in T-fitting »Blue Series«, rotating, R 3/8 o.](/web/image/product.template/178425/image_128/%5B109499%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%203-8%20o.?unique=d719ade)
|
Type number: 132.038-6 |
1.80 € | |
