RIEGLER Straight push-in bulkhead connector »Blue Series«, Self-locking

Price:

13.32 €

RIEGLER Straight push-in bulkhead connector »Blue Series«, Self-locking
RIEGLER Straight push-in bulkhead connector »Blue Series«, Self-locking
8.37 € 8.37 €
RIEGLER Straight push-in bulkhead connector »click-clock«, M13x1
RIEGLER Straight push-in bulkhead connector »click-clock«, M13x1
2.67 € 2.67 €

RIEGLER Straight push-in bulkhead connector »Blue Series«, Self-locking

https://www.filcom-technik.de/web/image/product.template/179126/image_1920?unique=d1776fe

Type number: 230.024-12

EAN: 4047322390491

13.32 € 13.32 EUR 13.32 € VAT Included

18.65 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

110215

EAN :

4047322390491

Weight :

0.11 kg

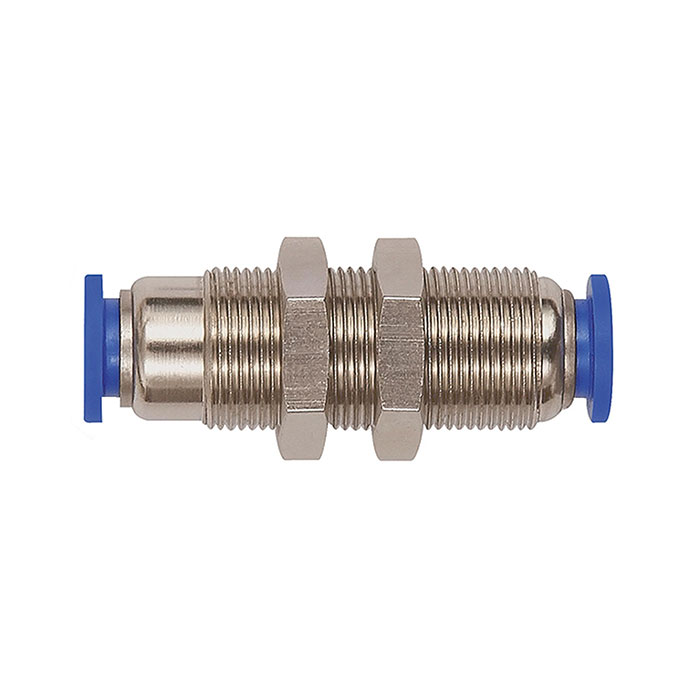

Ger. bulkhead connector "Blue Series", self-closing, M22x1.0, for external Ø 12 mm, pmax. 10 bar, plastic/MS nickel-plated

Temperature range min. 0 °C
Temperature range max. 60 °C
Medium Compressed air
Sealing material NBR
Series Blue series
Working pressure min. 0 bar
Working pressure max. 10 bar
Material Plastic or nickel-plated brass
Area of application Compressed air systems
Solder ring Blue plastic
Recommended hose PU or PA (nylon)
Thread M22x1.0
SW 27 mm
Function Self-locking
for hose outer Ø 12 mm
L1 68.7 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification none
Class name EASY
