RIEGLER Straight push-in bulkhead connector »Blue Series«, Self-locking
Type number: 230.020-10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Ger. bulkhead connector "Blue Series", self-closing, M20x1.5, for external Ø 10 mm, pmax. 10 bar, plastic/MS nickel-plated
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M20x1.5 |
| SW | 24 mm |

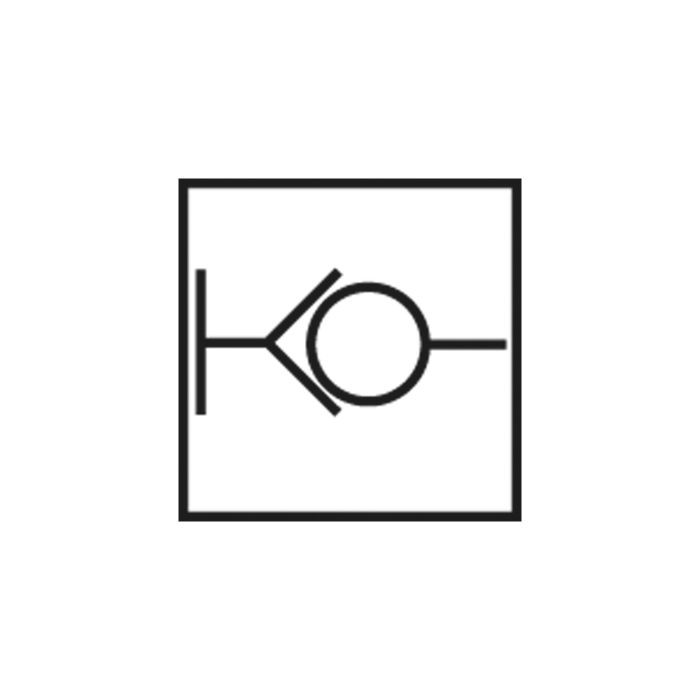

| Function | Self-locking |
| for hose outer Ø | 10 mm |

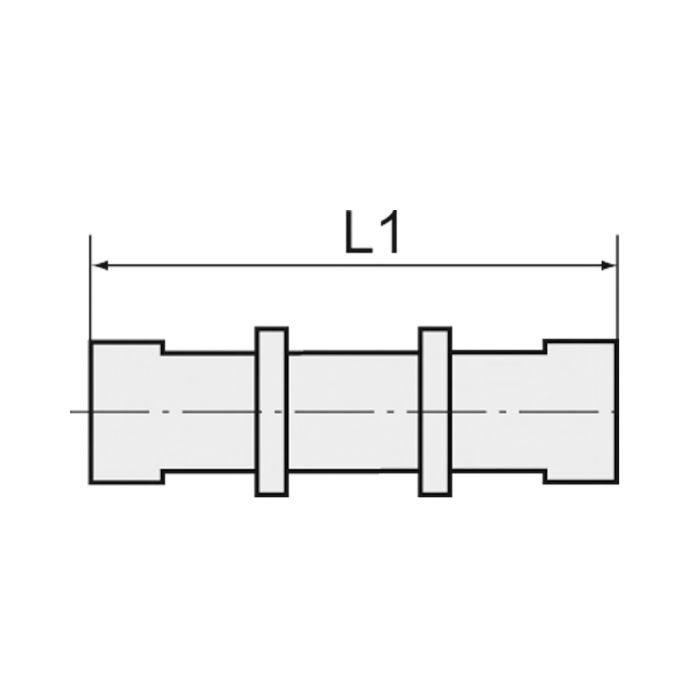

| L1 | 58.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110211] RIEGLER Straight push-in bulkhead connector »Blue Series«, Self-locking](/web/image/product.template/179122/image_128/%5B110211%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking?unique=0e826fd)
|
Type number: 230.012-4 |
4.49 € | |
![[110212] RIEGLER Straight push-in bulkhead connector »Blue Series«, Self-locking](/web/image/product.template/179123/image_128/%5B110212%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking?unique=dec21be)
|
Type number: 230.014-6 |
4.84 € | |

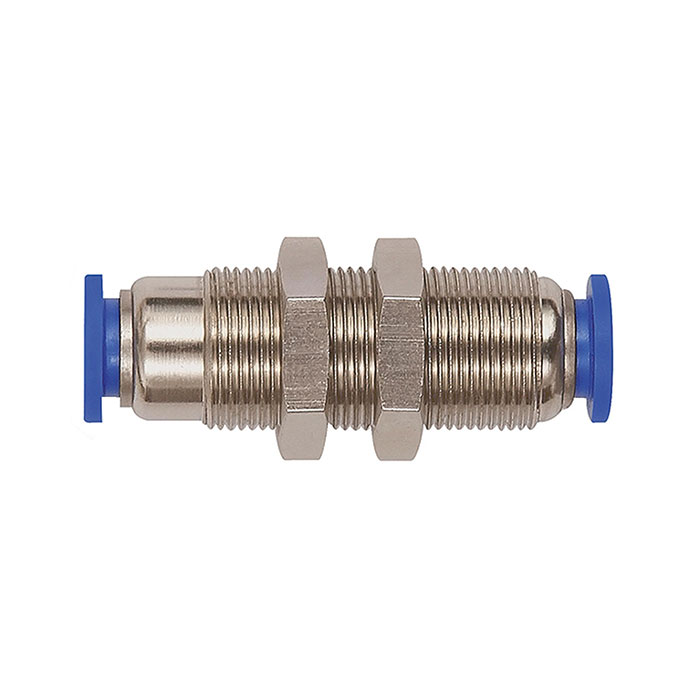

![[110213] RIEGLER Straight push-in bulkhead connector »Blue Series«, Self-locking](/web/image/product.template/179124/image_128/%5B110213%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking?unique=c766a81)
|
Type number: 230.016-8 |
5.18 € | |
![[110215] RIEGLER Straight push-in bulkhead connector »Blue Series«, Self-locking](/web/image/product.template/179126/image_128/%5B110215%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking?unique=bc2faf2)
|
Type number: 230.024-12 |
8.87 € | |
