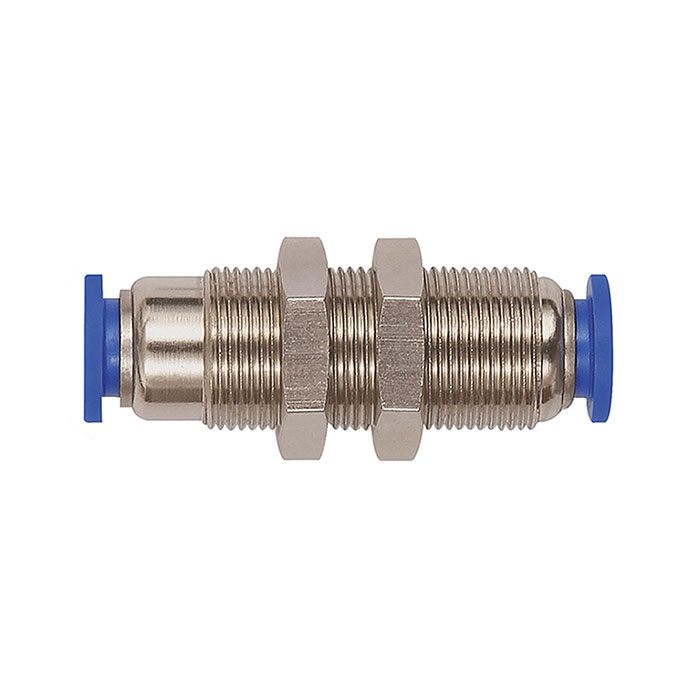

RIEGLER Straight push-in bulkhead connector »Blue Series«, Self-locking
Type number: 230.012-4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight bulkhead connector "Blue series" made of plastic or nickel-plated brass - type 230.012-4
The RIEGLER straight bulkhead push-in connector "Blue series" self-closing. M12x1.0 connects compressed air and pneumatic lines safely and tightly. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is 0 bar to 10 bar. The temperature range is between 0 °C and 60 °C. Connection thread M12x1.0 - suitable for common industrial standards. Suitable for compressed air. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M12x1.0 |
| SW | 14 mm |

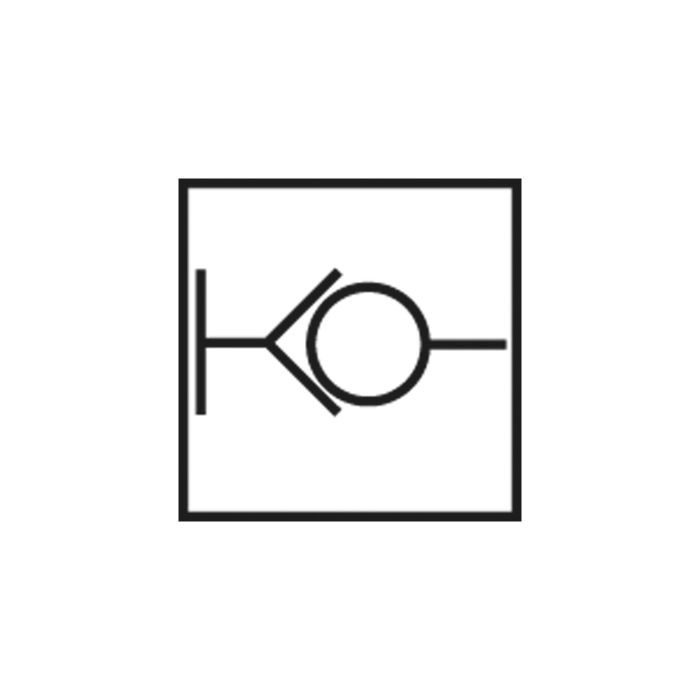

| Function | Self-locking |
| for hose outer Ø | 4 mm |

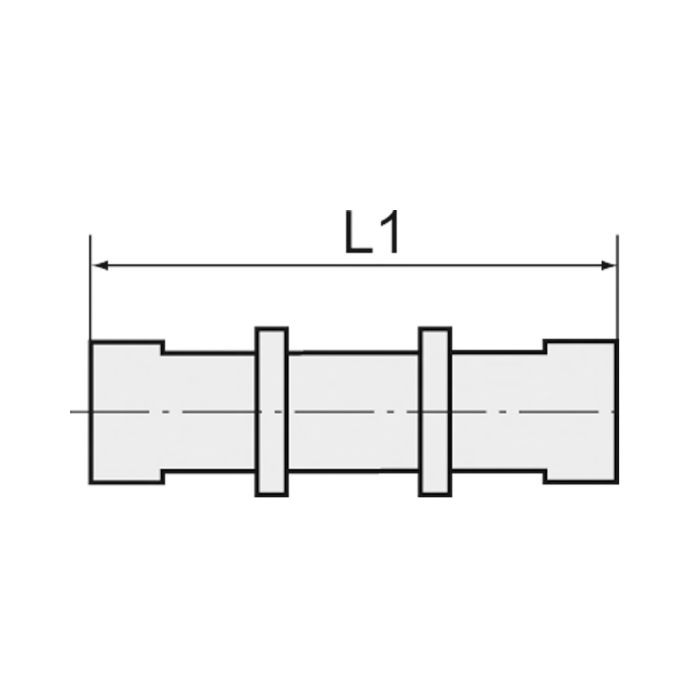

| L1 | 43.4 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
