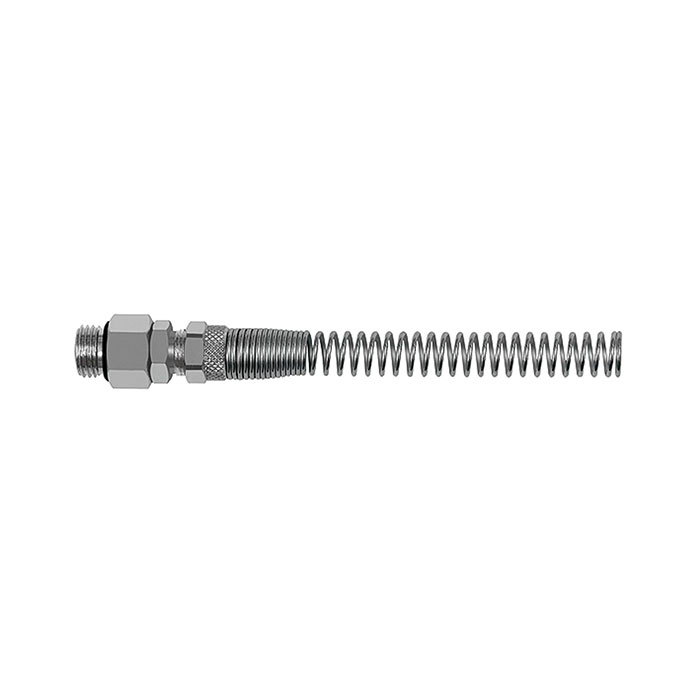

RIEGLER Straight screw-in fitting, Kink protection spring rotating
Type number: 18.118-8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight screw-in fitting made of nickel-plated brass, for pneumatic installation - Type 18.118-8
The RIEGLER straight screw-in fitting, anti-kink protection, swivel. G1/8 a. SW14 connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of nickel-plated brass. Designed for a maximum operating pressure of 18 bar. The operating temperature is between -20 °C and 80 °C. G 1/8 connection thread - suitable for common industry standards. Simple assembly and disassembly for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Working pressure max. | 18 bar |
| Material | Nickel-plated brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Thread | G 1/8 |
| SW 1 | 14 mm |
| SW 2 | 13 mm |
| for hose | 8/6 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| O-ring | NBR |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110658] RIEGLER Straight screw-in fitting, Kink protection spring rotating](/web/image/product.template/181588/image_128/%5B110658%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%20rotating?unique=6a6ff55)
|
Type number: 18.118-6 |
3.28 € | |
![[110660] RIEGLER Straight screw-in fitting, Kink protection spring rotating](/web/image/product.template/181590/image_128/%5B110660%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%20rotating?unique=b84c924)
|
Type number: 18.114-6 |
3.09 € | |
![[110661] RIEGLER Straight screw-in fitting, Kink protection spring rotating](/web/image/product.template/181591/image_128/%5B110661%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%20rotating?unique=08b91aa)
|
Type number: 18.114-8 |
3.34 € | |
![[110662] RIEGLER Straight screw-in fitting, Kink protection spring rotating](/web/image/product.template/181592/image_128/%5B110662%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%20rotating?unique=deca42c)
|
Type number: 18.114-10 |
4.49 € | |
![[110663] RIEGLER Straight screw-in fitting, Kink protection spring rotating](/web/image/product.template/181593/image_128/%5B110663%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%20rotating?unique=47ef9cb)
|
Type number: 18.138-12 |
5.57 € | |
