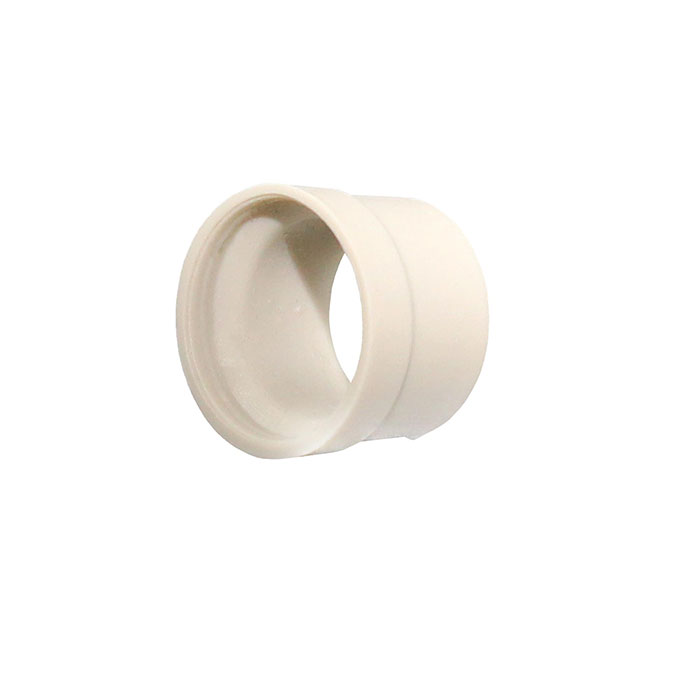

RIEGLER Clamping ring, for hose 9/12 mm, PP
Type number: 170.04
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Clamping ring for pneumatic installation - type 170.04
The RIEGLER clamping ring, for hose 9/12 mm, PP connects compressed air hoses and pipes quickly and securely by simply screwing them in. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Screw fitting body | Polyamide (PA) |
| Clamping ring | Polypropylene (PP) |
| Knurled nut | Polypropylene (PP) |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 60 °C | 1 bar |
| for hose | 9/12 mm |
| L1 | 11 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110824] RIEGLER Clamping ring, for hose 4/6 mm, PP](/web/image/product.template/181754/image_128/%5B110824%5D%20RIEGLER%20Clamping%20ring%2C%20for%20hose%204-6%20mm%2C%20PP?unique=94506af)
|
Type number: 170.01 |
0.20 € | |
![[110825] RIEGLER Clamping ring, for hose 6/8 mm, PP](/web/image/product.template/181755/image_128/%5B110825%5D%20RIEGLER%20Clamping%20ring%2C%20for%20hose%206-8%20mm%2C%20PP?unique=4277aba)
|
Type number: 170.02 |
0.35 € | |
![[110826] RIEGLER Clamping ring, for hose 8/10 mm, PP](/web/image/product.template/181756/image_128/%5B110826%5D%20RIEGLER%20Clamping%20ring%2C%20for%20hose%208-10%20mm%2C%20PP?unique=e571aa3)
|
Type number: 170.03 |
0.39 € | |
