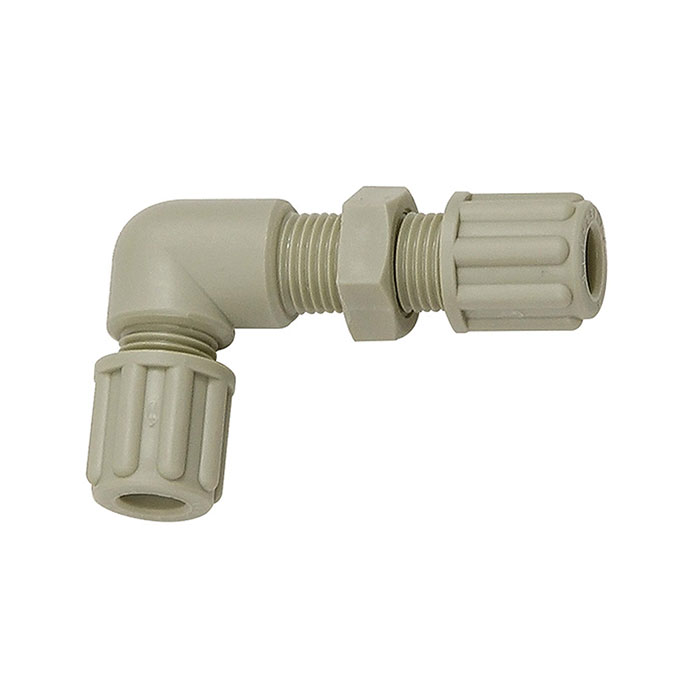

RIEGLER Angled bulkhead connector, M18x1.5, for hose 9/12 mm, AF 24, PP
Type number: 140.44-PP
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Angled bulkhead connector made of polypropylene (PP), for pneumatic installation, M18x1.5 - type 140.44-PP
The RIEGLER elbow bulkhead connector, M18x1.5, for hose 9/12 mm, SW 24, PP connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of polypropylene (PP). The operating temperature is between 0 °C and 90 °C. Connection thread M18x1.5 - suitable for common industry standards. Easy installation and removal for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Material | Polypropylene (PP) |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 90 °C |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 90 °C | 2.5 bar |
| Thread | M18x1.5 |
| SW | 24 mm |
| for hose | 9/12 mm |
| L1 | 67 mm |
| L2 | 43 mm |
| Class name | FLEX |
