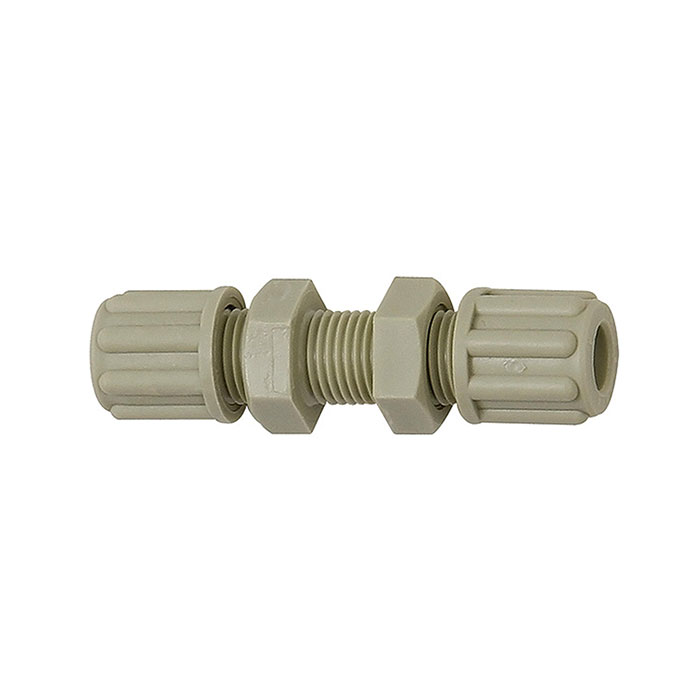

RIEGLER Straight bulkhead connector, M14x1.5, for hose 6/8 mm, AF 19, PP
Type number: 140.32-PP
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight bulkhead connector made of polypropylene (PP), for pneumatic installation, M14x1.5 - type 140.32-PP
The RIEGLER straight bulkhead connector, M14x1.5, for hose 6/8 mm, SW 19, PP connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of polypropylene (PP). The operating temperature is between 0 °C and 90 °C. Connection thread M14x1.5 - suitable for common industry standards. Easy installation and removal for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Material | Polypropylene (PP) |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 90 °C |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 90 °C | 2.5 bar |
| Thread | M14x1.5 |
| SW | 19 mm |
| for hose | 6/8 mm |
| L1 | 64 mm |
| Class name | FLEX |
