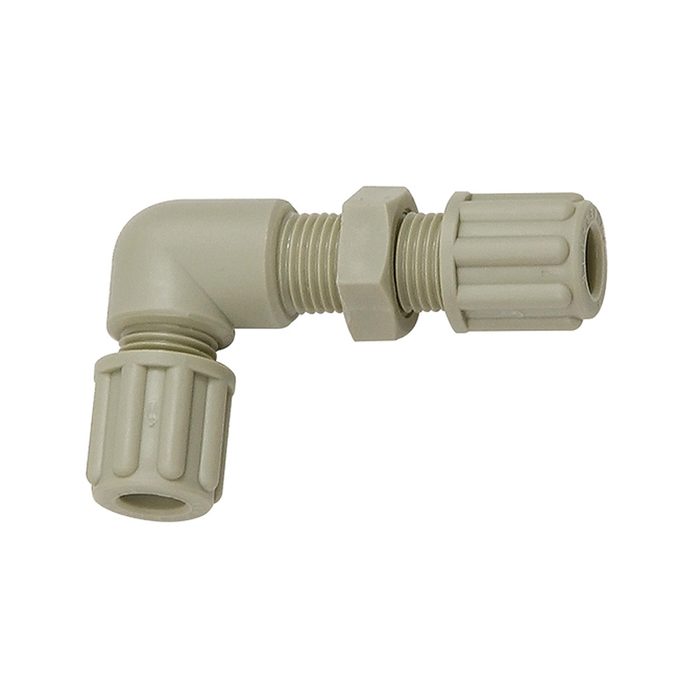

RIEGLER Angled bulkhead connector, M10x1, for hose 4/6 mm, AF 14, PP
Type number: 140.41-PP
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Angled bulkhead connection made of polypropylene (PP), for pneumatic installation, M10x1.0 - type 140.41-PP
The RIEGLER elbow bulkhead connector, M10x1.0, for hose 4/6 mm, SW 14, PP connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of polypropylene (PP). The operating temperature is between 0 °C and 90 °C. M10x1.0 connection thread - suitable for common industry standards. Easy installation and removal for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Material | Polypropylene (PP) |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 90 °C |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 90 °C | 2.5 bar |
| Thread | M10x1.0 |
| SW | 14 mm |
| for hose | 4/6 mm |
| L1 | 43 mm |
| L2 | 25 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
