RIEGLER Angled bulkhead connector, M16x1.5, for hose 8/10 mm, AF 22, PP
Type number: 140.43-PP
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Angled bulkhead connector made of polypropylene (PP), for pneumatic installation, M16x1.5 - type 140.43-PP
The RIEGLER elbow bulkhead connector, M16x1.5, for hose 8/10 mm, SW 22, PP connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of polypropylene (PP). The operating temperature is between 0 °C and 90 °C. Connection thread M16x1.5 - suitable for common industry standards. Easy installation and removal for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Material | Polypropylene (PP) |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 90 °C |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 90 °C | 2.5 bar |
| Thread | M16x1.5 |
| SW | 22 mm |
| for hose | 8/10 mm |
| L1 | 58 mm |
| L2 | 36 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110896] RIEGLER Angled bulkhead connector, M10x1, for hose 4/6 mm, AF 14, PP](/web/image/product.template/181826/image_128/%5B110896%5D%20RIEGLER%20Angled%20bulkhead%20connector%2C%20M10x1%2C%20for%20hose%204-6%20mm%2C%20AF%2014%2C%20PP?unique=fc8b7dc)
|
Type number: 140.41-PP |
5.96 € | |

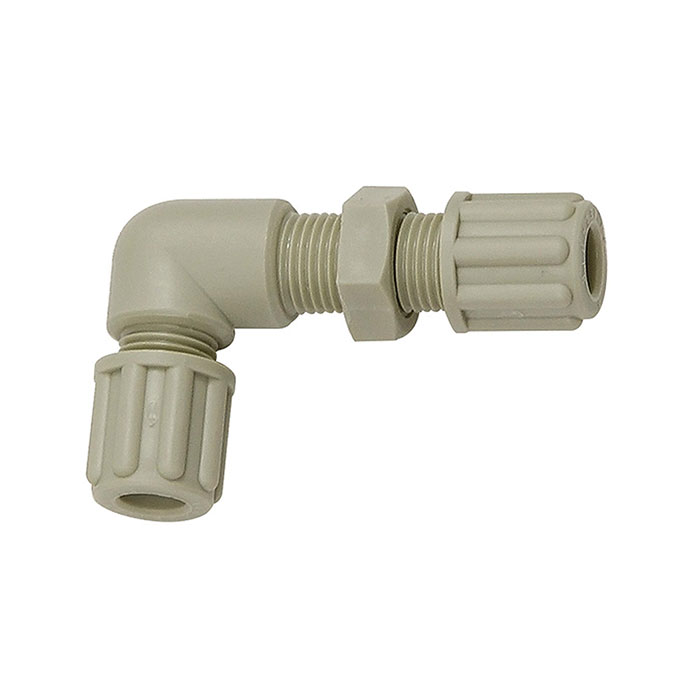

![[110897] RIEGLER Angled bulkhead connector, M14x1.5, for hose 6/8 mm, AF 19, PP](/web/image/product.template/181827/image_128/%5B110897%5D%20RIEGLER%20Angled%20bulkhead%20connector%2C%20M14x1.5%2C%20for%20hose%206-8%20mm%2C%20AF%2019%2C%20PP?unique=cbd2d45)
|
Type number: 140.42-PP |
10.61 € | |
![[110899] RIEGLER Angled bulkhead connector, M18x1.5, for hose 9/12 mm, AF 24, PP](/web/image/product.template/181829/image_128/%5B110899%5D%20RIEGLER%20Angled%20bulkhead%20connector%2C%20M18x1.5%2C%20for%20hose%209-12%20mm%2C%20AF%2024%2C%20PP?unique=ff225aa)
|
Type number: 140.44-PP |
20.86 € | |
