RIEGLER Locking screw, Exterior hexagonal and flange, G 1/2
Type number: 252.113-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw plug made of stainless steel 1.4571, for pipeline construction, max. 60 bar - Type 252.113-ES
The RIEGLER screw plug, external hexagon, collar, G 1/2, SW 19, ES 1.4571 is a high-quality accessory from the RIEGLER range. The housing is made of stainless steel 1.4571. Designed for a maximum operating pressure of 60 bar. Connection thread G 1/2 external hexagon - suitable for common industry standards. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Working pressure max. | 60 bar |
| Material | Stainless steel 1.4571 |
| Operating temperature max. | 150 °C |
| Thread | G 1/2 external hexagon |
| SW | 19 mm |
| L1 | 26 mm |
| L2 | 14 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

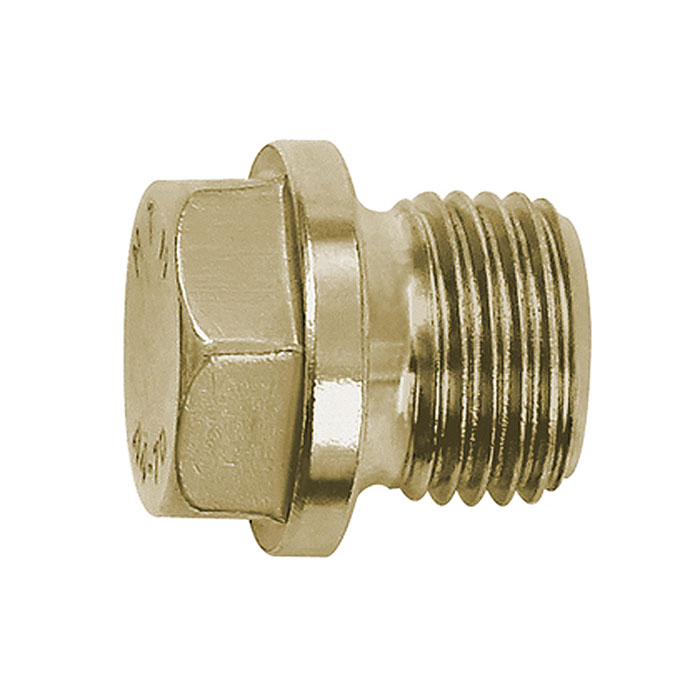

![[111672] RIEGLER Locking screw, Exterior hexagonal and flange, G 1](/web/image/product.template/183593/image_128/%5B111672%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%20and%20flange%2C%20G%201?unique=de7d337)
|
Type number: 252.115-ES |
21.00 € | |
![[111668] RIEGLER Locking screw, Exterior hexagonal and flange, G 1/4](/web/image/product.template/183589/image_128/%5B111668%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%20and%20flange%2C%20G%201-4?unique=13c2698)
|
Type number: 252.111-ES |
5.38 € | |
![[111667] RIEGLER Locking screw, Exterior hexagonal and flange, G 1/8](/web/image/product.template/183588/image_128/%5B111667%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%20and%20flange%2C%20G%201-8?unique=a7bec68)
|
Type number: 252.110-ES |
4.24 € | |
![[111671] RIEGLER Locking screw, Exterior hexagonal and flange, G 3/4](/web/image/product.template/183592/image_128/%5B111671%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%20and%20flange%2C%20G%203-4?unique=8c935de)
|
Type number: 252.114-ES |
14.80 € | |
![[111669] RIEGLER Locking screw, Exterior hexagonal and flange, G 3/8](/web/image/product.template/183590/image_128/%5B111669%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%20and%20flange%2C%20G%203-8?unique=2c54a32)
|
Type number: 252.112-ES |
6.49 € | |
