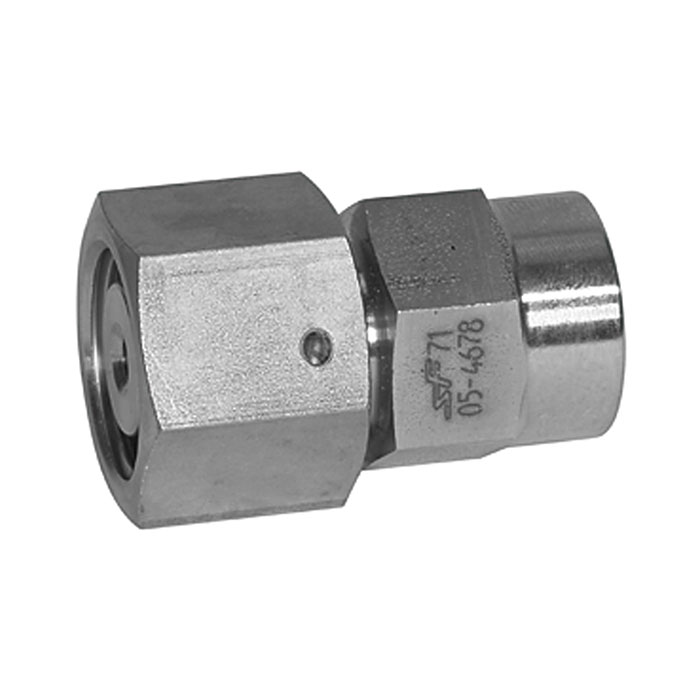

RIEGLER Pressure gauge- screw connection, Sealing cone, G 1/4 i.
Type number: ES 581
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mano connection fitting made of stainless steel 1.4571 (DIN 2353), for pneumatic installation - type ES 581
The RIEGLER Mano connection fitting, sealing cone, G 1/4 i., ES 1.4571 Ø6mm connects compressed air and pneumatic lines securely and tightly. The housing is made of stainless steel 1.4571 (DIN 2353). Connection thread G 1/4 - suitable for common industry standards. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Material | Stainless steel 1.4571 (DIN 2353) |
| Thread | G 1/4 |
| Tube outer Ø | 6 mm |
| PN | 315 bar |
| Female nut thread | M12x1.5 |
| L1 | 35.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

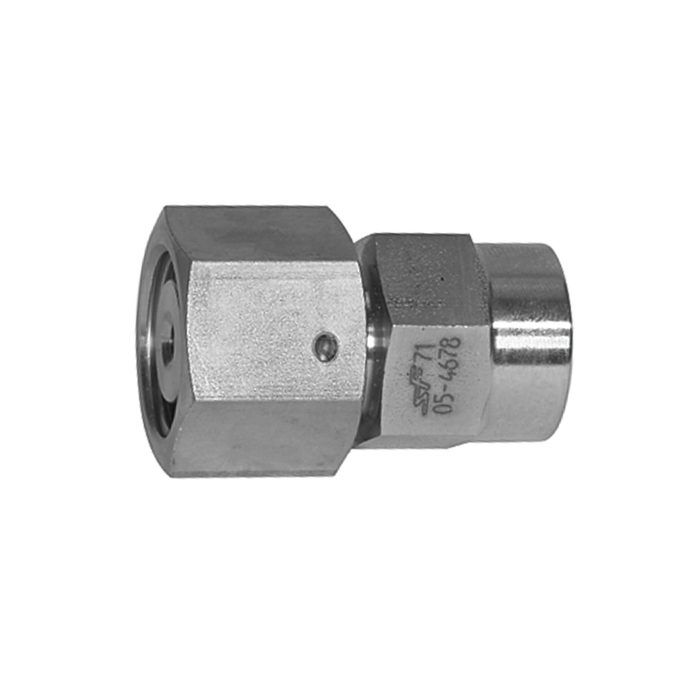

![[112368] RIEGLER Pressure gauge- screw connection, Sealing cone, G 1/4 i.](/web/image/product.template/184263/image_128/%5B112368%5D%20RIEGLER%20Pressure%20gauge-%20screw%20connection%2C%20Sealing%20cone%2C%20G%201-4%20i.?unique=a58b157)
|
Type number: ES 582 |
23.74 € | |
![[112369] RIEGLER Pressure gauge- screw connection, Sealing cone, G 1/4 i.](/web/image/product.template/184264/image_128/%5B112369%5D%20RIEGLER%20Pressure%20gauge-%20screw%20connection%2C%20Sealing%20cone%2C%20G%201-4%20i.?unique=bca9b45)
|
Type number: ES 583 |
35.84 € | |
![[112370] RIEGLER Pressure gauge- screw connection, Sealing cone, G 1/4 i.](/web/image/product.template/184265/image_128/%5B112370%5D%20RIEGLER%20Pressure%20gauge-%20screw%20connection%2C%20Sealing%20cone%2C%20G%201-4%20i.?unique=718d328)
|
Type number: ES 584 |
37.70 € | |
