RIEGLER Clamping jaw clamp (W1), 18 - 20 mm, PU 10 pcs.
Type number: SBS-19
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

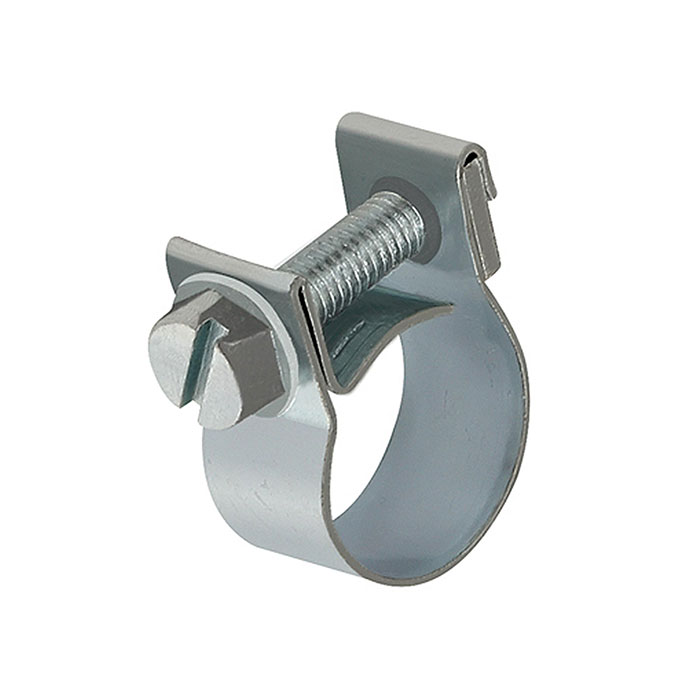

RIEGLER Clamping jaw clamp made of steel, bright zinc-plated (W1), for compressed air distribution - type SBS-19
The RIEGLER clamping jaw clamp, bright zinc-plated steel (W1), nominal ø 19 mm, 9 mm (1 pack = 10 pcs.) reliably secures hoses on grommets and nozzles. The housing is made of bright zinc-plated steel (W1). Secure fixing prevents slipping under pressure.
Field of application
Typical areas of application: Hose fastening in compressed air and water systems.
| Material | Steel, bright galvanized (W1) |
| Clamping range min. | 18 mm |
| Clamping range max. | 20 mm |
| Bandwidth | 9 mm |
| Nominal Ø | 19 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
