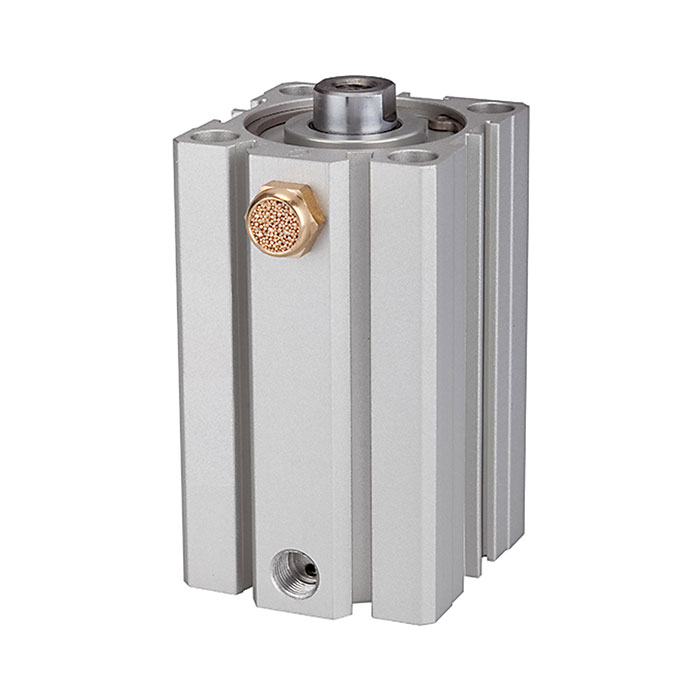

RIEGLER Short stroke cyl., single-acting, Piston Ø 50, Stroke 25, G 1/4
Type number: 12.EM.50025
EAN: 4047322329026
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Short-stroke cylinder "ASQ" single-acting, solenoid, internal thread, piston Ø 50, stroke 25, connection G 1/4, working pressure 2-10 bar, temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ASQ series |
| Working pressure min. | 2 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 50 mm |
| Design | 6 |
| Function | single-acting |
| Stroke | 25 mm |
| Piston rod Ø | 20 mm |
| Piston rods IG | M10x1.5 |
| Connection | G 1/4 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Starting position | retracted without pressure |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
