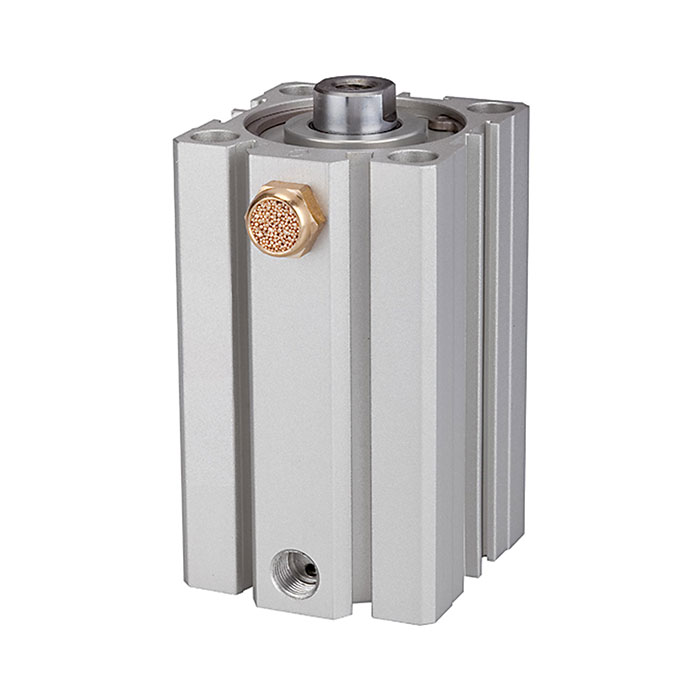

RIEGLER Short stroke cyl., single-acting, Piston Ø 50, Stroke 25, G 1/4
Type number: 12.EM.50025
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Short-stroke cylinder "ASQ" single-acting for automation technology, max. 10 bar, G 1/4 - Type 12.EM.50025
The RIEGLER short-stroke cylinder "ASQ" single-acting, piston Ø 50, stroke 25, G 1/4 offers compact pneumatic drive solutions for confined installation spaces. with NBR seals. The operating pressure range is 2 bar to 10 bar. The temperature range is between -20 °C and 70 °C. Connection thread G 1/4 - suitable for common industry standards. With piston Ø 50 mm, stroke 25 mm, hard chrome-plated steel piston rod - for powerful linear actuator solutions. Space-saving design for confined installation spaces.
Field of application
Typical areas of application: Compact systems, special machine construction and handling systems.
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ASQ series |
| Working pressure min. | 2 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 50 mm |
| Design | 6 |
| Function | single-acting |
| Stroke | 25 mm |
| Piston rod Ø | 20 mm |
| Piston rods IG | M10x1.5 |
| Connection | G 1/4 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Starting position | retracted without pressure |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[115199] RIEGLER Short stroke cyl., single-acting, Piston Ø 50, Stroke 10, G 1/4](/web/image/product.template/198746/image_128/%5B115199%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2010%2C%20G%201-4?unique=2834339)
|
Type number: 12.EM.50010 |
60.38 € | |
![[115200] RIEGLER Short stroke cyl., single-acting, Piston Ø 50, Stroke 15, G 1/4](/web/image/product.template/198747/image_128/%5B115200%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2015%2C%20G%201-4?unique=6da1145)
|
Type number: 12.EM.50015 |
61.02 € | |
![[115201] RIEGLER Short stroke cyl., single-acting, Piston Ø 50, Stroke 20, G 1/4](/web/image/product.template/198748/image_128/%5B115201%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2020%2C%20G%201-4?unique=c8b3799)
|
Type number: 12.EM.50020 |
61.68 € | |
![[115203] RIEGLER Short stroke cyl., single-acting, Piston Ø 50, Stroke 30, G 1/4](/web/image/product.template/198750/image_128/%5B115203%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2030%2C%20G%201-4?unique=1f87232)
|
Type number: 12.EM.50030 |
74.66 € | |
![[115198] RIEGLER Short stroke cyl., single-acting, Piston Ø 50, Stroke 5, G 1/4](/web/image/product.template/198745/image_128/%5B115198%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%205%2C%20G%201-4?unique=8f0fdc3)
|
Type number: 12.EM.50005 |
59.73 € | |
![[115208] RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 25, G 1/4](/web/image/product.template/198755/image_128/%5B115208%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2025%2C%20G%201-4?unique=9727a48)
|
Type number: 12.EM.63025 |
79.02 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[115528] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, REED sensor](/web/image/product.template/200287/image_128/%5B115528%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20REED%20sensor?unique=2d33cf2)
|
Type number: 235.101 |
9.25 € | |
![[115529] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200288/image_128/%5B115529%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=a78f38a)
|
Type number: 235.102 |
21.25 € | |
![[115530] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200289/image_128/%5B115530%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=db416ff)
|
Type number: 235.103 |
18.86 € | |

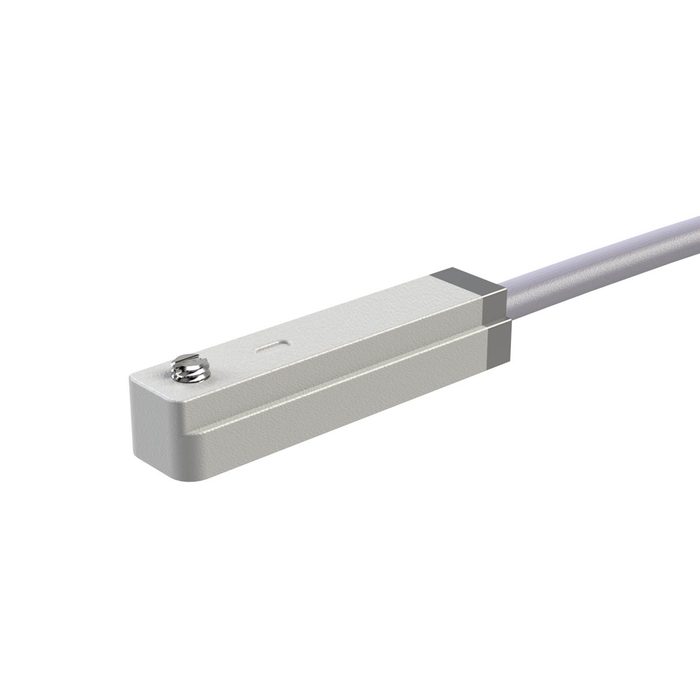

![[115531] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200290/image_128/%5B115531%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=aaa6f4b)
|
Type number: 235.104 |
21.25 € | |
![[115532] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200291/image_128/%5B115532%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=2f86589)
|
Type number: 235.105 |
18.86 € | |

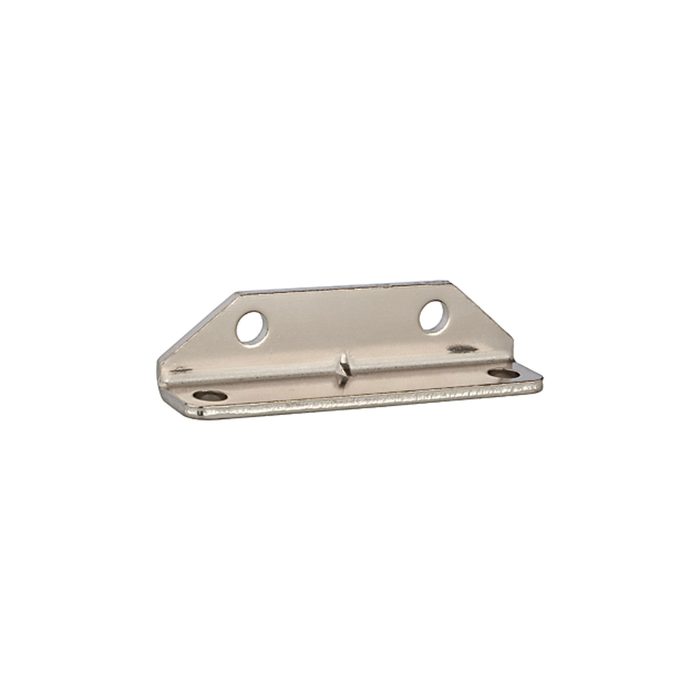

![[115872] RIEGLER Foot fastening »LB« for short stroke cylinder, Piston Ø 50](/web/image/product.template/200605/image_128/%5B115872%5D%20RIEGLER%20Foot%20fastening%20%C2%BBLB%C2%AB%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2050?unique=4c1eada)
|
Type number: 437.506 |
5.55 € | |

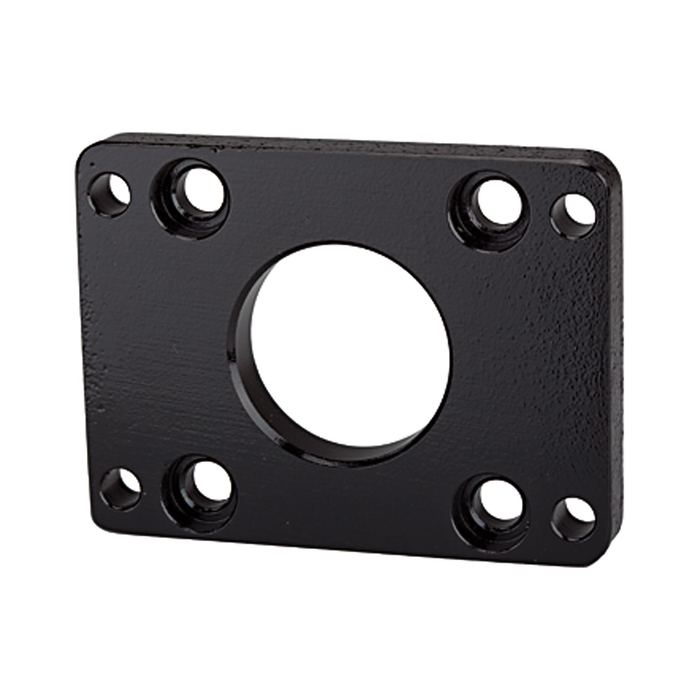

![[115882] RIEGLER Flange fastening »FA« for short stroke cylinder, Piston Ø 50](/web/image/product.template/200615/image_128/%5B115882%5D%20RIEGLER%20Flange%20fastening%20%C2%BBFA%C2%AB%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2050?unique=8f7026a)
|
Type number: 437.516 |
7.31 € | |

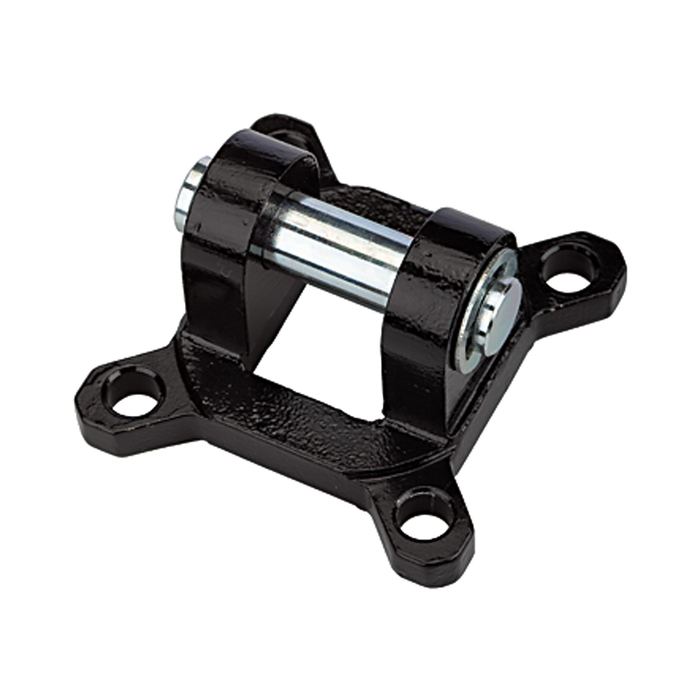

![[115892] RIEGLER Pivoting fork fastening »CB« for short stroke cyl., Piston Ø 50](/web/image/product.template/200625/image_128/%5B115892%5D%20RIEGLER%20Pivoting%20fork%20fastening%20%C2%BBCB%C2%AB%20for%20short%20stroke%20cyl.%2C%20Piston%20%C3%98%2050?unique=a17b482)
|
Type number: 437.526 |
10.57 € | |

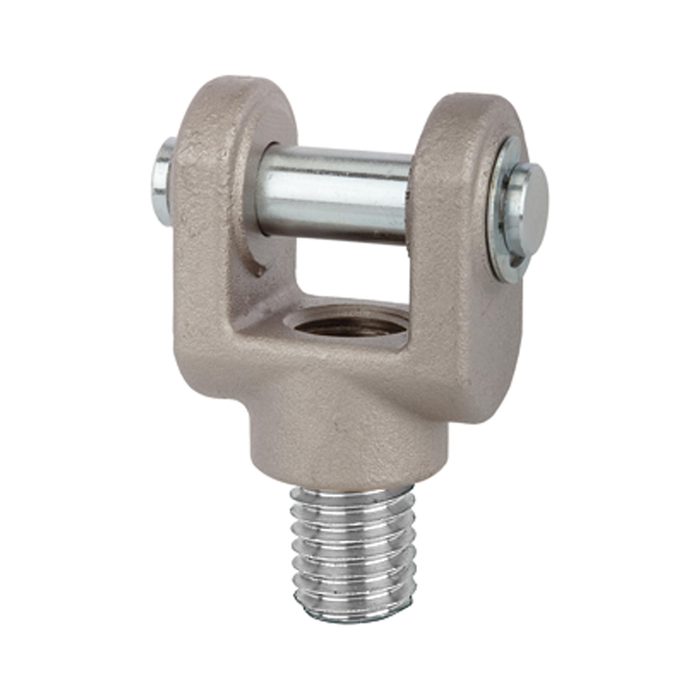

![[115907] RIEGLER Fork head »Y« for short stroke cylinder, Piston Ø 50-63](/web/image/product.template/200640/image_128/%5B115907%5D%20RIEGLER%20Fork%20head%20%C2%BBY%C2%AB%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2050-63?unique=f3b46cf)
|
Type number: 438.10D63CQ |
23.48 € | |

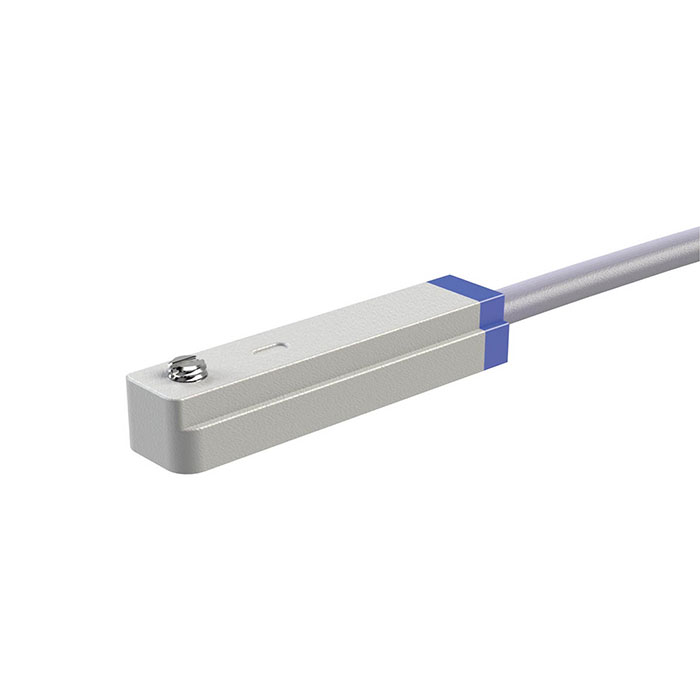

![[116943] RIEGLER Sensor »CS1« Kurzhubzyl. »ACQ«/»ASQ«, REED, 2-Draht, M8, NO](/web/image/product.template/267777/image_128/%5B116943%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20Kurzhubzyl.%20%C2%BBACQ%C2%AB-%C2%BBASQ%C2%AB%2C%20REED%2C%202-Draht%2C%20M8%2C%20NO?unique=51ed757)
|
