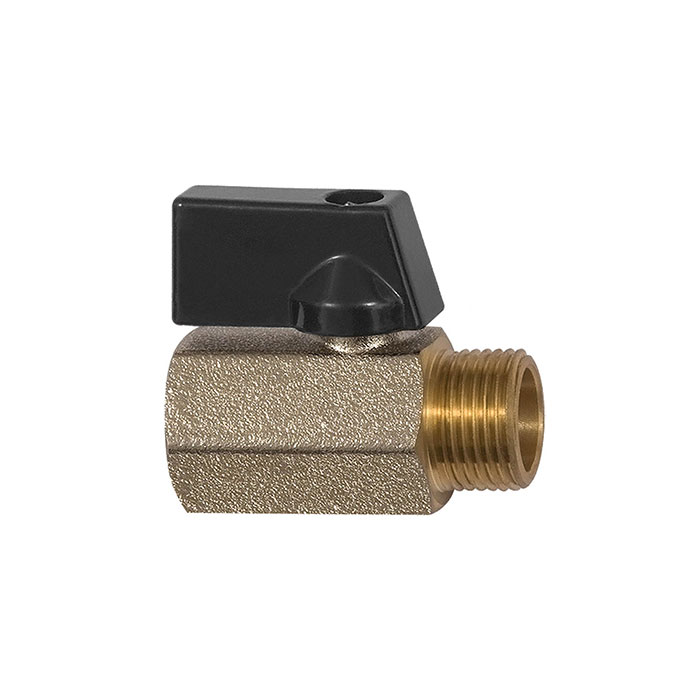

RIEGLER Mini ball valve »valve line«, nickel-plated brass, G 3/8 IT/ET
Type number: 373.22-E
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mini ball valve "valve line", MS nickel-plated, rotary handle, medium/ambient temp. -10 °C to 90 °C, G 3/8 female/male, DN 10, PN max. 10 bar
| Housing | Nickel-plated brass |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 90 °C |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR |
| Rotary handle | Aluminum |
| Thread | G 3/8 IG/AG |
| DN | 10 |
| SW | 20 mm |
| B | 28 mm |
| L | 40.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Thread material | Brass bright |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[115729] RIEGLER Mini ball valve »valve line«, nickel-plated brass, G 1/2 IT](/web/image/product.template/200464/image_128/%5B115729%5D%20RIEGLER%20Mini%20ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20nickel-plated%20brass%2C%20G%201-2%20IT?unique=1f39060)
|
Type number: 373.03-E |
6.63 € | |
![[115730] RIEGLER Mini ball valve »valve line«, nickel-plated brass, G 1/4 IT/ET](/web/image/product.template/200465/image_128/%5B115730%5D%20RIEGLER%20Mini%20ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20nickel-plated%20brass%2C%20G%201-4%20IT-ET?unique=3e5ba26)
|
Type number: 373.11-E |
6.27 € | |

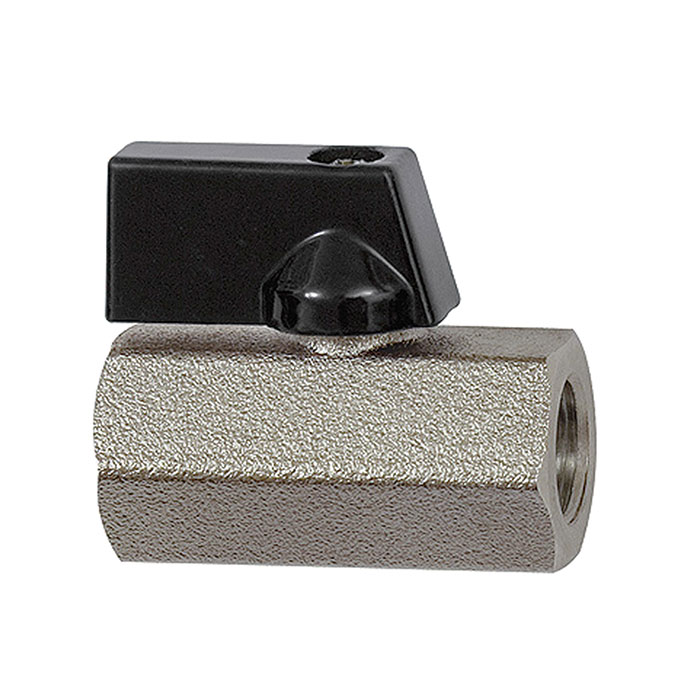

![[115728] RIEGLER Mini ball valve »valve line«, nickel-plated brass, G 3/8 IT](/web/image/product.template/200463/image_128/%5B115728%5D%20RIEGLER%20Mini%20ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20nickel-plated%20brass%2C%20G%203-8%20IT?unique=7382ac8)
|
Type number: 373.02-E |
6.27 € | |
