RIEGLER T-reducer ver. MS, "sharkbite" f. pipe-ø1 54 mm, f. pipe-ø2 28 mm
Type number: TRVMN5428
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER T-reducing valve MS made of brass, for compressed air distribution, max. 20 bar - Type TRVMN5428
The RIEGLER T-reducer ver. MS, "sharkbite" f. pipe-ø1 54 mm, f. pipe-ø2 28 mm conducts compressed air and media flexibly or permanently installed. The housing is made of brass. The operating pressure range is -0.95 bar to 20 bar. The operating temperature is between -20 °C and 65 °C. Flexible and pressure-resistant.
Field of application
Typical areas of application: Compressed air distribution and media lines.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 20 bar |
| Material | Brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 65 °C |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| for pipe outer Ø1 | 28 mm |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Stand Material Compliance | 45047 |
| for pipe outer Ø | 54 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[117079] RIEGLER T-reducer ver. MS, "sharkbite" for pipe ø1 54 mm, for pipe ø2 35 mm](/web/image/product.template/274797/image_128/%5B117079%5D%20RIEGLER%20T-reducer%20ver.%20MS%2C%20%22sharkbite%22%20for%20pipe%20%C3%B81%2054%20mm%2C%20for%20pipe%20%C3%B82%2035%20mm?unique=747158c)
|
Type number: TRVMN5435 |
117.18 € | |
![[117080] RIEGLER T-reducer ver. MS, "sharkbite" f. pipe-ø1 54 mm, f. pipe-ø2 42 mm](/web/image/product.template/274798/image_128/%5B117080%5D%20RIEGLER%20T-reducer%20ver.%20MS%2C%20%22sharkbite%22%20f.%20pipe-%C3%B81%2054%20mm%2C%20f.%20pipe-%C3%B82%2042%20mm?unique=fbb4fa1)
|
Type number: TRVMN5442 |
121.46 € | |

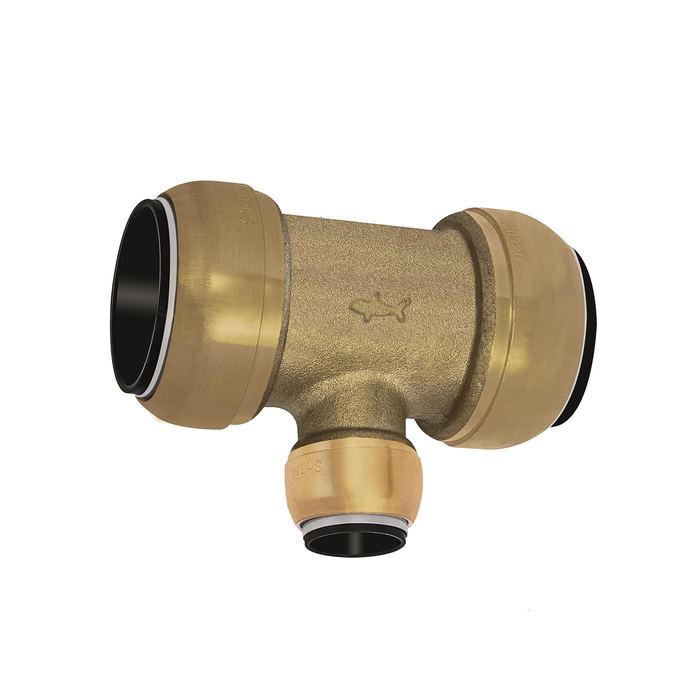

![[117070] RIEGLER T-reducer ver. MS, "sharkbite" f. tube-ø1 22 mm, f. tube-ø2 15 mm](/web/image/product.template/274788/image_128/%5B117070%5D%20RIEGLER%20T-reducer%20ver.%20MS%2C%20%22sharkbite%22%20f.%20tube-%C3%B81%2022%20mm%2C%20f.%20tube-%C3%B82%2015%20mm?unique=214d45b)
|
Type number: TRVMN2215 |
16.66 € | |
![[117071] RIEGLER T-reducer ver. MS, "sharkbite" f. tube-ø1 28 mm, f. tube-ø2 15 mm](/web/image/product.template/274789/image_128/%5B117071%5D%20RIEGLER%20T-reducer%20ver.%20MS%2C%20%22sharkbite%22%20f.%20tube-%C3%B81%2028%20mm%2C%20f.%20tube-%C3%B82%2015%20mm?unique=c5ae13e)
|
Type number: TRVMN2815 |
23.29 € | |
![[117072] RIEGLER T-reducer ver. MS, "sharkbite" f. tube-ø1 28 mm, f. tube-ø2 22 mm](/web/image/product.template/274790/image_128/%5B117072%5D%20RIEGLER%20T-reducer%20ver.%20MS%2C%20%22sharkbite%22%20f.%20tube-%C3%B81%2028%20mm%2C%20f.%20tube-%C3%B82%2022%20mm?unique=e9e65d4)
|
Type number: TRVMN2822 |
25.24 € | |
![[117073] RIEGLER T-reducer ver. MS, "sharkbite" f. tube-ø1 35 mm, f. tube-ø2 22 mm](/web/image/product.template/274791/image_128/%5B117073%5D%20RIEGLER%20T-reducer%20ver.%20MS%2C%20%22sharkbite%22%20f.%20tube-%C3%B81%2035%20mm%2C%20f.%20tube-%C3%B82%2022%20mm?unique=7de3717)
|
Type number: TRVMN3522 |
58.44 € | |
![[117074] RIEGLER T-reducer ver. MS, "sharkbite" f. tube-ø1 35 mm, f. tube-ø2 28 mm](/web/image/product.template/274792/image_128/%5B117074%5D%20RIEGLER%20T-reducer%20ver.%20MS%2C%20%22sharkbite%22%20f.%20tube-%C3%B81%2035%20mm%2C%20f.%20tube-%C3%B82%2028%20mm?unique=5044bcd)
|
Type number: TRVMN3528 |
59.80 € | |
![[117075] RIEGLER T-reducer ver. MS, "sharkbite" f. tube-ø1 42 mm, f. tube-ø2 22 mm](/web/image/product.template/274793/image_128/%5B117075%5D%20RIEGLER%20T-reducer%20ver.%20MS%2C%20%22sharkbite%22%20f.%20tube-%C3%B81%2042%20mm%2C%20f.%20tube-%C3%B82%2022%20mm?unique=ef2678b)
|
Type number: TRVMN4222 |
79.81 € | |
![[117076] RIEGLER T-reducer ver. MS, "sharkbite" f. tube-ø1 42 mm, f. tube-ø2 28 mm](/web/image/product.template/274794/image_128/%5B117076%5D%20RIEGLER%20T-reducer%20ver.%20MS%2C%20%22sharkbite%22%20f.%20tube-%C3%B81%2042%20mm%2C%20f.%20tube-%C3%B82%2028%20mm?unique=00ad3ec)
|
Type number: TRVMN4228 |
81.21 € | |
![[117077] RIEGLER T-reducer ver. MS, "sharkbite" f. tube-ø1 42 mm, f. tube-ø2 35 mm](/web/image/product.template/274795/image_128/%5B117077%5D%20RIEGLER%20T-reducer%20ver.%20MS%2C%20%22sharkbite%22%20f.%20tube-%C3%B81%2042%20mm%2C%20f.%20tube-%C3%B82%2035%20mm?unique=9ffef59)
|
Type number: TRVMN4235 |
87.96 € | |
