RIEGLER T-connector, brass, "sharkbite", for outer pipe ø 15 mm
Type number: TVMN15
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
T-Verbinder, Messing, »sharkbite«, für Rohr-Außen-ø 15 mm
| Working pressure min. | -0.95 bar |
| Working pressure max. | 20 bar |
| Material | Brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 65 °C |
| L1 | 68 mm |
| L2 | 34 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| for pipe outer Ø | 15 mm |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Stand Material Compliance | 45047 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[117087] RIEGLER T-connector, brass, "sharkbite", for external pipe ø 54 mm](/web/image/product.template/274804/image_128/%5B117087%5D%20RIEGLER%20T-connector%2C%20brass%2C%20%22sharkbite%22%2C%20for%20external%20pipe%20%C3%B8%2054%20mm?unique=ec9bf75)
|
Type number: TVMN54 |
128.48 € | |

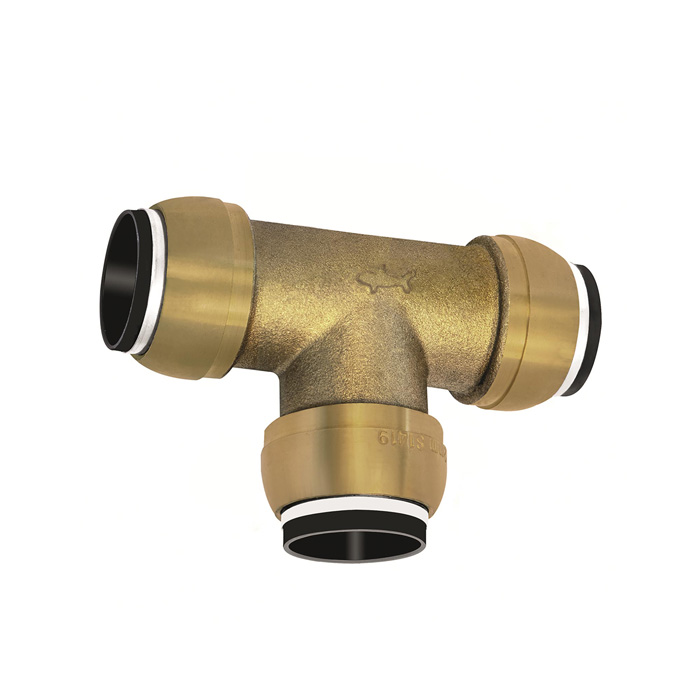

![[117082] RIEGLER T-connector, brass, "sharkbite", for outer pipe ø 22 mm](/web/image/product.template/274800/image_128/%5B117082%5D%20RIEGLER%20T-connector%2C%20brass%2C%20%22sharkbite%22%2C%20for%20outer%20pipe%20%C3%B8%2022%20mm?unique=9aba146)
|
