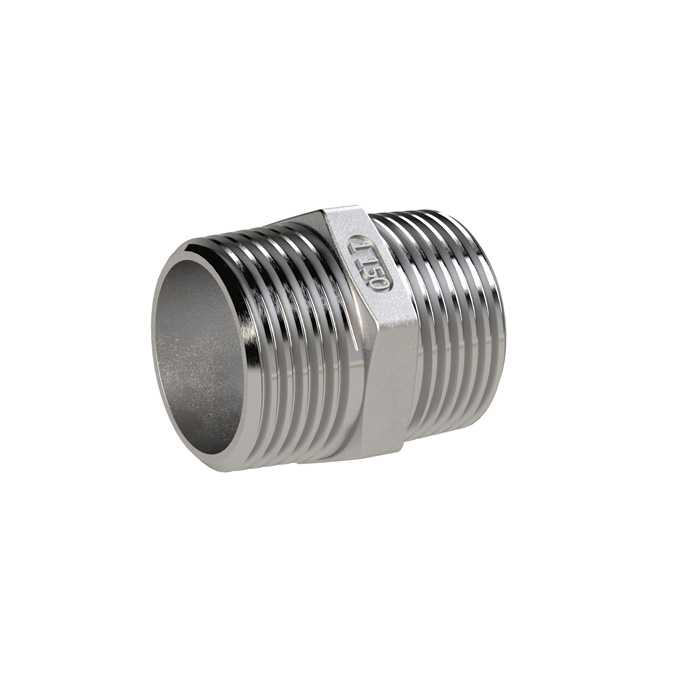

RIEGLER Double threaded nipple, R 3, AG, SW 91, ES 1.4408
Type number: DGNR3ES4408
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Double threaded nipple for pipeline construction, max. 20 bar, R 3 - Type DGNR3ES4408
The RIEGLER double threaded nipple, R 3, AG, SW 91, ES 1.4408 connects two female threaded connections of the same or different sizes. Designed for a maximum operating pressure of 20 bar. Connection thread R 3 (DIN EN ISO 7-1) - suitable for common industry standards. Universal adapter for different thread sizes.
Field of application
Typical areas of application: Pipeline construction, compressed air distribution and sanitary installations.
| Working pressure max. | 20 bar |
| Thread | R 3 |
| Thread standard | DIN EN ISO 7-1 |
| Execution | Octagon |
| L1 | 75 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | 14408 |
| Class name | STAINLESS STEEL |
| Stand Material Compliance | 45139 |
| SW | 91 mm |
