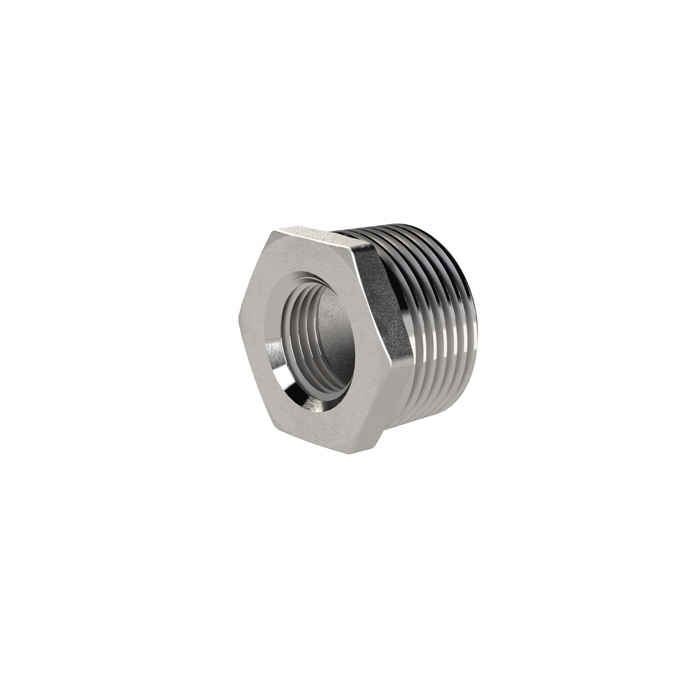

RIEGLER Reducing nipple, R 2 AG, Rp 1 1/2 IG, SW 61, ES 1.4408
Type number: REDNR2112ES4408
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Reducing nipple for pipeline construction, max. 20 bar - Type REDNR2112ES4408
The RIEGLER reducing nipple, R 2 AG, Rp 1 1/2 IG, SW 61, ES 1.4408 connects two threaded connections of different sizes. Designed for a maximum operating pressure of 20 bar. Flexible thread adjustment.
Field of application
Typical areas of application: Compressed air, water and process installation.
| Working pressure max. | 20 bar |
| SW | 61 mm |
| Thread standard | DIN EN ISO 7-1 |
| Execution | Octagon |
| L1 | 31 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | Rp 1 1/2 |
| External thread | R 2 |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | 14408 |
| Class name | STAINLESS STEEL |
| Stand Material Compliance | 45139 |
