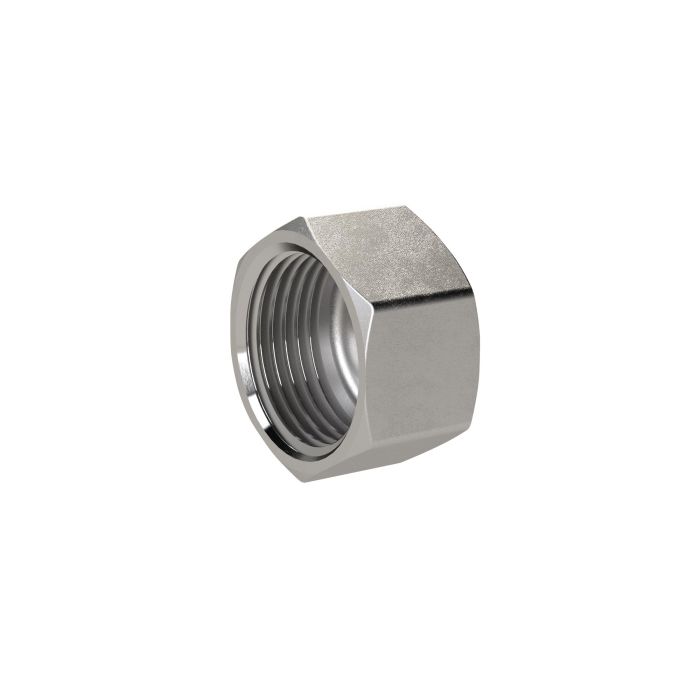

RIEGLER Sealing cap, hexagon G 1 1/4, IG, SW 46, ES 1.4408
Type number: VKG114ES4408SK
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Sealing cap for pipeline construction, max. 20 bar, G 1 1/4 - Type VKG114ES4408SK
The RIEGLER sealing cap, hexagon G 1 1/4, IG, SW 46, ES 1.4408 closes open threaded connections pressure-tight. Designed for a maximum operating pressure of 20 bar. Connection thread G 1 1/4 (DIN EN ISO 228-1) - suitable for common industry standards. Pressure-tight closure for open threaded connections.
Field of application
Typical areas of application: Protection of open connections against contamination.
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Working pressure max. | 20 bar |
| Execution | Hexagon |
| Exception | no exception |
| CAS No. SVHC 1 | none CAS No. |
| Thread | G 1 1/4 |
| Thread standard | DIN EN ISO 228-1 |
| Class name | STAINLESS STEEL |
| L1 | 23.7 mm |
| Material identification | 14408 |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| SW | 46 mm |
