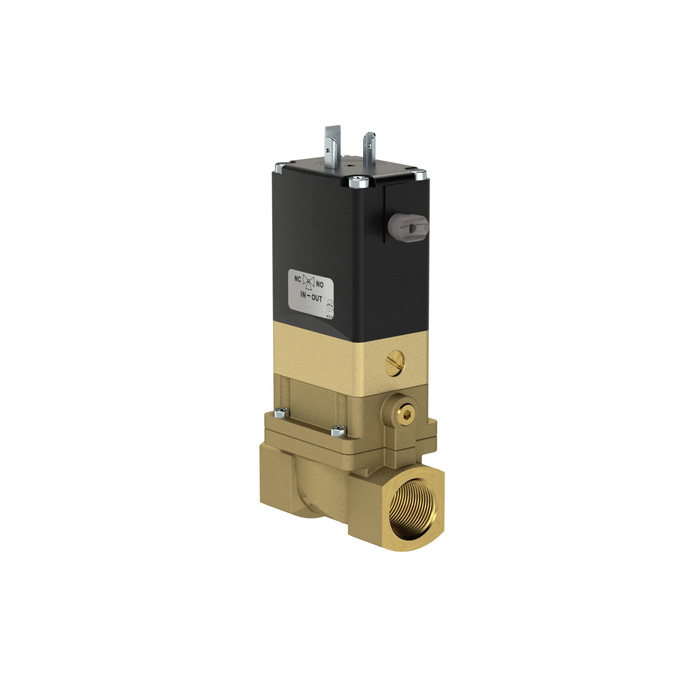

RIEGLER 2/2 We-MV, NC, MS, G 12, DN 13, PN 0.2-10, FPM, pre-wired. 230V AC
Type number: MVA.12.MS.230.F.BV.13
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2 We-MV made of brass, for industrial systems, max. 10 bar - Type MVA.12.MS.230.F.BV.13
The RIEGLER 2/2 We-MV, NC, MS, G 12, DN 13, PN 0.2-10, FPM, pre. 230V AC switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of brass with FPM seals. The operating pressure range is 0.2 bar to 10 bar. The permissible medium temperature is between 0 °C and 90 °C. Connection thread G 1/2 - suitable for common industry standards. Operating voltage 230V AC, protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Brass |
| Sealing material | FPM |
| Protection class | IP 65 (when using the cable plug) |
| Operating pressure min. | 0.2 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 55 °C |
| Thread | G 1/2 |
| DN | 13 |
| Function | normally closed (NC) |
| A | 65 mm |
| B | 123 mm |
| C | 109 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
| Stand Material Compliance | 44797 |
| Electrical connection | Plug lugs according to DIN EN 175301-803 |
| Interior parts | Brass and stainless steel |
| Valve seat | Brass and stainless steel |
| Tension | 230V AC |
