RIEGLER 2/2 We-MV, NC, MS, G 14, DN 3, PN 0-10, FPM, direct 110V AC
Type number: MVA.14.MS.110.F.BD.3
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Media-separated 2/2-way solenoid valve, NC, brass, G 1/4, PN 0-10, direct. opera., 110V AC, med.temp. 0 to 90, amb.temp. 0 to 55
| Housing | Brass |
| Sealing material | FPM |
| Protection class | IP 65 (when using the cable plug) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Brass |
| Valve seat | Brass |
| Thread | G 1/4 |
| DN | 3 |
| Function | normally closed (NC) |
| A | 71 mm |
| B | 46 mm |
| C | 18 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
| Stand Material Compliance | 44797 |
| Electrical connection | Plug lugs according to DIN EN 175301-803 |
| Tension | 110V AC |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125563] RIEGLER 2/2 We-MV, NC, MS, G 14, DN 3, PN 0-10, FPM, direct 230V AC](/web/image/product.template/281051/image_128/%5B125563%5D%20RIEGLER%202-2%20We-MV%2C%20NC%2C%20MS%2C%20G%2014%2C%20DN%203%2C%20PN%200-10%2C%20FPM%2C%20direct%20230V%20AC?unique=f9ceb80)
|
Type number: MVA.14.MS.230.F.BD.3 |
210.63 € | |
![[125754] RIEGLER 2/2 We-MV, NC, MS, G 14, DN 3, PN 0-10, FPM, direct 24V AC](/web/image/product.template/281055/image_128/%5B125754%5D%20RIEGLER%202-2%20We-MV%2C%20NC%2C%20MS%2C%20G%2014%2C%20DN%203%2C%20PN%200-10%2C%20FPM%2C%20direct%2024V%20AC?unique=583d3e4)
|
Type number: MVA.14.MS.24A.F.BD.3 |
210.63 € | |
![[124895] RIEGLER 2/2 We-MV, NC, MS, G 14, DN 3, PN 0-10, NBR, direct 110V AC](/web/image/product.template/281043/image_128/%5B124895%5D%20RIEGLER%202-2%20We-MV%2C%20NC%2C%20MS%2C%20G%2014%2C%20DN%203%2C%20PN%200-10%2C%20NBR%2C%20direct%20110V%20AC?unique=151fc45)
|
Type number: MVA.14.MS.110.N.BD.3 |
185.64 € | |

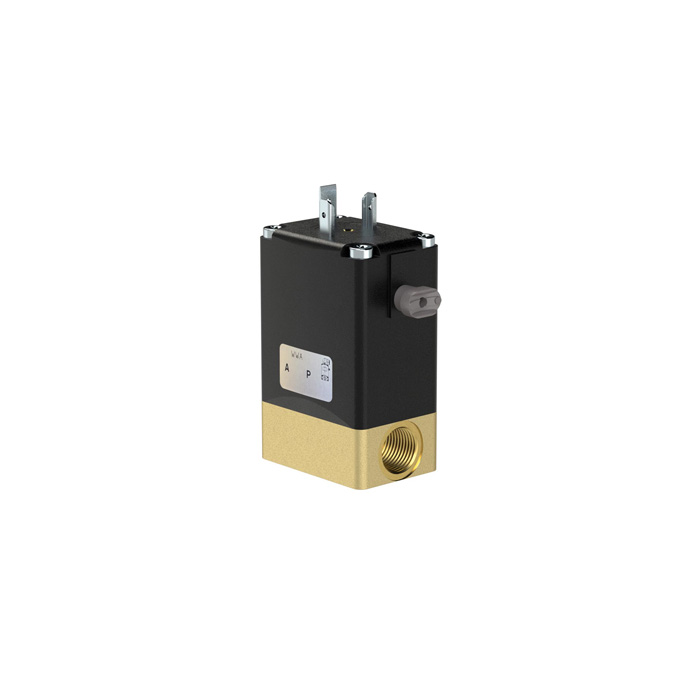

![[125752] RIEGLER 2/2 We-MV, NC, MS, G 14, DN 3, PN 0-10, NBR, direct 230V AC](/web/image/product.template/281053/image_128/%5B125752%5D%20RIEGLER%202-2%20We-MV%2C%20NC%2C%20MS%2C%20G%2014%2C%20DN%203%2C%20PN%200-10%2C%20NBR%2C%20direct%20230V%20AC?unique=f4ab5a1)
|
