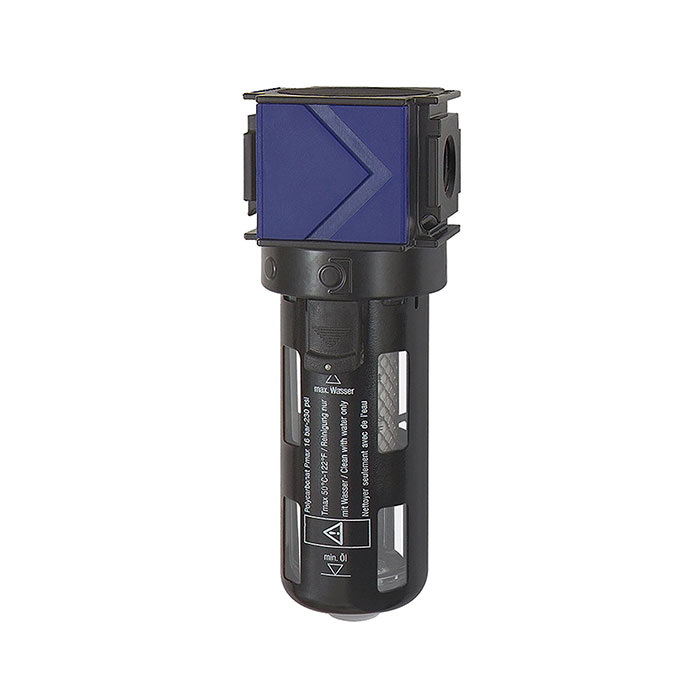

RIEGLER Active charcoal filter »variobloc« Protective cage, Size 2, G 1/2
Type number: VAK 24 S
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Activated carbon filter "variobloc" with PC container and protective cage, 0.003 mg/m³, BG 2, G 1/2, PE max. 16 bar, med. ambient temp. max. 50 °C
| Inlet pressure max. | 16 bar |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | variobloc |
| Container | Polycarbonate container with protective cage |
| Residual oil content | 0.003 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Air quality according to ISO 8573.1 | Class 1 dirt, class 1 oil |
| Thread | G 1/2 |
| Flow rate | 1200 l/min |
| BG | 2 |
| A | 70 mm |
| B | 193 mm |
| C | 26 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

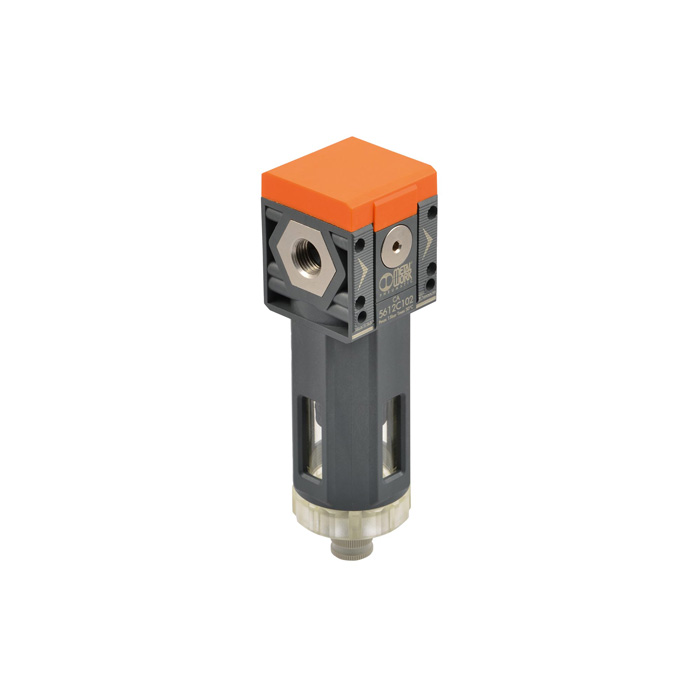

![[144668] RIEGLER Activated carbon filter "SYNTESI", BG 2, G 1/2, 0.003 mg/m³, RMSA](/web/image/product.template/277858/image_128/%5B144668%5D%20RIEGLER%20Activated%20carbon%20filter%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%200.003%20mg-m%C2%B3%2C%20RMSA?unique=f5fe6fb)
|
Type number: 5624C104 |
123.08 € | |
![[100194] Riegler Active charcoal filter »FUTURA« with PC container, Size 2, G 1/2](/web/image/product.template/123331/image_128/%5B100194%5D%20Riegler%20Active%20charcoal%20filter%20%C2%BBFUTURA%C2%AB%20with%20PC%20container%2C%20Size%202%2C%20G%201-2?unique=cc3c20a)
|
Type number: FU 894 |
109.50 € | |

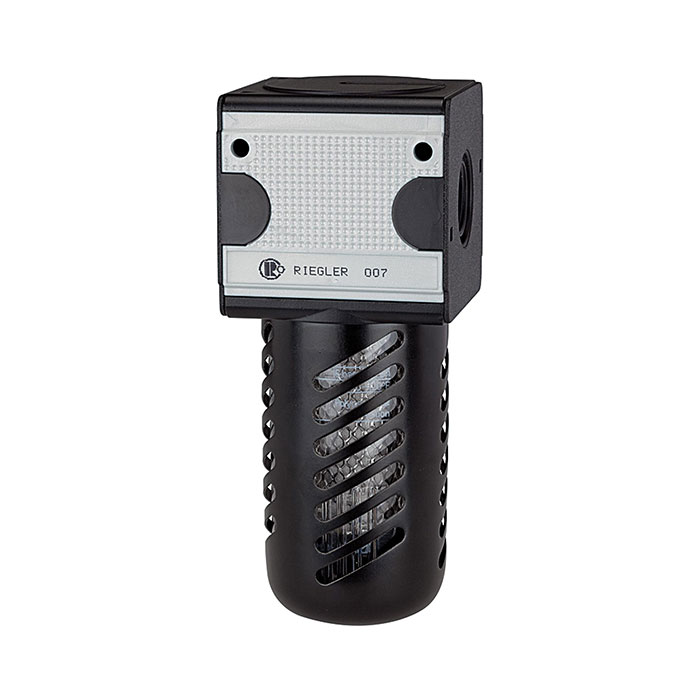

![[100542] RIEGLER Active charcoal filter »multifix«, PC container, Size 3, G 1/2](/web/image/product.template/139977/image_128/%5B100542%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Size%203%2C%20G%201-2?unique=3ccc42f)
|
