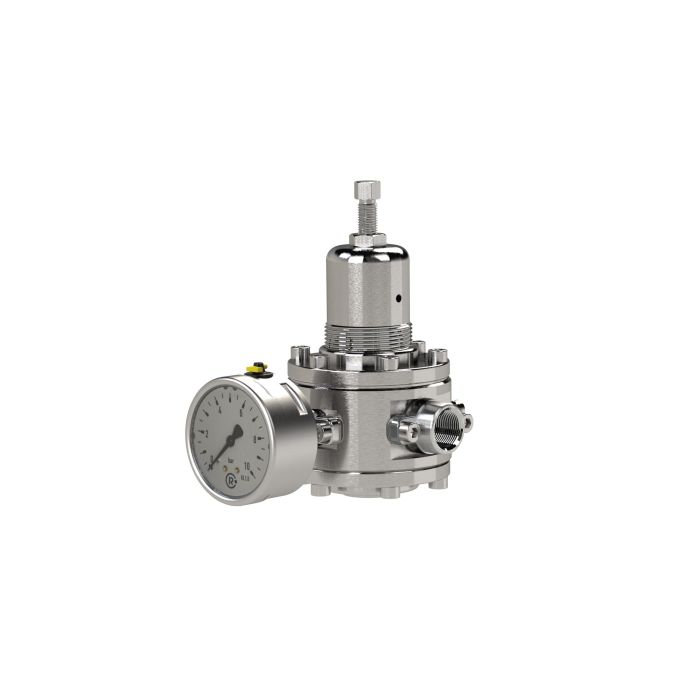

RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 1/2, 1,0 - 15 bar
Type number: DRES.G12NR.1-15B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel pressure regulator made of stainless steel 1.4404 (AISI 316L), for compressed air treatment - Type DRES.G12NR.1-15B
The RIEGLER stainless steel pressure regulator, 1.4404, non-return, G 1/2, 1.0 - 15 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of stainless steel 1.4404 (AISI 316L) with FKM seals. The control range extends from 1 bar to 15 bar with a maximum inlet pressure of 50 bar. The permissible medium temperature is between -20 °C and 80 °C. G 1/2 connection thread - suitable for common industry standards. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| A | 109 mm |
| B | 160 mm |
| C | 39 mm |
| Sealing material | FKM |
| Flow 1 | 2800 l/min |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Inlet pressure max. | 50 bar |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Thread | G 1/2 |
| Class name | STAINLESS STEEL |
| Medium temperature max. | 80 °C |
| Medium temperature min. | -20 °C |
| Membrane | PTFE on NBR carrier |
| Control range max. | 15 bar |
| Control range min. | 1 bar |
| Ambient temperature max. | 80 °C |
| Ambient temperature min. | -20 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101195] RIEGLER Stainless steel pressure regulator, 1.4404, G 1/4, 0.5 - 8 bar](/web/image/product.template/140631/image_128/%5B101195%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20G%201-4%2C%200.5%20-%208%20bar?unique=66c307f)
|
Type number: 571.14 B |
479.80 € | |

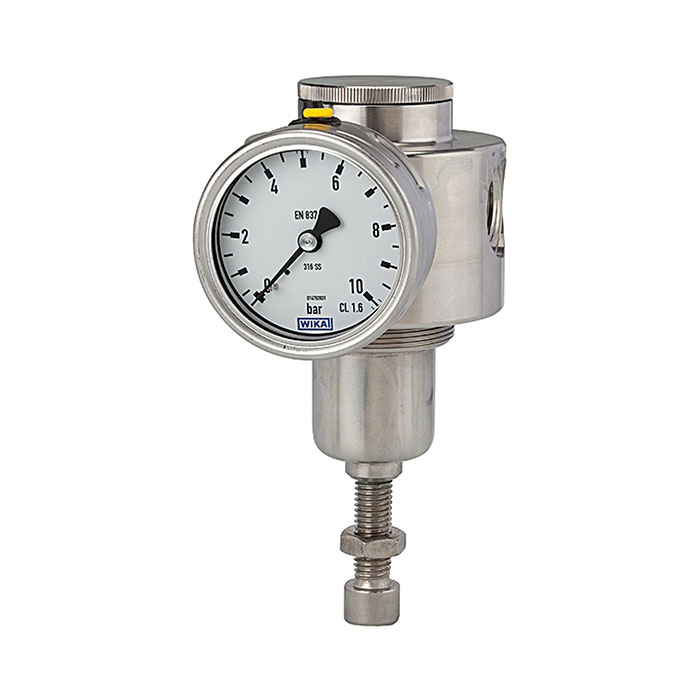

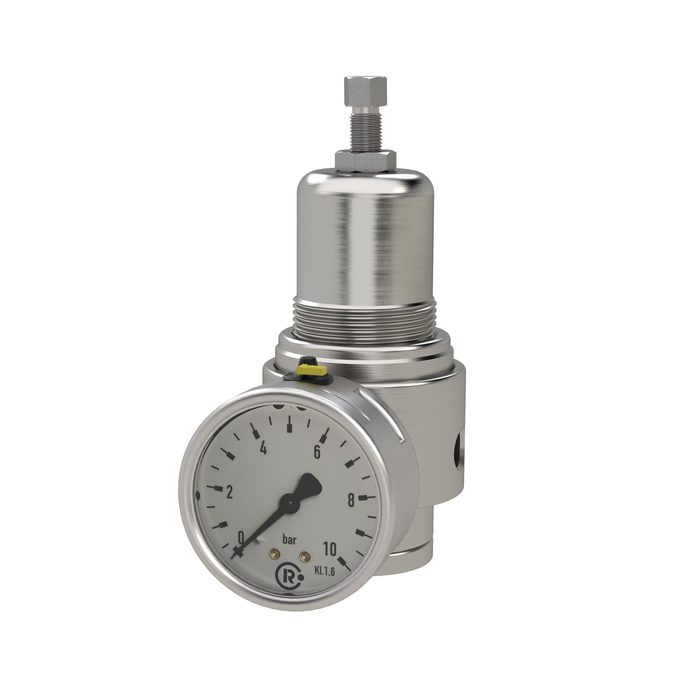

![[101196] RIEGLER Stainless steel pressure regulator, 1.4404, G 1/4, 1 - 15 bar](/web/image/product.template/140632/image_128/%5B101196%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20G%201-4%2C%201%20-%2015%20bar?unique=872de67)
|
Type number: 571.14 D |
479.80 € | |
![[129272] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 1/2, 0,5 - 8 bar](/web/image/product.template/268118/image_128/%5B129272%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%201-2%2C%200%2C5%20-%208%20bar?unique=cdfe826)
|
Type number: DRES.G12NR.05-8B |
793.36 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101199] RIEGLER Mounting bracket made of stainless steel 1.4401 with nut M45x1.5](/web/image/product.template/140635/image_128/%5B101199%5D%20RIEGLER%20Mounting%20bracket%20made%20of%20stainless%20steel%201.4401%20with%20nut%20M45x1.5?unique=44cd50b)
|
Type number: 576/1 |
63.32 € | |

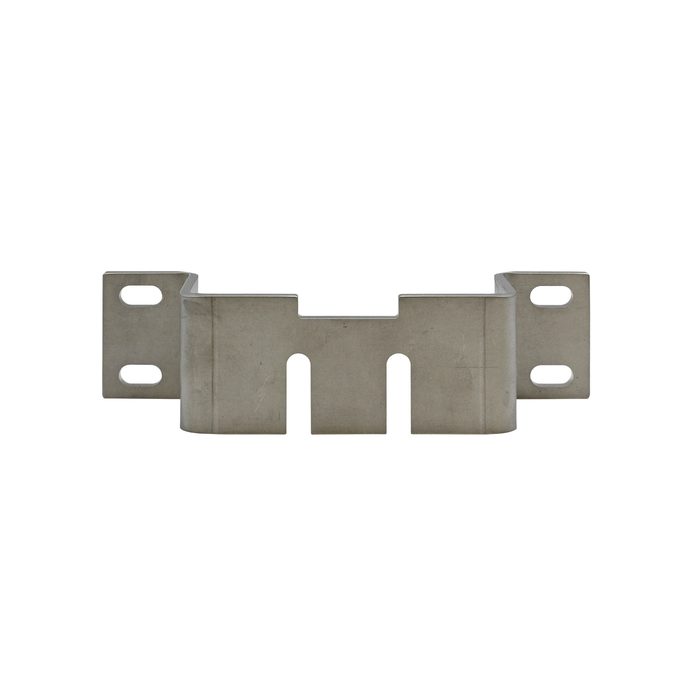

![[145739] RIEGLER Mounting bracket made of stainless steel 1.4401, G 1/2](/web/image/product.template/279357/image_128/%5B145739%5D%20RIEGLER%20Mounting%20bracket%20made%20of%20stainless%20steel%201.4401%2C%20G%201-2?unique=77f368c)
|
Type number: 576/7 |
48.89 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

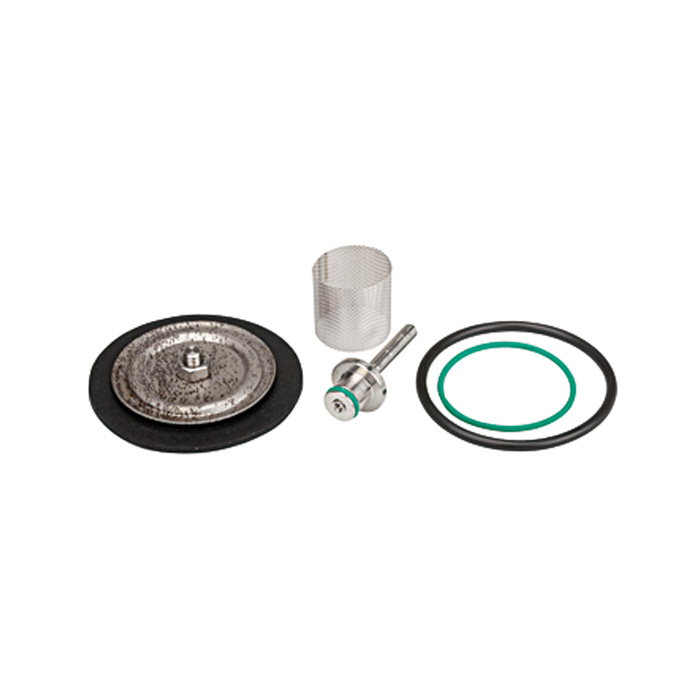

![[129672] RIEGLER Wear parts kit, stainless steel pressure r., 1.4404, n. set back, G 1/2](/web/image/product.template/273023/image_128/%5B129672%5D%20RIEGLER%20Wear%20parts%20kit%2C%20stainless%20steel%20pressure%20r.%2C%201.4404%2C%20n.%20set%20back%2C%20G%201-2?unique=a27e413)
|
