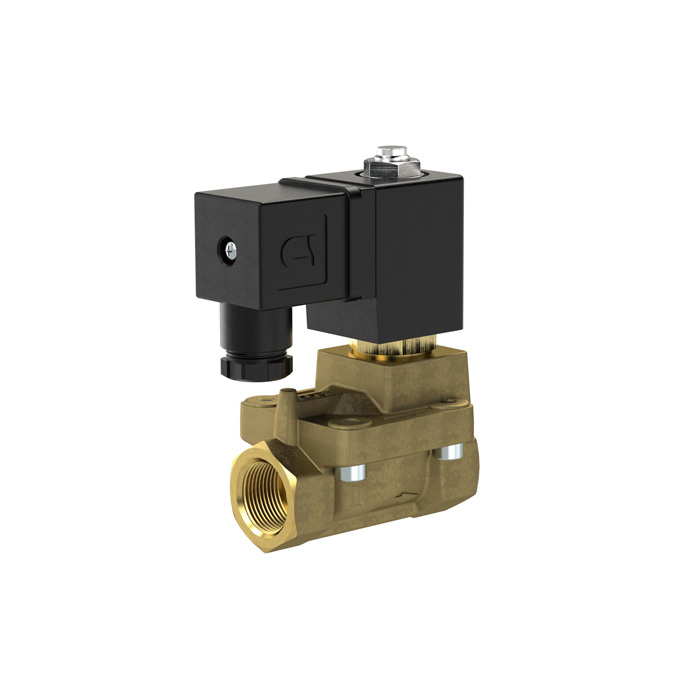

RIEGLER 2/2 MV, NO, MS, G38, DN13, PN 0.5-12, FPM, prefabricated, 12V DC
Type number: MVB.38.MS.12.F.RV.13
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2/2-way solenoid valve, NO, brass, G 3/8, DN13, PN 0.5-12, FPM, pilot-operated, 12V DC, med.temp -15 to 100, ambi.temp -10 to 50
| Housing | Brass |
| Sealing material | FPM |
| Protection class | IP 65 (when using the cable plug) |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 12 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Thread | G 3/8 |
| DN | 13 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| Function | normally open (NO) |
| A | 67 mm |
| B | 103 mm |
| C | 48 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Stand Material Compliance | 44811 |
| Electrical connection | Cable plug, industrial standard type A - EN 175301-803-A |
| Interior parts | Brass and stainless steel |
| Valve seat | Brass and stainless steel |
| Tension | 12V DC |
