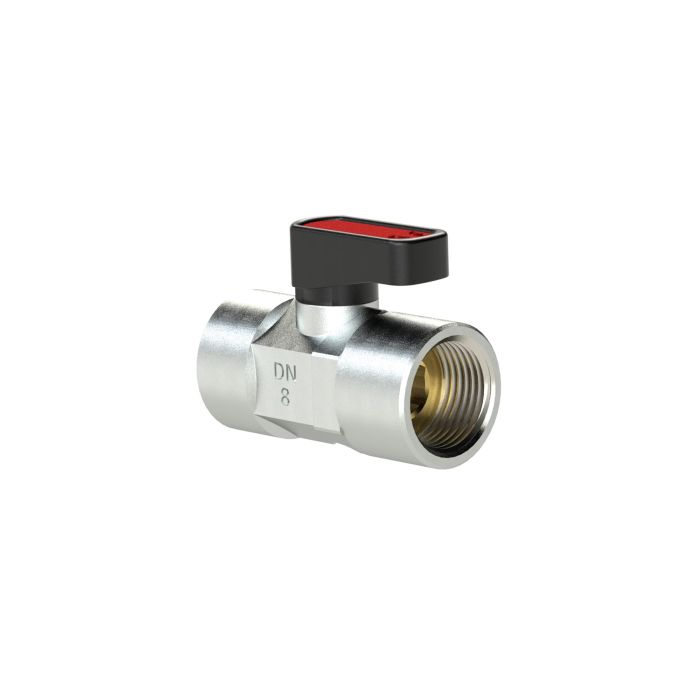

RIEGLER Mini ball valve n. lockable, venting, G 3/8 IG
Type number: 377.03-R
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mini ball valve, not lockable, venting hole 3, operating temperature -20 °C to 80 °C, G 3/8 IT, DN 8, PN -0.99-20 bar
| Area of application | Compressed air, water, oil |
| Max. operating pressure | 20 bar |
| Operating pressure min. | -0.99 bar |
| Operating temperature max. | 80 °C |
| Operating temperature min. | -20 °C |
| DN | 8 |
| Rotary handle | PA 66 glass fiber reinforced |
| Vent hole | 3 |
| Housing | Nickel-plated brass |
| Thread | G 3/8 IG |
| Thread material | Nickel-plated brass |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| H | 19.5 mm |
| Class name | PLUS |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| L | 42 mm |
| L1 | 19 mm |
| Spindle seal | NBR |
| SW | 18 - 19 mm |
| Theme shop | SAFETY |
