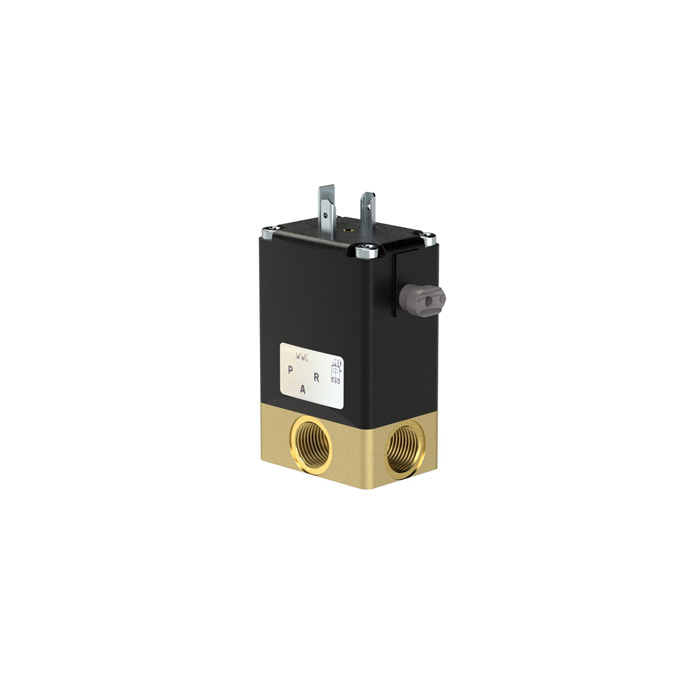

RIEGLER 3/2 We-MV, NO, MS, G 1/4, DN 3.0, PN 0-10, NBR, direct 24V DC
Type number: MVD.14.MS.24D.N.BD.3
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2 We-MV made of brass, for industrial systems, max. 10 bar - Type MVD.14.MS.24D.N.BD.3
The RIEGLER 3/2 We-MV, NO, MS, G 1/4, DN 3.0, PN 0-10, NBR, direct 24V DC switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of brass with NBR seals. The operating pressure range is 0 bar to 10 bar. The permissible medium temperature is between 0 °C and 80 °C. Connection thread G 1/4 - suitable for common industry standards. Operating voltage 24V DC, protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Brass |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Brass |
| Valve seat | Brass |
| Thread | G 1/4 |
| DN | 3 |
| Function | normally open (NO) |
| A | 71 mm |
| B | 46 mm |
| Class name | MAX |
| Electrical connection | Plug lugs according to DIN EN 175301-803 |
| Tension | 24V DC |
