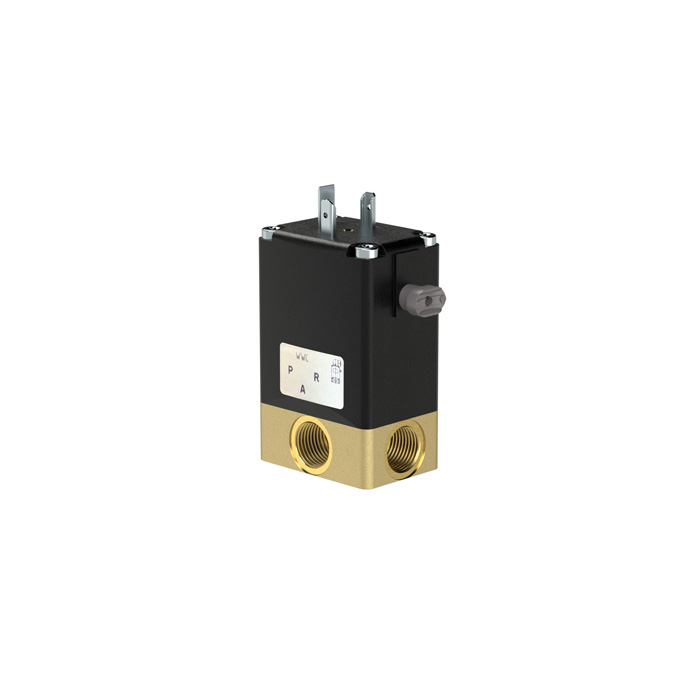

RIEGLER 3/2 We-MV, NO, MS, G 1/4, DN 3.0, PN 0-10, NBR, direct 24V AC
Type number: MVD.14.MS.24A.N.BD.3
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way solenoid valve, media-controlled, NO, MS, G 1/4, DN 3.0, PN 0-10, NBR, direct 24V AC, media temp. 0 to 80, ambient temp. 0 to 55
| Housing | Brass |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Brass |
| Valve seat | Brass |
| Thread | G 1/4 |
| DN | 3 |
| Function | normally open (NO) |
| A | 71 mm |
| B | 46 mm |
| Class name | MAX |
| Electrical connection | Plug lugs according to DIN EN 175301-803 |
| Tension | 24V AC |
