RIEGLER Double threaded nipple "NonPlusUltra", red, G1/4, G1/8, PU10
Type number: DGNG1418ES4404RED FDA
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Double threaded nipple, chamb. o-ring »NonPlusUltra«, red., G1/4, G1/8, FPM (FDA), p = -0,99…25 bar, T = -20…150 °C, 1.4404, PU 10
| Medium | Compressed air, neutral gases and liquids, oil, grease |
| Sealing material | FPM (FDA-compliant) |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Material | Stainless steel 1.4404 |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| SW | 17 mm |
| L1 | 23 mm |
| D1 | 18.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| Thread 1 | G 1/4 |
| Thread 2 | G 1/8 |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
| Stand Material Compliance | 45166 |
| Series | NonPlusUltra |
| Suitable pipe material | PE, PA, PU, PTFE, FEP, pipes |
| Thread standard | DIN ISO 228-1 |
| NW | 5.5 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[132185] RIEGLER Double threaded nipple "NonPlusUltra", red, G1/2, G3/8, PU10](/web/image/product.template/278463/image_128/%5B132185%5D%20RIEGLER%20Double%20threaded%20nipple%20%22NonPlusUltra%22%2C%20red%2C%20G1-2%2C%20G3-8%2C%20PU10?unique=b3bc5bd)
|
Type number: DGNG1238ES4404RED FDA |
178.98 € | |

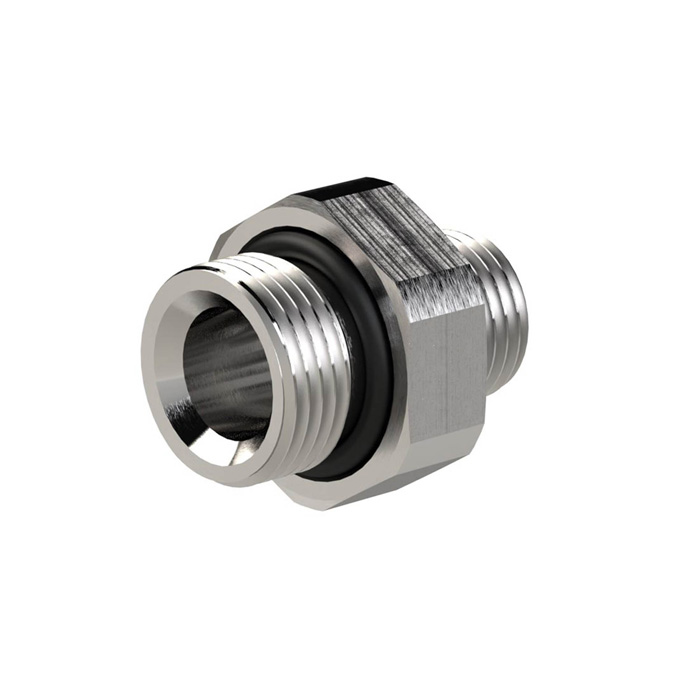

![[132176] RIEGLER Double threaded nipple "NonPlusUltra", red, G3/8, G1/4, PU10](/web/image/product.template/278462/image_128/%5B132176%5D%20RIEGLER%20Double%20threaded%20nipple%20%22NonPlusUltra%22%2C%20red%2C%20G3-8%2C%20G1-4%2C%20PU10?unique=d40a0fc)
|
