RIEGLER Pre-filter »multifix« PC container, Protective cage, Size 4 G 3/4
Type number: FV 44 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pre-filter "multifix" PC container made of die-cast aluminum, for compressed air treatment, G 3/4 - type FV 44 S
The RIEGLER "multifix" pre-filter PC container, protective cage, 0.3 µm, BG 4, G 3/4 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast aluminum with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/4 - suitable for common industry standards. The flow rate is 2000 l/min (at P1 = 6 bar and pressure drop Δp = 0.02 bar). Filter fineness 0.3 µm, polycarbonate container with protective cage. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.02 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Filter element | Paper POM |
| Filter fineness | 0.3 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 999.99 |
| Thread | G 3/4 |
| Flow rate | 2000 l/min |
| Condensate drain | semi-automatic |
| DN | 20 |
| BG | 4 |
| A | 85 mm |
| B | 248 mm |
| C | 58 mm |
| D | 190 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

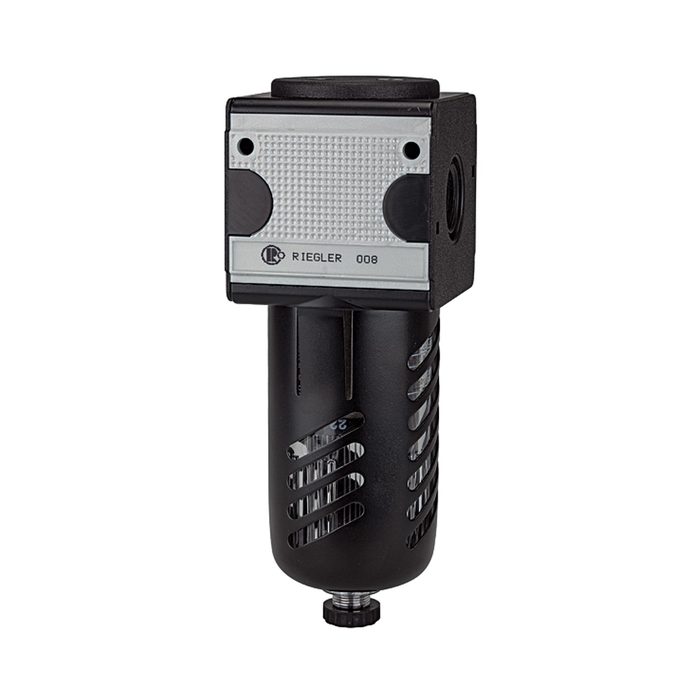

![[100529] RIEGLER Pre-filter »multifix« PC container, Protective cage, Size 1 G 1/4](/web/image/product.template/139964/image_128/%5B100529%5D%20RIEGLER%20Pre-filter%20%C2%BBmultifix%C2%AB%20PC%20container%2C%20Protective%20cage%2C%20Size%201%20G%201-4?unique=323c487)
|
Type number: FV 11 S |
81.84 € | |
![[100530] RIEGLER Pre-filter »multifix« PC container, Protective cage, Size 3 G 1/2](/web/image/product.template/139965/image_128/%5B100530%5D%20RIEGLER%20Pre-filter%20%C2%BBmultifix%C2%AB%20PC%20container%2C%20Protective%20cage%2C%20Size%203%20G%201-2?unique=4a88a7d)
|
Type number: FV 33 S |
128.58 € | |

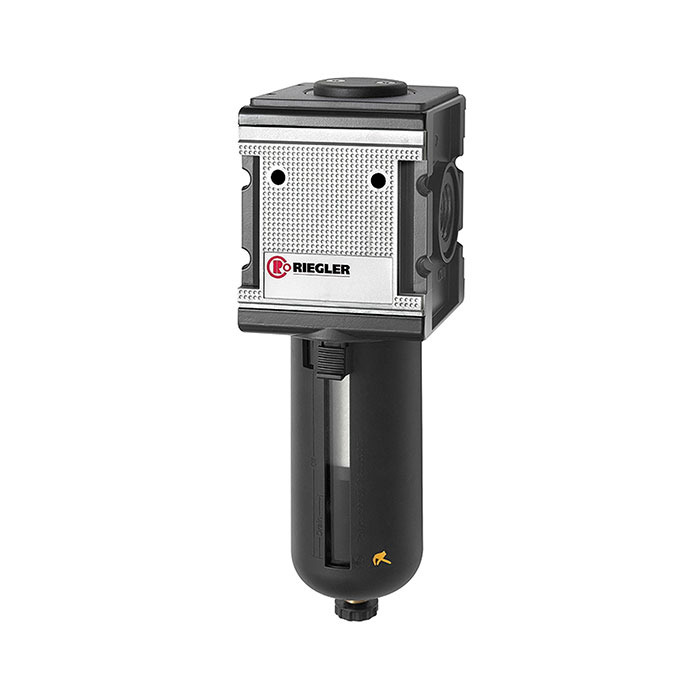

![[133116] RIEGLER Pre-filter »multifix« PC container, Protective cage, Size 4, G 1](/web/image/product.template/202766/image_128/%5B133116%5D%20RIEGLER%20Pre-filter%20%C2%BBmultifix%C2%AB%20PC%20container%2C%20Protective%20cage%2C%20Size%204%2C%20G%201?unique=03928c6)
|
Type number: FV 45 S |
173.85 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=16b9c4b)
|
Type number: 655.6.900 |
36.35 € | |

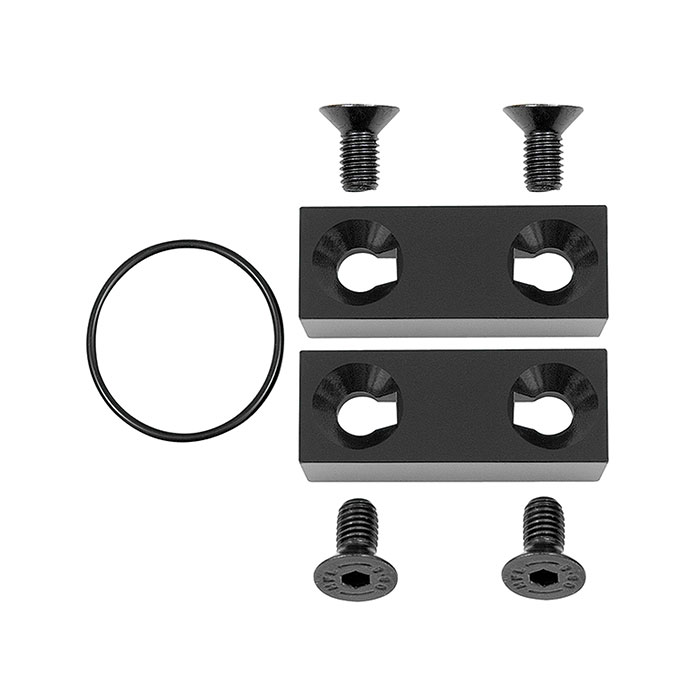

![[135857] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/206213/image_128/%5B135857%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=0e0b4a3)
|
Type number: KP 45 |
7.75 € | |

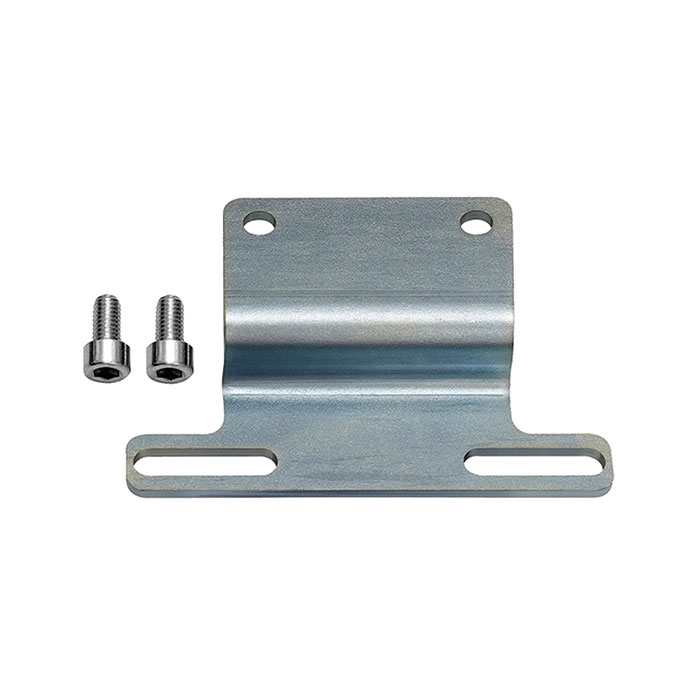

![[135858] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 4, G 3/4 and G 1](/web/image/product.template/206214/image_128/%5B135858%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%203-4%20and%20G%201?unique=753579b)
|
Type number: ZW 45 |
13.19 € | |

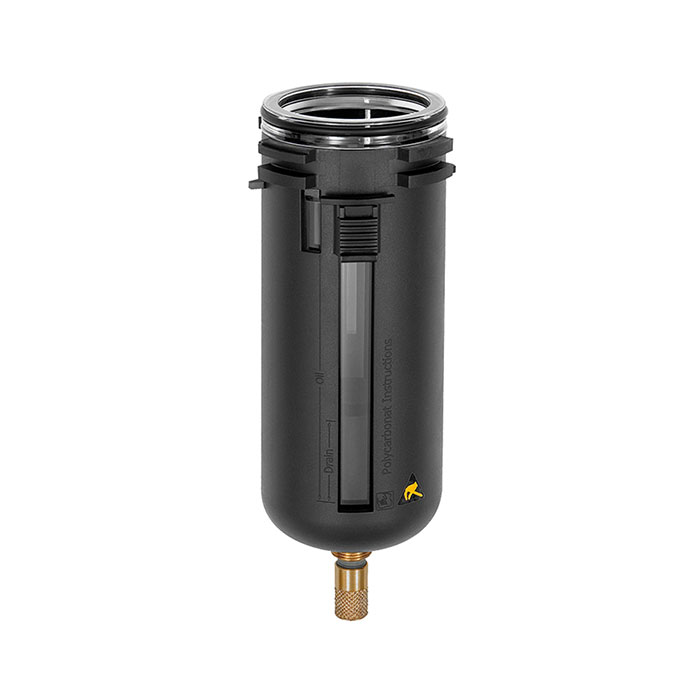

![[135860] RIEGLER Polycarbonate container with protective cage, fully automated](/web/image/product.template/206216/image_128/%5B135860%5D%20RIEGLER%20Polycarbonate%20container%20with%20protective%20cage%2C%20fully%20automated?unique=25f1f5d)
|
Type number: KSS 45 F-A |
55.17 € | |
![[135861] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/206217/image_128/%5B135861%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=733b2b7)
|
Type number: MS 45 FS |
44.26 € | |
![[135862] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/206218/image_128/%5B135862%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=956e1d7)
|
Type number: MS 45 FS-A |
83.22 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[135859] RIEGLER Polycarbonate container with protective cage, semi-automated](/web/image/product.template/206215/image_128/%5B135859%5D%20RIEGLER%20Polycarbonate%20container%20with%20protective%20cage%2C%20semi-automated?unique=eed8fdd)
|
Type number: KSS 45 F-HA |
15.58 € | |
