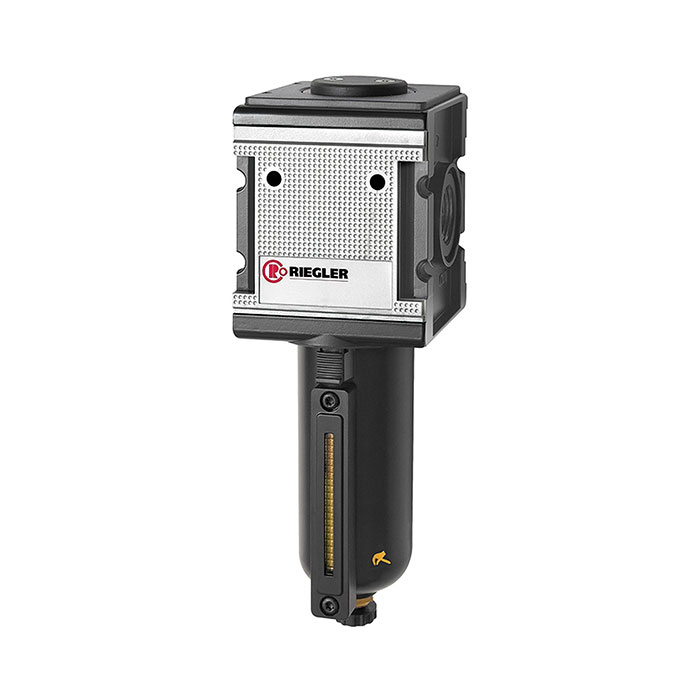

RIEGLER Pre-filter »multifix« with metal container, 0.3 µm, Size 4, G 1
Type number: FV 45 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pre-filter "multifix" made of die-cast aluminum, for compressed air treatment, G 1 - type FV 45 M
The RIEGLER "multifix" pre-filter, with metal container, 0.3 µm, BG 4, G 1 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast aluminum with NBR seals. The maximum inlet pressure is 20 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 - suitable for common industry standards. The flow rate is 2000 l/min (at P1 = 6 bar and pressure drop Δp = 0.02 bar). Filter fineness 0.3 µm, container made of metal container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 20 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.02 bar |
| Series | multifix |
| Container | Metal container |
| Filter element | Paper POM |
| Filter fineness | 0.3 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 999.99 |
| Thread | G 1 |
| Flow rate | 2000 l/min |
| Condensate drain | semi-automatic |
| DN | 25 |
| BG | 4 |
| A | 85 mm |
| B | 247 mm |
| C | 58 mm |
| D | 189 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
