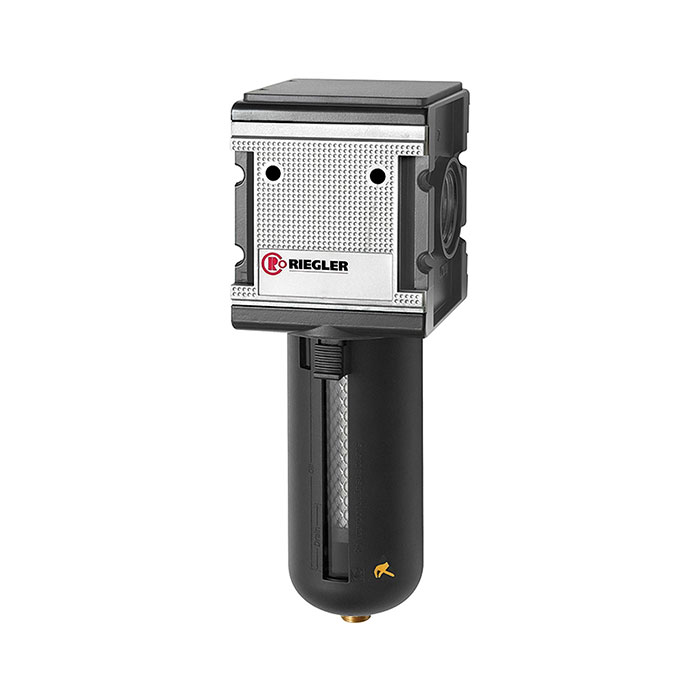

RIEGLER Active charcoal filter »multifix«, PC container, Size 4, G 3/4
Type number: FA 44 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Activated carbon filter "multifix" made of die-cast aluminum, for compressed air treatment, G 3/4 - type FA 44 S
The RIEGLER activated carbon filter "multifix", PC container, protective cage, BG 4, G 3/4 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast aluminum with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/4 - suitable for common industry standards. The flow rate is 3000 l/min (at P1 = 6 bar and pressure drop Δp = 0.2 bar). Polycarbonate tank with protective cage. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Filter element | Activated carbon POM |
| Residual oil content | 0.005 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/4 |
| Flow rate | 3000 l/min |
| DN | 20 |
| BG | 4 |
| A | 85 mm |
| B | 241 mm |
| C | 58 mm |
| D | 183 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100541] RIEGLER Active charcoal filter »multifix«, PC container, Size 1, G 1/4](/web/image/product.template/139976/image_128/%5B100541%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Size%201%2C%20G%201-4?unique=8ff1d7b)
|
Type number: FA 11 S |
81.17 € | |

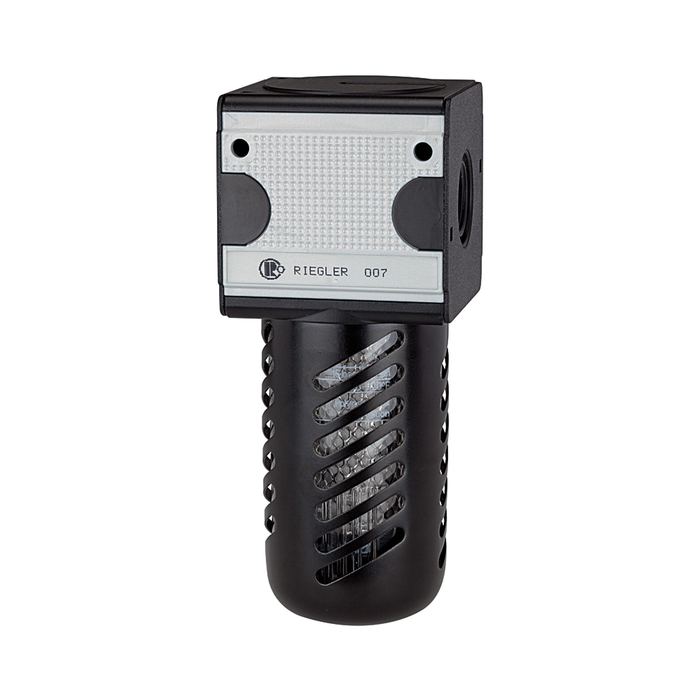

![[100542] RIEGLER Active charcoal filter »multifix«, PC container, Size 3, G 1/2](/web/image/product.template/139977/image_128/%5B100542%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Size%203%2C%20G%201-2?unique=c121029)
|
Type number: FA 33 S |
128.58 € | |
![[133150] RIEGLER Active charcoal filter »multifix«, PC container, Size 4, G 1](/web/image/product.template/202800/image_128/%5B133150%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Size%204%2C%20G%201?unique=2742283)
|
Type number: FA 45 S |
173.85 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

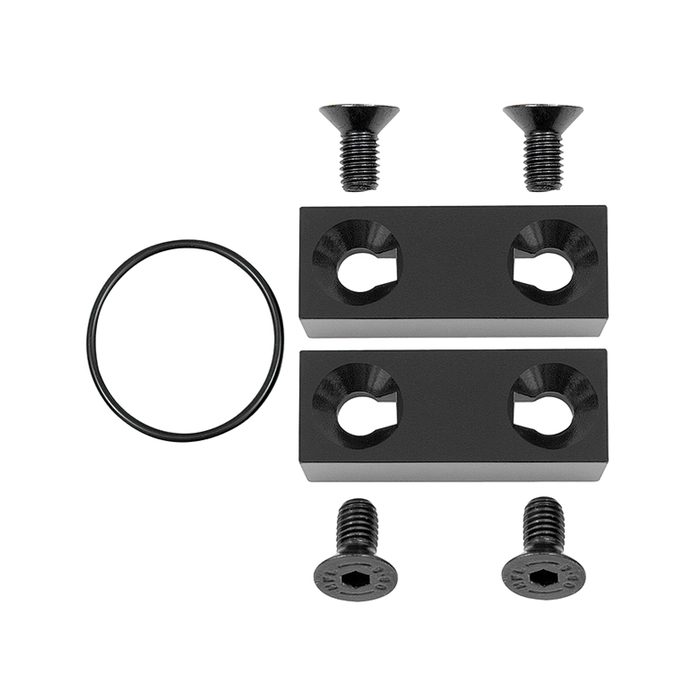

![[135857] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/206213/image_128/%5B135857%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=9efba4d)
|
Type number: KP 45 |
7.75 € | |

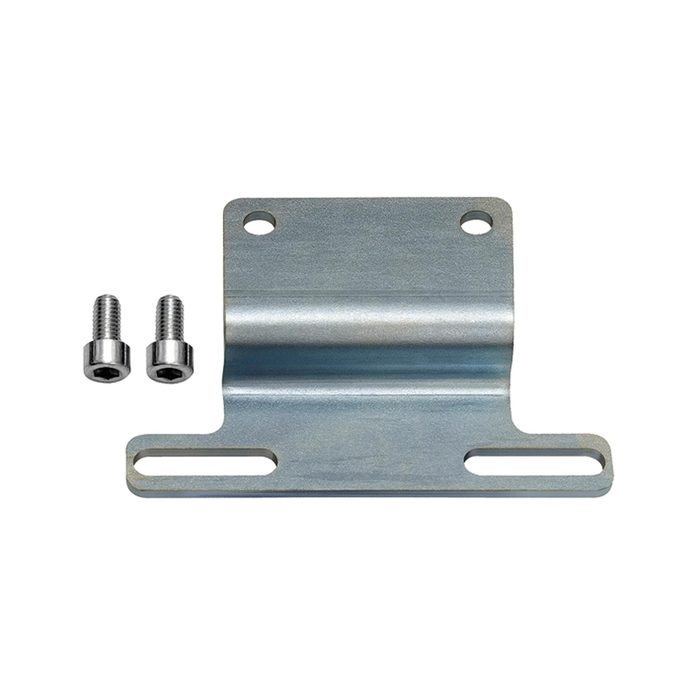

![[135858] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 4, G 3/4 and G 1](/web/image/product.template/206214/image_128/%5B135858%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%203-4%20and%20G%201?unique=ece6685)
|
Type number: ZW 45 |
13.19 € | |

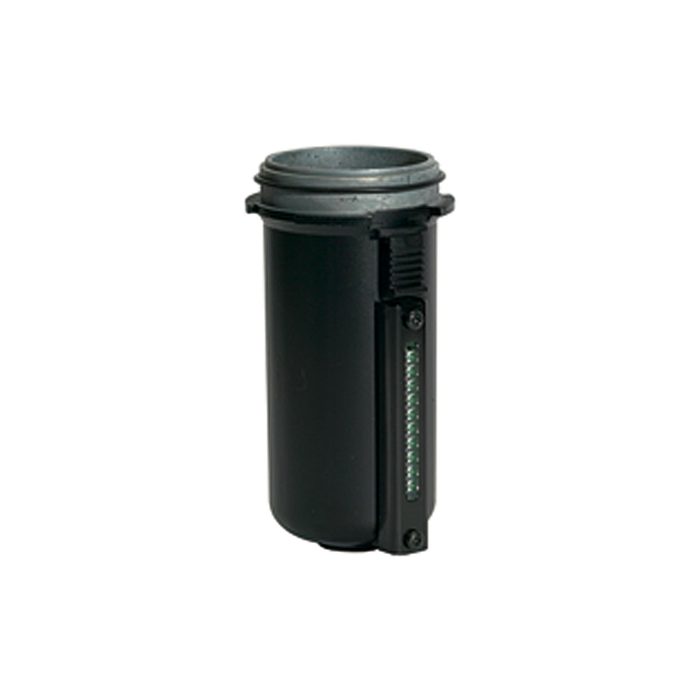

![[135864] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/206220/image_128/%5B135864%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=eac37f6)
|
Type number: MS 45 NS |
44.54 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

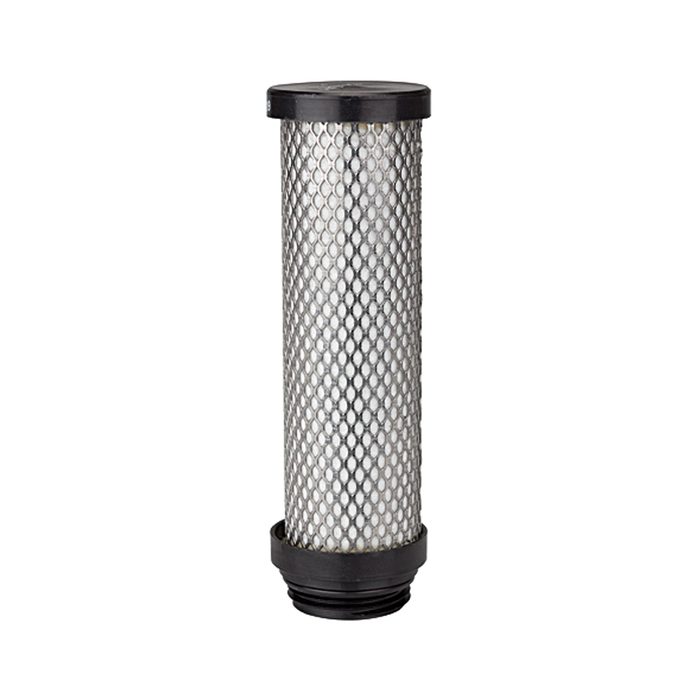

![[100205] Riegler Filter element 0.005 mg/m³, Active charcoal](/web/image/product.template/123334/image_128/%5B100205%5D%20Riegler%20Filter%20element%200.005%20mg-m%C2%B3%2C%20Active%20charcoal?unique=f910370)
|
Type number: A 896 |
67.06 € | |

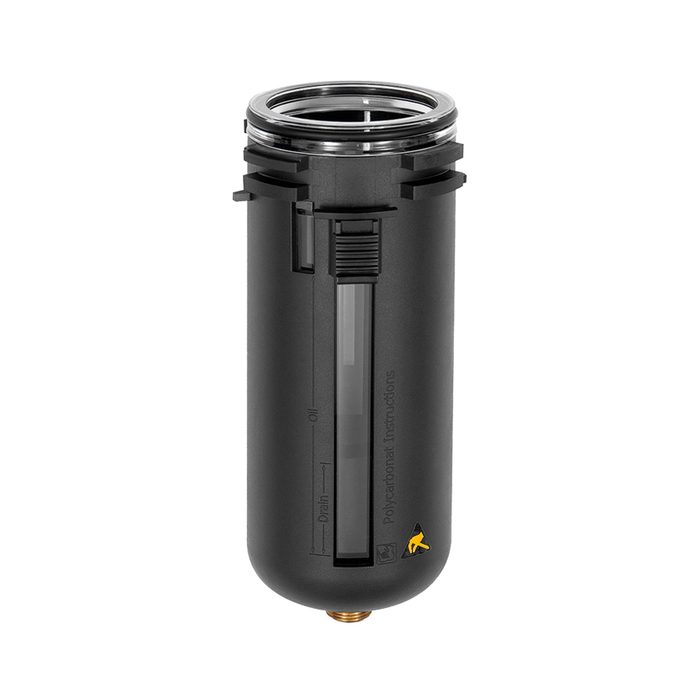

![[135863] RIEGLER Polycarbonate container with protective cage](/web/image/product.template/206219/image_128/%5B135863%5D%20RIEGLER%20Polycarbonate%20container%20with%20protective%20cage?unique=07e64ba)
|
