RIEGLER Pushbutton safety coupling I.D. 5.5, rotating, Alu, G 1/4 ET

Price:

58.21 €

RIEGLER Pushbutton safety coupling I.D. 5.5, rotating, Alu, G 1/2 IT
RIEGLER Pushbutton safety coupling I.D. 5.5, rotating, Alu, G 1/2 IT
61.39 € 61.39 €
RIEGLER Pushbutton safety coupling I.D. 5.5, rotating, Alu, G 1/4 IT
RIEGLER Pushbutton safety coupling I.D. 5.5, rotating, Alu, G 1/4 IT
58.21 € 58.21 €

RIEGLER Pushbutton safety coupling I.D. 5.5, rotating, Alu, G 1/4 ET

https://www.filcom-technik.de/web/image/product.template/205330/image_1920?unique=c975552

Type number: 244.11-D-A

EAN: 4047322483803

58.21 € 58.21 EUR 58.21 € VAT Included

81.53 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

134054

EAN :

4047322483803

Category :

Safety Couplings

Weight :

0.10 kg

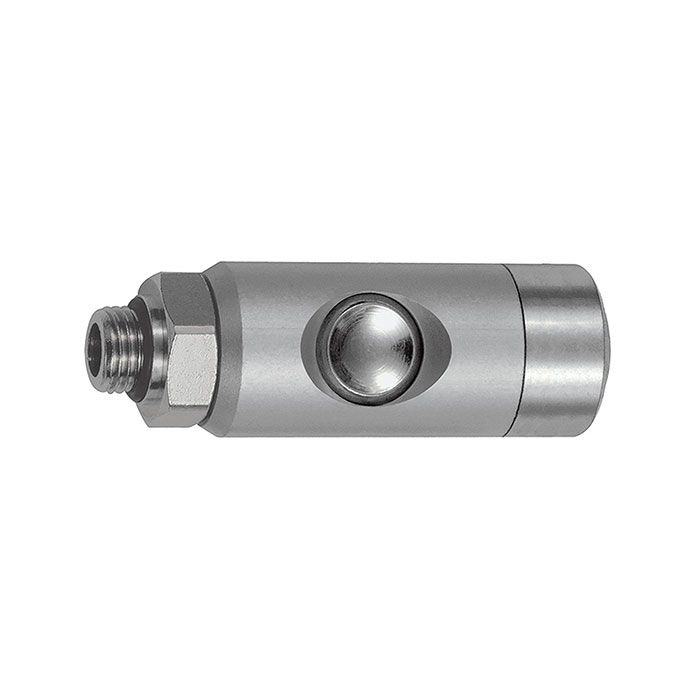

Push-button safety coupling NW 5.5, ARO210, rotatable, aluminum, G 1/4 male, operating pressure max. 12 bar, medium/ambient temp. -20°C to 70°C

Housing Aluminum, anodized
Sealing material NBR
Flow rate measurement at 6 bar and Î"<sub>p </sub>= 1 bar
Max. operating pressure 12 bar
Medium temperature min. -20 °C
Medium temperature max. 70 °C
Ambient temperature min. -20 °C
Ambient temperature max. 70 °C
Flow rate 1080 l/min (air)
Interior parts Stainless steel 1.4404
Threaded piece Nickel-plated brass
Valve Hardened and galvanized steel
Button Hardened and galvanized steel
SW 21 mm
NW 5.5
Length 75 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
Connection G 1/4 AG
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Exception 6a, 6b, 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N, AL2011, 11SMnPb37
Connector profile according to ARO 210
Class name EASY
