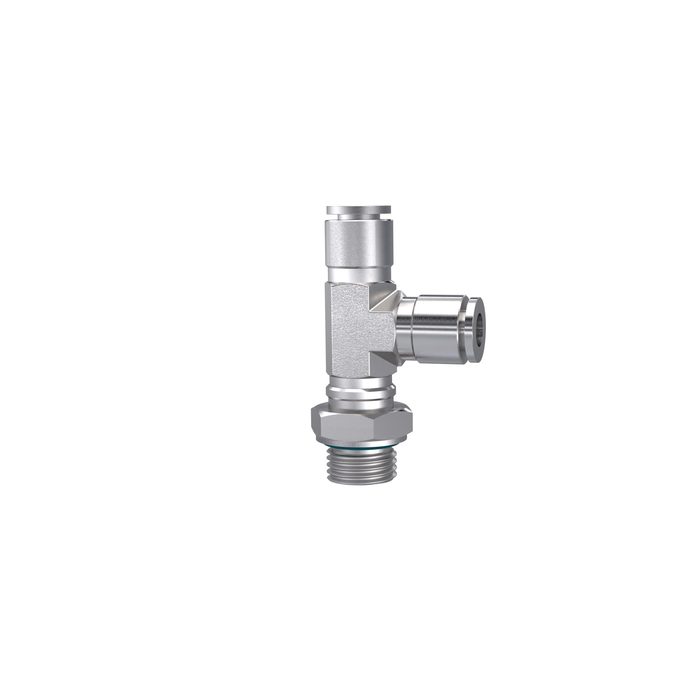

RIEGLER Push-in T-fitting, L-shape rotating G 1/8 o. for hose exterior Ø8
Type number: 871.018-8 ES
EAN: 4047322494168
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Push-in T-fitting, rotatable, L-shaped, G 1/8 a., for outer tube Ø 8 mm, working pressure -0.98 - 20 bar, stainless steel 1.4404
| Medium | Compressed air, corrosive media (if compatible with material) |
| Sealing material | FPM |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 20 bar |
| Material | Stainless steel 1.4404 |
| Area of application | Compressed air systems, chemicals and food, pharmaceuticals, packaging, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Suitable pipe material | PVDF, PTFE, PA, PU |
| Thread | G 1/8 |
| SW 1 | 14 mm |
| SW | 14 mm |
| Thread standard | DIN EN ISO 228-1 |
| for hose outer Ø | 8 mm |
| Execution | L-shaped plug-in connections, with O-ring (FPM) |
| L1 | 23.2 mm |
| L2 | 50.2 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
| Construction method | rotatable |
