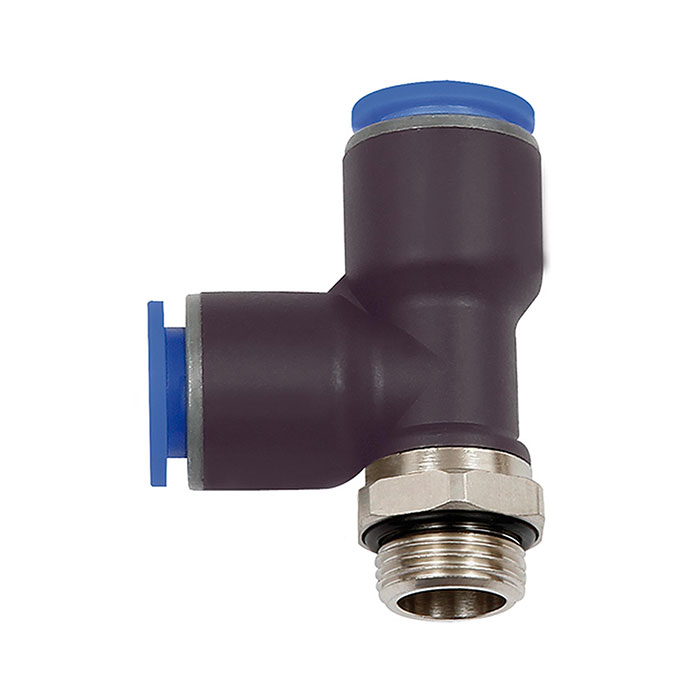

RIEGLER Push-in T-fitting »Blue Series«, L-shape, rotating, G 3/8 o.
Type number: 129.038-14
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
T-Steckverschr. »Blaue Serie«, L-Form, drehbar, G 3/8 a., für Schlauch-Außen-Ø 14 mm, pmax kurzzeitig 15 bar, Kunststoff/MS vern.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 3/8 |
| SW | 20 mm |
| for hose outer Ø | 14 mm |
| L1 | 31.8 mm |
| L2 | 64 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
