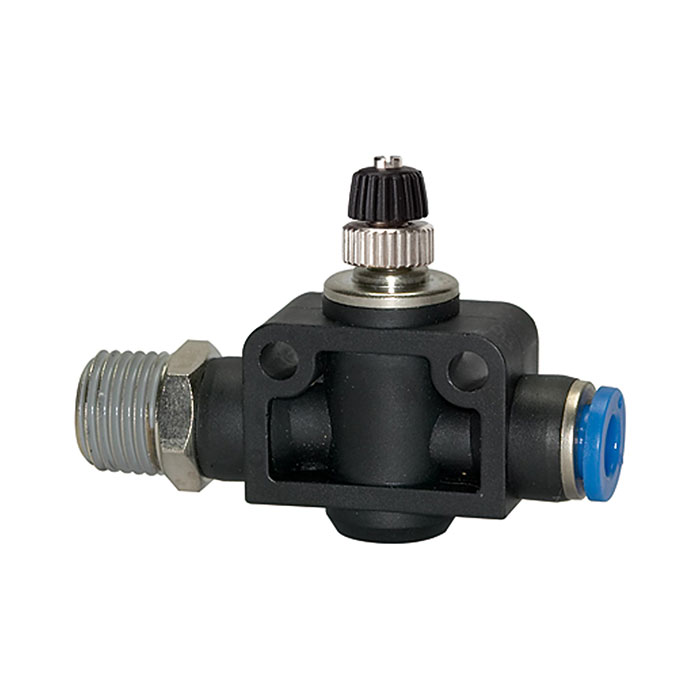

RIEGLER Throttle check valve »Blue Series«, Straight, R 3/8 o.
Type number: 287.038-8
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Throttle check valve "Blue Series", straight, R 3/8 a., for hose A-Ø 8 mm, pmax short-term 15 bar, KS/MS nickel-plated, throttling G-S
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 3/8 |
| SW | 17 mm |
| for hose outer Ø | 8 mm |
| L1 | 62.5 mm |
| L2 min. | 44.1 mm |
| L2 max. | 51.8 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135834] RIEGLER Throttle check valve »Blue Series«, Straight, R 1/2 o.](/web/image/product.template/206206/image_128/%5B135834%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Straight%2C%20R%201-2%20o.?unique=483c40c)
|
Type number: 287.012-12 |
10.88 € | |
![[135833] RIEGLER Throttle check valve »Blue Series«, Straight, R 1/2 o.](/web/image/product.template/206205/image_128/%5B135833%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Straight%2C%20R%201-2%20o.?unique=e90b95b)
|
Type number: 287.012-10 |
10.44 € | |
![[135827] RIEGLER Throttle check valve »Blue Series«, Straight, R 1/4 o.](/web/image/product.template/206199/image_128/%5B135827%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Straight%2C%20R%201-4%20o.?unique=c855e8e)
|
Type number: 287.014-8 |
6.21 € | |
![[135828] RIEGLER Throttle check valve »Blue Series«, Straight, R 1/4 o.](/web/image/product.template/206200/image_128/%5B135828%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Straight%2C%20R%201-4%20o.?unique=8efc3c0)
|
Type number: 287.014-10 |
10.44 € | |
![[135826] RIEGLER Throttle check valve »Blue Series«, Straight, R 1/4 o.](/web/image/product.template/206198/image_128/%5B135826%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Straight%2C%20R%201-4%20o.?unique=ebb085f)
|
Type number: 287.014-6 |
5.58 € | |
![[135829] RIEGLER Throttle check valve »Blue Series«, Straight, R 1/4 o.](/web/image/product.template/206201/image_128/%5B135829%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Straight%2C%20R%201-4%20o.?unique=743db20)
|
Type number: 287.014-12 |
10.50 € | |
![[135824] RIEGLER Throttle check valve »Blue Series«, Straight, R 1/8 o.](/web/image/product.template/206196/image_128/%5B135824%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Straight%2C%20R%201-8%20o.?unique=3ccc99b)
|
Type number: 287.018-6 |
4.95 € | |
![[135825] RIEGLER Throttle check valve »Blue Series«, Straight, R 1/8 o.](/web/image/product.template/206197/image_128/%5B135825%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Straight%2C%20R%201-8%20o.?unique=23793df)
|
Type number: 287.018-8 |
6.21 € | |
![[135823] RIEGLER Throttle check valve »Blue Series«, Straight, R 1/8 o.](/web/image/product.template/206195/image_128/%5B135823%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Straight%2C%20R%201-8%20o.?unique=bfd609b)
|
Type number: 287.018-4 |
4.02 € | |
![[135831] RIEGLER Throttle check valve »Blue Series«, Straight, R 3/8 o.](/web/image/product.template/206203/image_128/%5B135831%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Straight%2C%20R%203-8%20o.?unique=e7155c6)
|
Type number: 287.038-10 |
10.44 € | |
![[135832] RIEGLER Throttle check valve »Blue Series«, Straight, R 3/8 o.](/web/image/product.template/206204/image_128/%5B135832%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Straight%2C%20R%203-8%20o.?unique=b8f90b8)
|
Type number: 287.038-12 |
10.50 € | |
