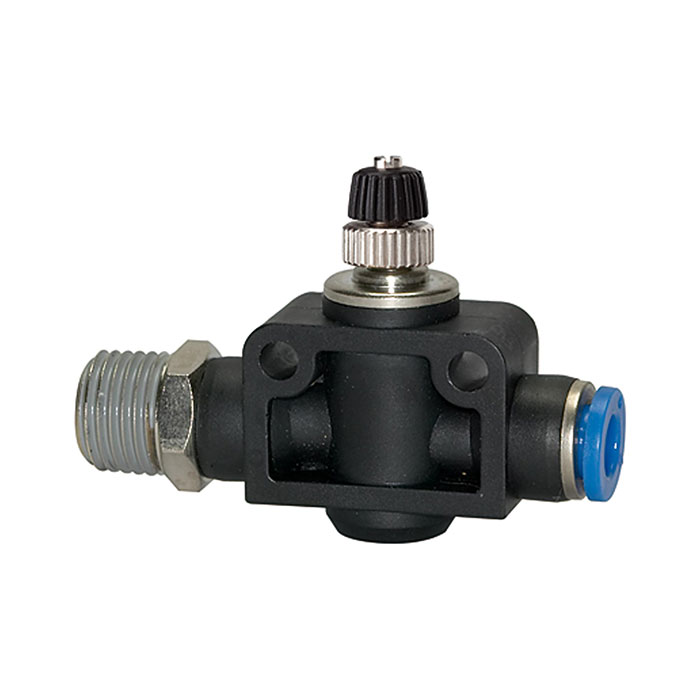

RIEGLER Throttle check valve »Blue Series«, Straight, R 3/8 o.
Type number: 287.038-10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Throttle check valve "Blue series" made of plastic or nickel-plated brass - Type 287.038-10
The RIEGLER throttle check valve "Blue Series", straight, R 3/8 a. G-S Ø10mm enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Connection thread R 3/8 - suitable for common industry standards. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 3/8 |
| SW | 17 mm |
| for hose outer Ø | 10 mm |
| L1 | 72.4 mm |
| L2 min. | 47.7 mm |
| L2 max. | 55.3 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
