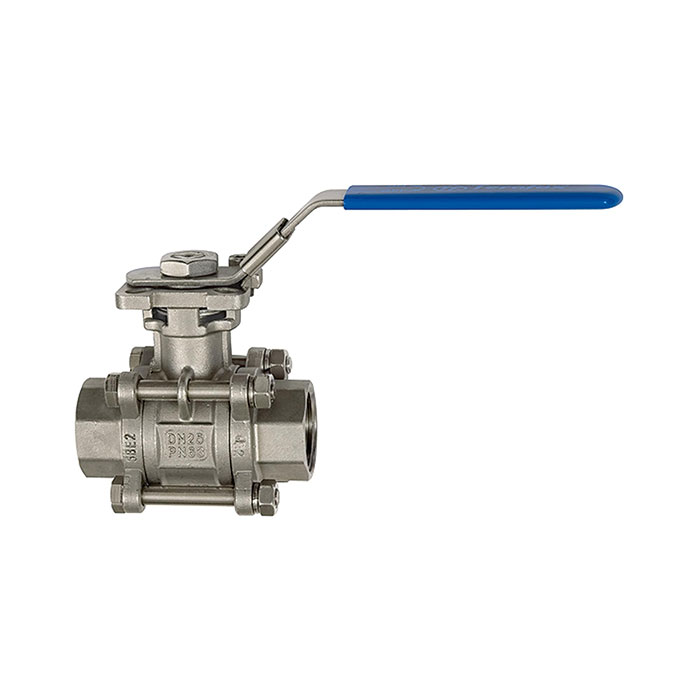

RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 2
Type number: 3390.08
EAN: 4047322501590
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel ball valve, 3-part, overall length to DIN 3202-M3, G 2, DN 50, operating temp. -20 °C to 180 °C, PN max. 63 bar
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | PTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Thread | G 2 |
| DN | 50 |
| PN | 63 bar |
| Thread standard | G-thread to DIN EN ISO 228-1, flange plate ISO 5211 |
| A | 190 mm |
| B | 120.5 mm |
| L | 140 mm |
| C Ø | 47 mm |
| ISO 5211 | F 05 / F 07 |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 7.7 mm |
