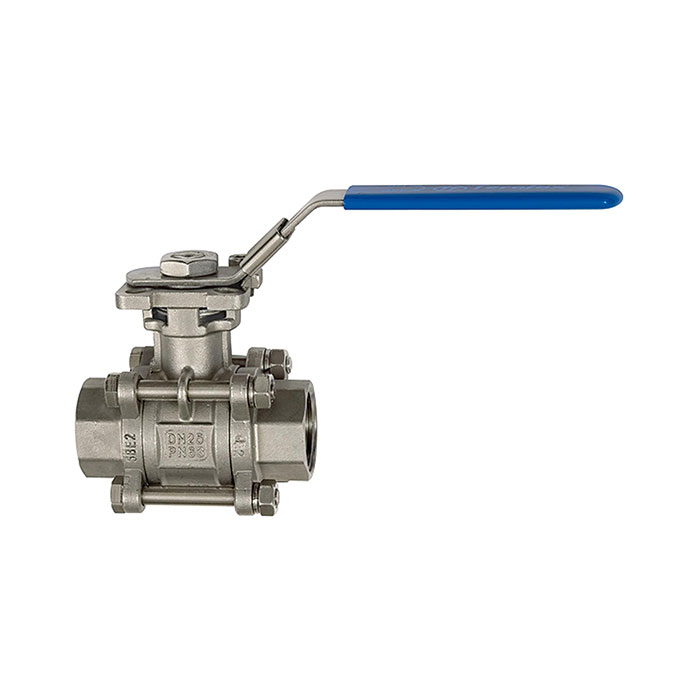

RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 2 1/2
Type number: 3390.09
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel ball valve made of stainless steel 1.4408, for industrial systems, G 2 1/2 - Type 3390.09
The RIEGLER stainless steel ball valve, 3-part, overall length to DIN 3202-M3, G 2 1/2 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of stainless steel 1.4408. The operating temperature is between -20 °C and 180 °C. Connection thread G 2 1/2 (G thread to DIN EN ISO 228-1, flange plate ISO 5211) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | PTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Thread | G 2 1/2 |
| DN | 65 |
| PN | 40 bar |
| Thread standard | G-thread to DIN EN ISO 228-1, flange plate ISO 5211 |
| A | 350 mm |
| B | 125 mm |
| L | 185 mm |
| C Ø | 64 mm |
| ISO 5211 | F 07 / F 10 |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 7.7 mm |
