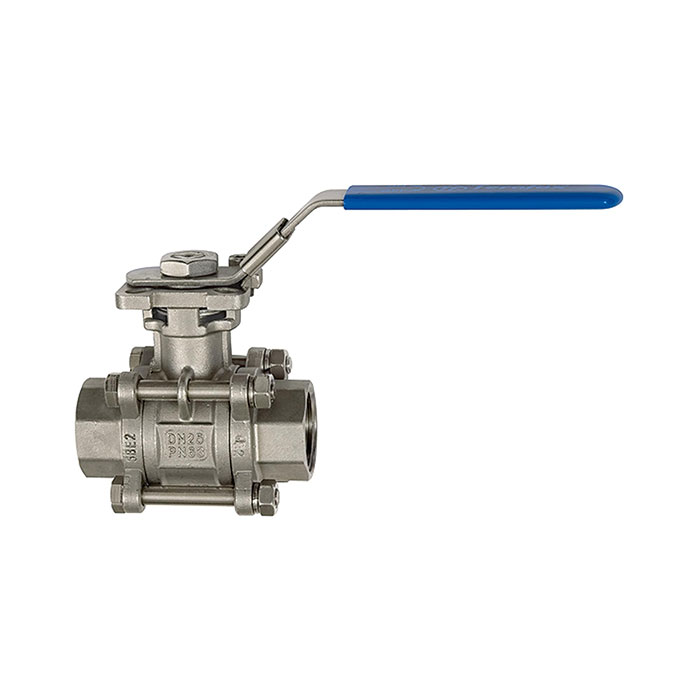

RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1/4
Type number: 3390.01
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel ball valve made of stainless steel 1.4408, for industrial systems, G 1/4 - type 3390.01
The RIEGLER stainless steel ball valve, 3-part, overall length to DIN 3202-M3, G 1/4 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of stainless steel 1.4408. The operating temperature is between -20 °C and 180 °C. Connection thread G 1/4 (G thread to DIN EN ISO 228-1, flange plate ISO 5211) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | PTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Thread | G 1/4 |
| DN | 8 |
| PN | 63 bar |
| Thread standard | G-thread to DIN EN ISO 228-1, flange plate ISO 5211 |
| A | 125 mm |
| B | 68.5 mm |
| L | 60 mm |
| C Ø | 10.5 mm |
| ISO 5211 | F 03 / F 04 |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 7.7 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135914] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1](/web/image/product.template/206267/image_128/%5B135914%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%201?unique=a0ab24f)
|
Type number: 3390.05 |
64.97 € | |
![[135916] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1 1/2](/web/image/product.template/206269/image_128/%5B135916%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%201%201-2?unique=e550b24)
|
Type number: 3390.07 |
111.92 € | |
![[135915] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1 1/4](/web/image/product.template/206268/image_128/%5B135915%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%201%201-4?unique=b628140)
|
Type number: 3390.06 |
85.74 € | |
![[135912] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1/2](/web/image/product.template/206265/image_128/%5B135912%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%201-2?unique=36e2de7)
|
Type number: 3390.03 |
38.73 € | |
![[135917] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 2](/web/image/product.template/206270/image_128/%5B135917%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%202?unique=e4979d0)
|
Type number: 3390.08 |
160.75 € | |
![[135918] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 2 1/2](/web/image/product.template/206271/image_128/%5B135918%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%202%201-2?unique=3379a61)
|
Type number: 3390.09 |
373.89 € | |
![[135919] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 3](/web/image/product.template/206272/image_128/%5B135919%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%203?unique=16651ea)
|
Type number: 3390.10 |
507.45 € | |
![[135913] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 3/4](/web/image/product.template/206266/image_128/%5B135913%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%203-4?unique=2371664)
|
Type number: 3390.04 |
47.60 € | |
![[135911] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 3/8](/web/image/product.template/206264/image_128/%5B135911%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%203-8?unique=f2f0b54)
|
Type number: 3390.02 |
30.42 € | |
