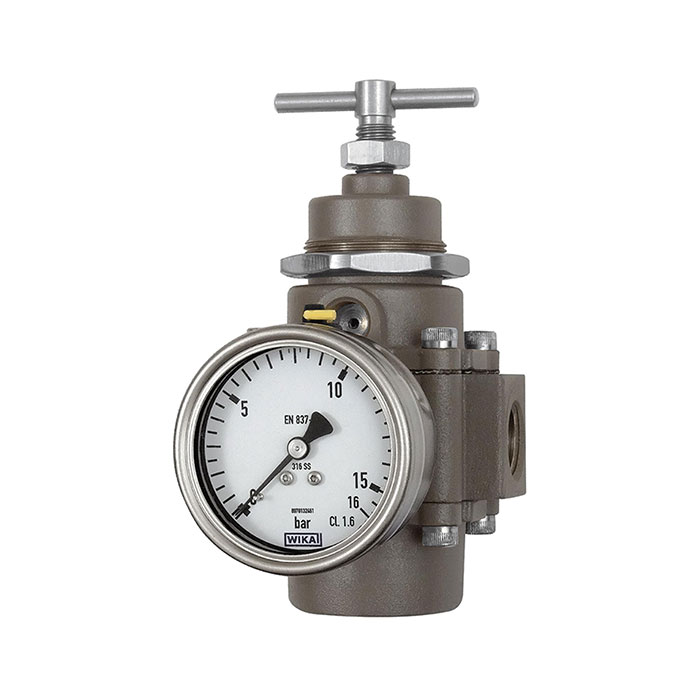

RIEGLER Stainless steel casting press. regulator, G 1 1/2, 0.4 - 4.0 bar
Type number: 580RC4-112-4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Cast stainless steel pressure regulator made of cast stainless steel 1.4401 (AISI 316) - Type 580RC4-112-4
The RIEGLER stainless steel cast pressure regulator, 1.4401, BG 4, G 1 1/2, 0.4 - 4.0 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of cast stainless steel 1.4401 (AISI 316) with NBR seals. The control range extends from 0.4 bar to 4 bar at an inlet pressure of max. 30 bar. Connection thread G 1 1/2 - suitable for common industry standards. The flow rate is 11270 l/min (at P1 = 10 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 30 bar |
| Housing | Cast stainless steel 1.4401 (AISI 316) |
| Sealing material | NBR |
| Membrane | NBR/PTFE |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> ‰¤ 1 bar |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 1 1/2 |
| Flow rate | 11270 l/min |
| Control range min. | 0.4 bar |
| Control range max. | 4 bar |
| BG | 4 |
| A | 120 mm |
| B | 224 mm |
| C | 88 mm |
| Class name | STAINLESS STEEL |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

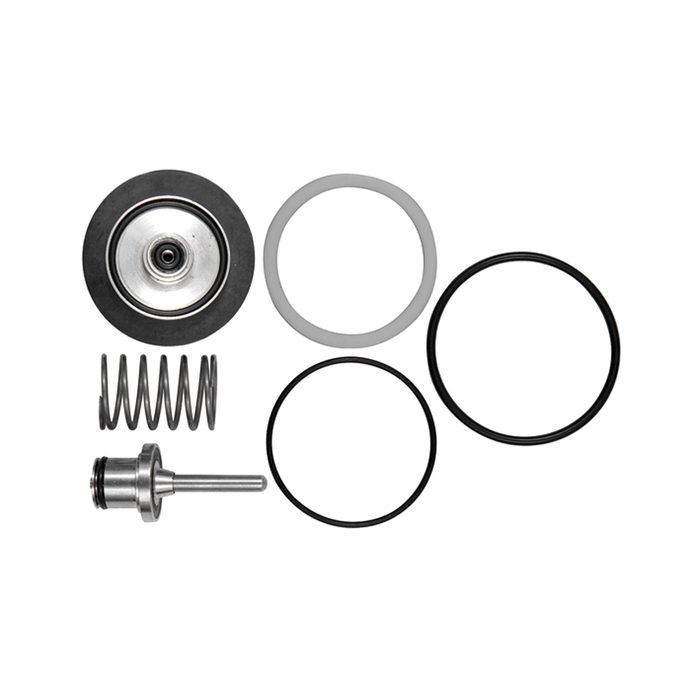

![[137318] RIEGLER Wear part set for stainl. steel casting pressure/filter regulator](/web/image/product.template/207803/image_128/%5B137318%5D%20RIEGLER%20Wear%20part%20set%20for%20stainl.%20steel%20casting%20pressure-filter%20regulator?unique=905e693)
|
Type number: 580RC4-VS |
151.14 € | |
