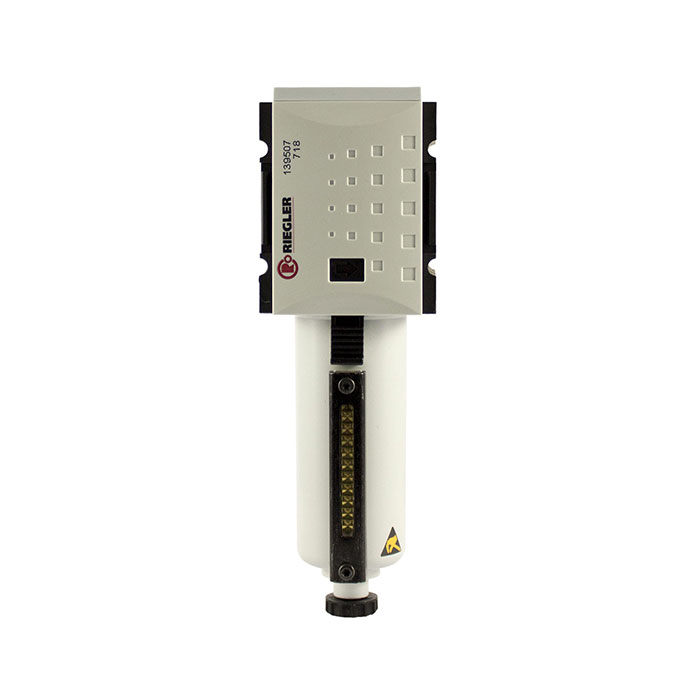

RIEGLER Filter »FUTURA«, Metal container, 5 µm, Size 2, G 3/8, Semi auto.
Type number: FU 833-M
EAN: 4047322534369
"FUTURA" filter with metal bowl and sight tube, 5 µm, BG 2, G 3/8, PE 1.5 - 16 bar, temp. -10 °C to 50 °C, condensate drain: HA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Container | Metal container with sight tube |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 3/8 |
| Flow rate | 3500 l/min |
| Condensate drain | semi-automatic |
| BG | 2 |
| A | 63 mm |
| B | 193.5 mm |
| C | 42.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | MAX |
