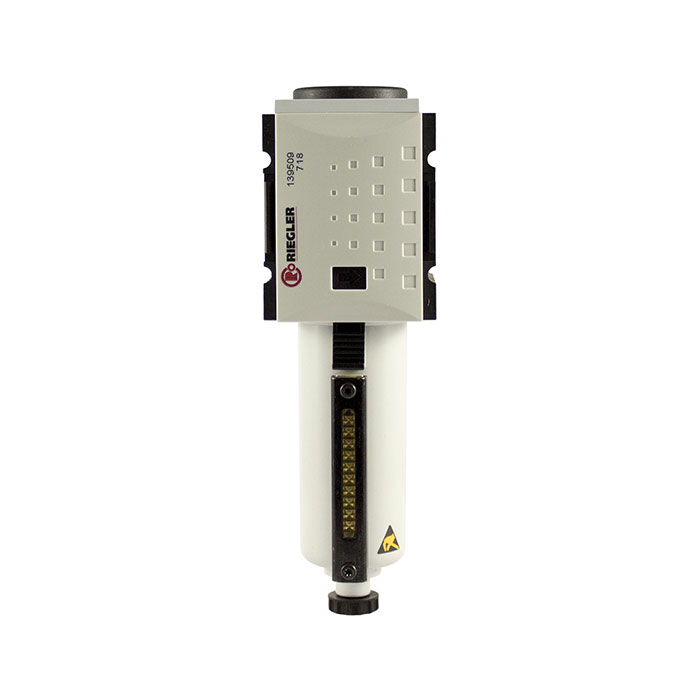

RIEGLER Pre-filter »FUTURA«, Metal container, 0.3 µm, Size 2, G 1/2, Semi
Type number: FU 854-M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Vorfilter »FUTURA«, Metallbehälter und Sichtrohr, 0,3 µm, BG 2, G 1/2, PE 1,5 - 16 bar, Temp. -10 °C bis 50 °C, Kondensatablass HA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.02 bar |
| Series | FUTURA |
| Container | Metal container with sight tube |
| Filter element | Impregnated paper |
| Filter fineness | 0.3 µm |
| Thread | G 1/2 |
| Flow rate | 500 l/min |
| Condensate drain | semi-automatic |
| BG | 2 |
| A | 63 mm |
| B | 198.8 mm |
| C | 47.8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100173] Riegler Filter element 0.3 µm, Paper-Aluminium](/web/image/product.template/123322/image_128/%5B100173%5D%20Riegler%20Filter%20element%200.3%20%C2%B5m%2C%20Paper-Aluminium?unique=6aaae5a)
|
Type number: V 864/03 |
45.60 € | |
![[100136] Riegler Metal container incl. viewing tube, for »FUTURA«, Size 2](/web/image/product.template/123201/image_128/%5B100136%5D%20Riegler%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=2c20f77)
|
Type number: MF 12 |
38.28 € | |
