RIEGLER Battery regulator "SYNTESI", BG2, o. sockets, 0...4 bar, o. Mano.
Type number: 5620R220
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Battery regulator "SYNTESI", BG 2, without sockets, p1 = max. 13 bar, p2 = 0 ? 4 bar, T = -10 ? 50 °C, without pressure gauge
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Control range min. | 0 bar |
| Control range max. | 4 bar |
| BG | 2 |
| Input connection | without socket |
| Output connection | without socket |
| A | 60.5 mm |
| B | 139 mm |
| D | 70.5 mm |
| Flow_2 | 1000 Nl/min |
| Flow rate measurement 1 | at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Thread on front and back | G 1/4 |
| Series | Syntesi |
| Spring cover | Technopolymer |
| Flow_1 | 540 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[139983] RIEGLER Battery regulator "SYNTESI", BG1, G 1/4, 0...12 bar, o. Mano.](/web/image/product.template/277629/image_128/%5B139983%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.12%20bar%2C%20o.%20Mano.?unique=a4873e6)
|
Type number: 5612R262 |
33.03 € | |
![[139929] RIEGLER Battery regulator "SYNTESI", BG1, G 1/4, 0...2 bar, o. Mano.](/web/image/product.template/278622/image_128/%5B139929%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.2%20bar%2C%20o.%20Mano.?unique=ceb02e5)
|
Type number: 5612R202 |
33.03 € | |
![[139946] RIEGLER Battery regulator "SYNTESI", BG1, G 1/4, 0...4 bar, o. Mano.](/web/image/product.template/278623/image_128/%5B139946%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.4%20bar%2C%20o.%20Mano.?unique=a8a37c6)
|
Type number: 5612R222 |
33.03 € | |
![[139968] RIEGLER Battery regulator "SYNTESI", BG1, G 1/4, 0...8 bar, o. Mano.](/web/image/product.template/277628/image_128/%5B139968%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.8%20bar%2C%20o.%20Mano.?unique=5e0b04b)
|
Type number: 5612R242 |
33.03 € | |
![[139886] RIEGLER Battery regulator "SYNTESI", BG1, G 1/8, 0...12 bar, o. Mano.](/web/image/product.template/278621/image_128/%5B139886%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.12%20bar%2C%20o.%20Mano.?unique=f73e316)
|
Type number: 5611R261 |
33.03 € | |
![[139844] RIEGLER Battery regulator "SYNTESI", BG1, G 1/8, 0...2 bar, o. Mano.](/web/image/product.template/278618/image_128/%5B139844%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.2%20bar%2C%20o.%20Mano.?unique=b16c5af)
|
Type number: 5611R201 |
33.02 € | |
![[139846] RIEGLER Battery regulator "SYNTESI", BG1, G 1/8, 0...4 bar, o. Mano.](/web/image/product.template/278619/image_128/%5B139846%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.4%20bar%2C%20o.%20Mano.?unique=8c8b0ec)
|
Type number: 5611R221 |
33.03 € | |
![[139879] RIEGLER Battery regulator "SYNTESI", BG1, G 1/8, 0...8 bar, o. Mano.](/web/image/product.template/278620/image_128/%5B139879%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.8%20bar%2C%20o.%20Mano.?unique=c4c8050)
|
Type number: 5611R241 |
33.03 € | |
![[140023] RIEGLER Battery regulator "SYNTESI", BG1, G 3/8, 0...12 bar, o. Mano.](/web/image/product.template/277633/image_128/%5B140023%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.12%20bar%2C%20o.%20Mano.?unique=0001c16)
|
Type number: 5613R263 |
33.03 € | |
![[139995] RIEGLER Battery regulator "SYNTESI", BG1, G 3/8, 0...2 bar, o. Mano.](/web/image/product.template/277630/image_128/%5B139995%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.2%20bar%2C%20o.%20Mano.?unique=a65ca45)
|
Type number: 5613R203 |
33.03 € | |
![[140000] RIEGLER Battery regulator "SYNTESI", BG1, G 3/8, 0...4 bar, o. Mano.](/web/image/product.template/277631/image_128/%5B140000%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.4%20bar%2C%20o.%20Mano.?unique=fb30469)
|
Type number: 5613R223 |
33.03 € | |
![[140022] RIEGLER Battery regulator "SYNTESI", BG1, G 3/8, 0...8 bar, o. Mano.](/web/image/product.template/277632/image_128/%5B140022%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.8%20bar%2C%20o.%20Mano.?unique=41f4640)
|
Type number: 5613R243 |
33.03 € | |
![[139833] RIEGLER Battery regulator "SYNTESI", BG1, o. sockets, 0...2 bar, o. Mano.](/web/image/product.template/278614/image_128/%5B139833%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20sockets%2C%200--.2%20bar%2C%20o.%20Mano.?unique=a477be3)
|
Type number: 5610R200 |
30.81 € | |
![[139834] RIEGLER Battery regulator "SYNTESI", BG1, o. sockets, 0...4 bar, o. Mano.](/web/image/product.template/278615/image_128/%5B139834%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20sockets%2C%200--.4%20bar%2C%20o.%20Mano.?unique=51ca270)
|
Type number: 5610R220 |
30.81 € | |
![[139836] RIEGLER Battery regulator "SYNTESI", BG1, without sockets, 0...12 bar, without mano.](/web/image/product.template/278617/image_128/%5B139836%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%200--.12%20bar%2C%20without%20mano.?unique=75580fe)
|
Type number: 5610R260 |
30.81 € | |
![[139835] RIEGLER Battery regulator "SYNTESI", BG1, without sockets, 0...8 bar, without mano.](/web/image/product.template/278616/image_128/%5B139835%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%200--.8%20bar%2C%20without%20mano.?unique=dbd6856)
|
Type number: 5610R240 |
30.81 € | |
![[140248] RIEGLER Battery regulator "SYNTESI", BG2, G 1, 0...12 bar, o. Mano.](/web/image/product.template/277653/image_128/%5B140248%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.12%20bar%2C%20o.%20Mano.?unique=4b704ed)
|
Type number: 5626R266 |
61.44 € | |
![[140208] RIEGLER Battery regulator "SYNTESI", BG2, G 1, 0...2 bar, o. Mano.](/web/image/product.template/277650/image_128/%5B140208%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.2%20bar%2C%20o.%20Mano.?unique=baeae55)
|
Type number: 5626R206 |
61.44 € | |
![[140245] RIEGLER Battery regulator "SYNTESI", BG2, G 1, 0...4 bar, o. Mano.](/web/image/product.template/277651/image_128/%5B140245%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.4%20bar%2C%20o.%20Mano.?unique=f753400)
|
Type number: 5626R226 |
61.44 € | |
![[140247] RIEGLER Battery regulator "SYNTESI", BG2, G 1, 0...8 bar, o. Mano.](/web/image/product.template/277652/image_128/%5B140247%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.8%20bar%2C%20o.%20Mano.?unique=5148793)
|
Type number: 5626R246 |
61.44 € | |
![[140129] RIEGLER Battery regulator "SYNTESI", BG2, G 1/2, 0...12 bar, o. Mano.](/web/image/product.template/277645/image_128/%5B140129%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.12%20bar%2C%20o.%20Mano.?unique=31e7cfa)
|
Type number: 5624R264 |
52.73 € | |
![[140087] RIEGLER Battery regulator "SYNTESI", BG2, G 1/2, 0...2 bar, o. Mano.](/web/image/product.template/277642/image_128/%5B140087%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.2%20bar%2C%20o.%20Mano.?unique=7f8c988)
|
Type number: 5624R204 |
52.73 € | |
![[140088] RIEGLER Battery regulator "SYNTESI", BG2, G 1/2, 0...4 bar, o. Mano.](/web/image/product.template/277643/image_128/%5B140088%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.4%20bar%2C%20o.%20Mano.?unique=90f8535)
|
Type number: 5624R224 |
52.73 € | |
![[140098] RIEGLER Battery regulator "SYNTESI", BG2, G 1/2, 0...8 bar, o. Mano.](/web/image/product.template/277644/image_128/%5B140098%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.8%20bar%2C%20o.%20Mano.?unique=593b9a1)
|
Type number: 5624R244 |
52.73 € | |
![[140205] RIEGLER Battery regulator "SYNTESI", BG2, G 3/4, 0...12 bar, o. Mano.](/web/image/product.template/277649/image_128/%5B140205%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.12%20bar%2C%20o.%20Mano.?unique=ea517cd)
|
Type number: 5625R265 |
61.44 € | |
![[140198] RIEGLER Battery regulator "SYNTESI", BG2, G 3/4, 0...2 bar, o. Mano.](/web/image/product.template/277646/image_128/%5B140198%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.2%20bar%2C%20o.%20Mano.?unique=e0e5e52)
|
Type number: 5625R205 |
61.44 € | |
![[140200] RIEGLER Battery regulator "SYNTESI", BG2, G 3/4, 0...4 bar, o. Mano.](/web/image/product.template/277647/image_128/%5B140200%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.4%20bar%2C%20o.%20Mano.?unique=804549d)
|
Type number: 5625R225 |
61.44 € | |
![[140203] RIEGLER Battery regulator "SYNTESI", BG2, G 3/4, 0...8 bar, o. Mano.](/web/image/product.template/277648/image_128/%5B140203%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.8%20bar%2C%20o.%20Mano.?unique=a7c4dd8)
|
Type number: 5625R245 |
61.44 € | |
![[140058] RIEGLER Battery regulator "SYNTESI", BG2, G 3/8, 0...12 bar, o. Mano.](/web/image/product.template/277641/image_128/%5B140058%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.12%20bar%2C%20o.%20Mano.?unique=77f44a0)
|
Type number: 5623R263 |
52.73 € | |
![[140031] RIEGLER Battery regulator "SYNTESI", BG2, G 3/8, 0...2 bar, o. Mano.](/web/image/product.template/277638/image_128/%5B140031%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.2%20bar%2C%20o.%20Mano.?unique=649d288)
|
Type number: 5623R203 |
52.73 € | |
![[140032] RIEGLER Battery regulator "SYNTESI", BG2, G 3/8, 0...4 bar, o. Mano.](/web/image/product.template/277639/image_128/%5B140032%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.4%20bar%2C%20o.%20Mano.?unique=10fb1b7)
|
Type number: 5623R223 |
52.73 € | |
![[140033] RIEGLER Battery regulator "SYNTESI", BG2, G 3/8, 0...8 bar, o. Mano.](/web/image/product.template/277640/image_128/%5B140033%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.8%20bar%2C%20o.%20Mano.?unique=882b5f5)
|
Type number: 5623R243 |
52.73 € | |
![[140026] RIEGLER Battery regulator "SYNTESI", BG2, o. sockets, 0...2 bar, o. Mano.](/web/image/product.template/277634/image_128/%5B140026%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20sockets%2C%200--.2%20bar%2C%20o.%20Mano.?unique=a2ff474)
|
Type number: 5620R200 |
41.52 € | |
![[140030] RIEGLER Battery regulator "SYNTESI", BG2, without sockets, 0...12 bar, without mano.](/web/image/product.template/277637/image_128/%5B140030%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%200--.12%20bar%2C%20without%20mano.?unique=0a4c09a)
|
Type number: 5620R260 |
41.52 € | |
![[140028] RIEGLER Battery regulator "SYNTESI", BG2, without sockets, 0...8 bar, without mano.](/web/image/product.template/277636/image_128/%5B140028%5D%20RIEGLER%20Battery%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%200--.8%20bar%2C%20without%20mano.?unique=8bf1a51)
|
Type number: 5620R240 |
41.52 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101224] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 6 bar/87 psi](/web/image/product.template/140660/image_128/%5B101224%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%206%20bar-87%20psi?unique=f8433f9)
|
Type number: 216-KD |
6.25 € | |
![[101676] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 6 bar/87 psi](/web/image/product.template/169648/image_128/%5B101676%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%206%20bar-87%20psi?unique=c908485)
|
Type number: 205-KD |
6.25 € | |
![[144691] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 3/8, incl. 2 screws](/web/image/product.template/277873/image_128/%5B144691%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%20incl.%202%20screws?unique=192358d)
|
Type number: 9210011 |
5.77 € | |
![[144692] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 1/2, incl. 2 screws](/web/image/product.template/277874/image_128/%5B144692%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%20incl.%202%20screws?unique=b01ebda)
|
Type number: 9210012 |
5.77 € | |
![[144693] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 3/4, incl. 2 screws](/web/image/product.template/277875/image_128/%5B144693%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%20incl.%202%20screws?unique=6fbe7d8)
|
Type number: 9210013 |
10.13 € | |
![[144694] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 1, incl. 2 screws](/web/image/product.template/277876/image_128/%5B144694%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%20incl.%202%20screws?unique=586db44)
|
Type number: 9210014 |
10.13 € | |
![[144696] RIEGLER Connecting nipple set "SYNTESI", BG 2](/web/image/product.template/279864/image_128/%5B144696%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%202?unique=93949b9)
|
Type number: 9210010 |
6.79 € | |

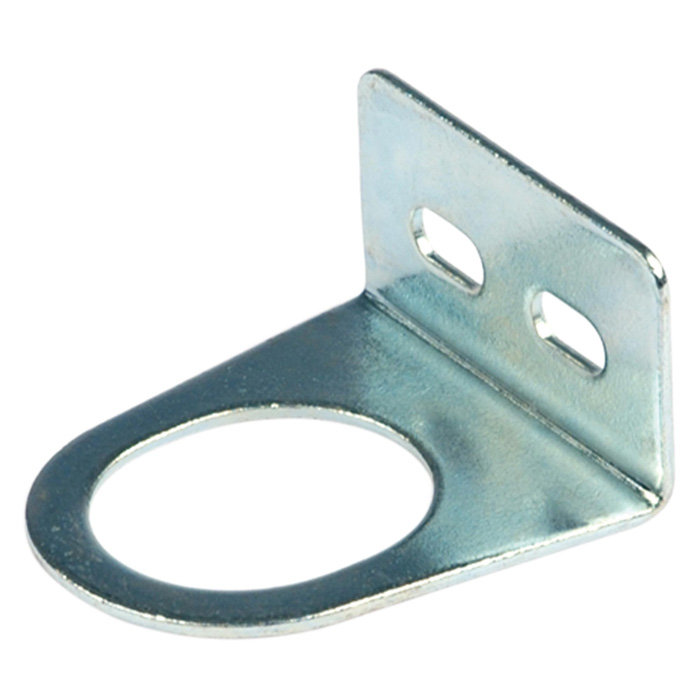

![[145469] RIEGLER Mounting bracket, for "SYNTESI" BG 2, etc.](/web/image/product.template/279225/image_128/%5B145469%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20%22SYNTESI%22%20BG%202%2C%20etc.?unique=24d0f84)
|
Type number: 9400701 |
4.47 € | |

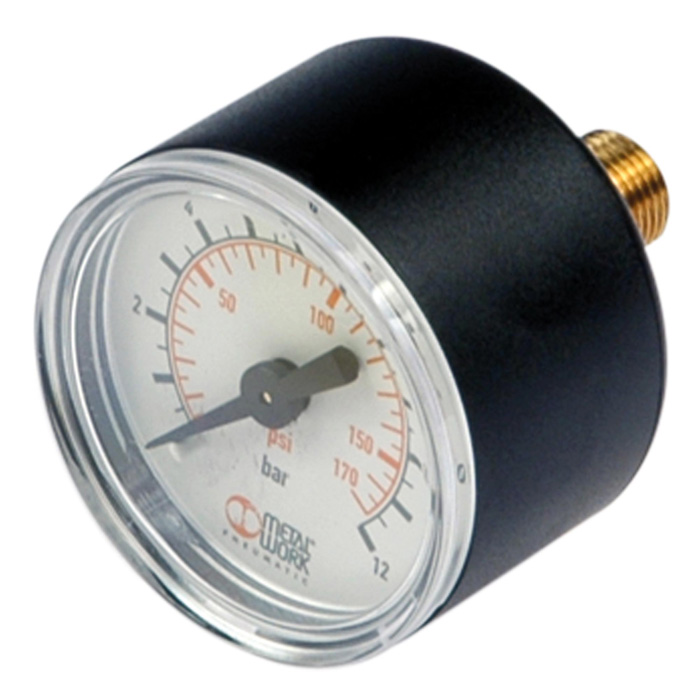

![[145474] RIEGLER Metal Work pressure gauge, G 1/4 rear, 0-12 bar, Ø63](/web/image/product.template/279230/image_128/%5B145474%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-4%20rear%2C%200-12%20bar%2C%20%C3%9863?unique=099fb5c)
|
Type number: 9900101 |
13.08 € | |

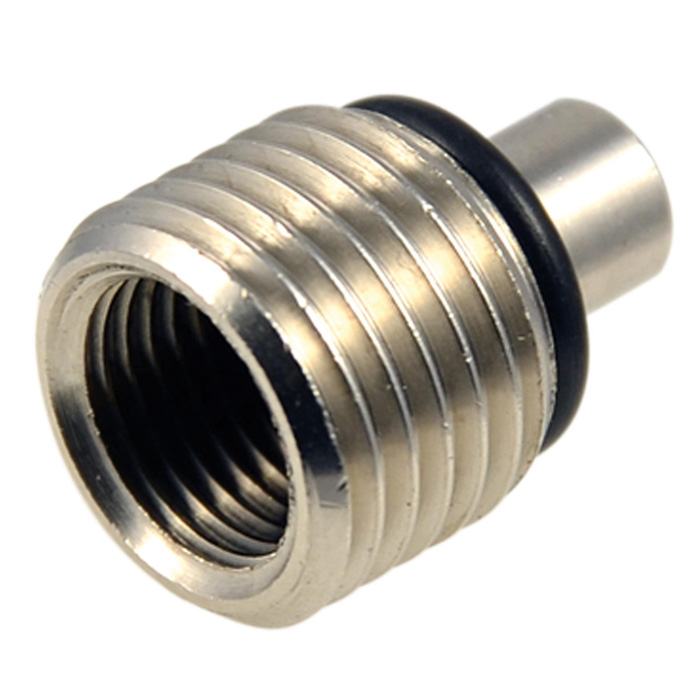

![[145477] RIEGLER Adapter for pressure gauge, G 1/4 AG, G 1/8 IG](/web/image/product.template/279233/image_128/%5B145477%5D%20RIEGLER%20Adapter%20for%20pressure%20gauge%2C%20G%201-4%20AG%2C%20G%201-8%20IG?unique=d95a71a)
|
Type number: 9210005 |
2.48 € | |
![[145503] RIEGLER Connecting element 90°, "SYNTESI", BG 2](/web/image/product.template/279259/image_128/%5B145503%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%202?unique=babb672)
|
Type number: 9210019 |
6.39 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=39be05a)
|
Type number: 9210006 |
6.47 € | |
![[145508] RIEGLER SYNTESI" fixing screw, BG 2](/web/image/product.template/279264/image_128/%5B145508%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%202?unique=7a906ec)
|
Type number: 9210031 |
0.76 € | |
![[145509] RIEGLER SYNTESI" padlock](/web/image/product.template/279366/image_128/%5B145509%5D%20RIEGLER%20SYNTESI%22%20padlock?unique=7aa685f)
|
Type number: 9062401 |
12.10 € | |
![[145659] RIEGLER SYNTESI" mounting bracket, BG 2, standard and anti-corrosion](/web/image/product.template/279316/image_128/%5B145659%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%202%2C%20standard%20and%20anti-corrosion?unique=cb14de3)
|
Type number: 9200717X |
15.47 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=de9fd83)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[111410] RIEGLER Locking screw, Hexagonal socket 6 mm, G 1/4, nickel-plated brass](/web/image/product.template/183331/image_128/%5B111410%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%206%20mm%2C%20G%201-4%2C%20nickel-plated%20brass?unique=81f639b)
|
Type number: 233.03-N |
0.62 € | |
![[145646] RIEGLER Regulator attachment (bell) "SYNTESI", BG 2, 0 - 4 bar](/web/image/product.template/279303/image_128/%5B145646%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%202%2C%200%20-%204%20bar?unique=093cad2)
|
Type number: 9210221 |
25.05 € | |
![[145638] RIEGLER SYNTESI" spring, BG 2, 0 - 4 bar](/web/image/product.template/279295/image_128/%5B145638%5D%20RIEGLER%20SYNTESI%22%20spring%2C%20BG%202%2C%200%20-%204%20bar?unique=0471460)
|
Type number: 9210196 |
4.75 € | |

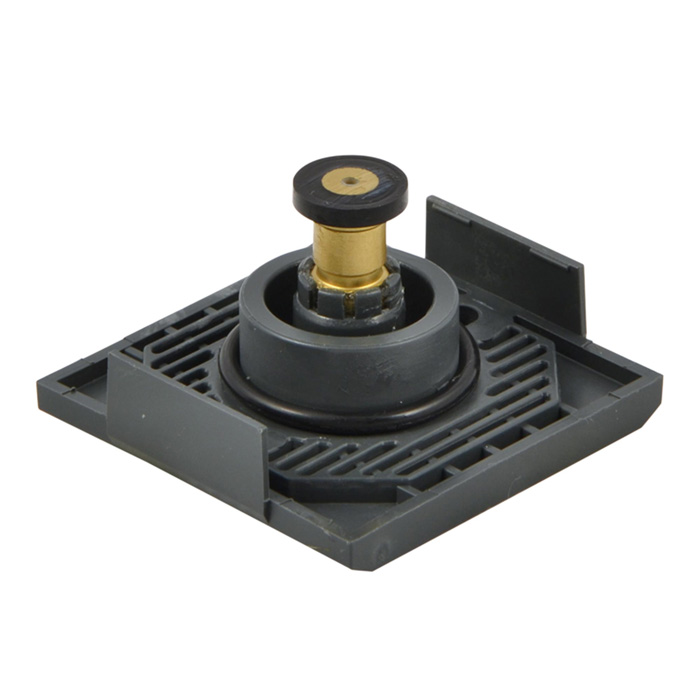

![[145650] RIEGLER Valve seat for pressure regulator "SYNTESI", BG 2](/web/image/product.template/279307/image_128/%5B145650%5D%20RIEGLER%20Valve%20seat%20for%20pressure%20regulator%20%22SYNTESI%22%2C%20BG%202?unique=7d7bfc0)
|
Type number: 9210230 |
9.04 € | |
