RIEGLER Battery regulator "SYNTESI", BG2, without sockets, 0...8 bar, without mano.
Type number: 5620R240
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Battery regulator "SYNTESI" made of technopolymer, for compressed air preparation, 0 bar - Type 5620R240
The RIEGLER battery regulator "SYNTESI", BG2, without sockets, 0...8 bar, without mano. reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of technopolymer with NBR seals. The control range extends from 0 bar to 8 bar with a maximum inlet pressure of 13 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Control range min. | 0 bar |
| Control range max. | 8 bar |
| BG | 2 |
| Input connection | without socket |
| Output connection | without socket |
| A | 60.5 mm |
| B | 139 mm |
| D | 70.5 mm |
| Flow 2 | 1000 Nl/min |
| Flow rate measurement 1 | at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Thread on front and back | G 1/4 |
| Series | Syntesi |
| Spring cover | Technopolymer |
| Flow 1 | 540 Nl/min |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[111410] RIEGLER Locking screw, Hexagonal socket 6 mm, G 1/4, nickel-plated brass](/web/image/product.template/183331/image_128/%5B111410%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%206%20mm%2C%20G%201-4%2C%20nickel-plated%20brass?unique=4ea5370)
|
Type number: 233.03-N |
0.62 € | |
![[145647] RIEGLER Regulator attachment (bell) "SYNTESI", BG 2, 0 - 8 bar](/web/image/product.template/279304/image_128/%5B145647%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%202%2C%200%20-%208%20bar?unique=1be8047)
|
Type number: 9210222 |
23.48 € | |
![[145639] RIEGLER SYNTESI" spring, BG 2, 0 - 8 bar](/web/image/product.template/279296/image_128/%5B145639%5D%20RIEGLER%20SYNTESI%22%20spring%2C%20BG%202%2C%200%20-%208%20bar?unique=beecac2)
|
Type number: 9210197 |
3.15 € | |

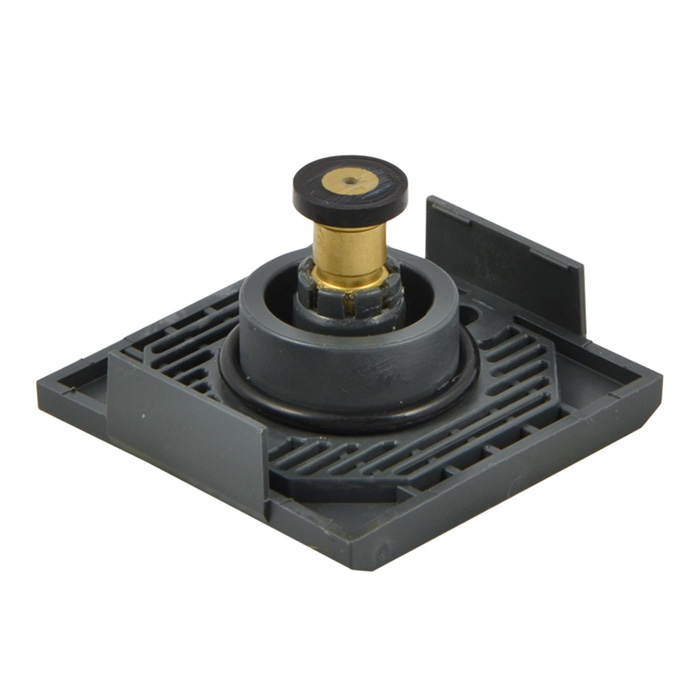

![[145650] RIEGLER Valve seat for pressure regulator "SYNTESI", BG 2](/web/image/product.template/279307/image_128/%5B145650%5D%20RIEGLER%20Valve%20seat%20for%20pressure%20regulator%20%22SYNTESI%22%2C%20BG%202?unique=209895c)
|
Type number: 9210230 |
9.04 € | |
