RIEGLER Swing safety coupling I.D. 8, ISO 6150 C, Steel, G 1/4 ET
Type number: 425.11-SCH
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Swivel safety coupling made of steel, QPQ treated, for compressed air supply, G 1/4 AG - Type 425.11-SCH
The RIEGLER swivel safety coupling NW 8, ISO 6150 C, steel, G 1/4 AG separates the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of steel, QPQ treated with NBR seals. The temperature range is between -20 °C and 100 °C. Connection thread G 1/4 AG - suitable for common industry standards. Suitable for compressed air, gases. The flow rate is 2300 l/min (air) (at 6 bar and Δp = 0.5 bar). Maximum safety due to controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 2300 l/min (air) |
| Sleeve | Zinc die-cast, nickel-plated, red rubber-coated |
| Threaded piece | Galvanized steel |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 20 mm |
| NW | 8 |
| Length | 70 mm |
| Connection | G 1/4 AG |
| Connector profile | according to ISO 6150 C |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141687] RIEGLER Swing safety coupling I.D. 8, ISO 6150 C, Steel, G 1/2 ET](/web/image/product.template/208302/image_128/%5B141687%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%208%2C%20ISO%206150%20C%2C%20Steel%2C%20G%201-2%20ET?unique=acfb3cb)
|
Type number: 425.13-SCH |
29.69 € | |
![[141686] RIEGLER Swing safety coupling I.D. 8, ISO 6150 C, Steel, G 3/8 ET](/web/image/product.template/208301/image_128/%5B141686%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%208%2C%20ISO%206150%20C%2C%20Steel%2C%20G%203-8%20ET?unique=dce879b)
|
Type number: 425.12-SCH |
29.69 € | |

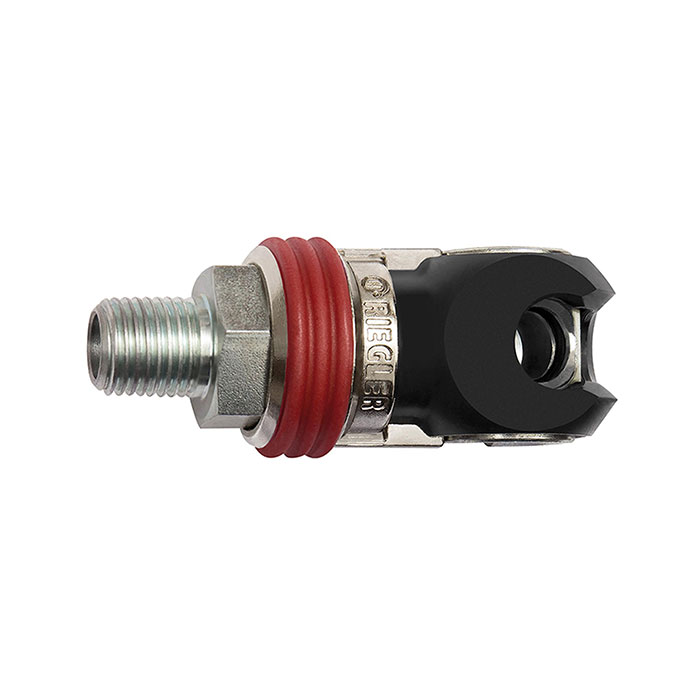

![[141690] RIEGLER Swing safety coupling I.D. 8, ISO 6150 C, Steel, NPT 1/2 ET](/web/image/product.template/208305/image_128/%5B141690%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%208%2C%20ISO%206150%20C%2C%20Steel%2C%20NPT%201-2%20ET?unique=9f4884c)
|
Type number: 425.13-SCH-NPT |
29.69 € | |
![[141688] RIEGLER Swing safety coupling I.D. 8, ISO 6150 C, Steel, NPT 1/4 ET](/web/image/product.template/208303/image_128/%5B141688%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%208%2C%20ISO%206150%20C%2C%20Steel%2C%20NPT%201-4%20ET?unique=3f48456)
|
Type number: 425.11-SCH-NPT |
29.69 € | |
![[141689] RIEGLER Swing safety coupling I.D. 8, ISO 6150 C, Steel, NPT 3/8 ET](/web/image/product.template/208304/image_128/%5B141689%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%208%2C%20ISO%206150%20C%2C%20Steel%2C%20NPT%203-8%20ET?unique=0ebd0a2)
|
Type number: 425.12-SCH-NPT |
29.69 € | |
